Road 240S Carbon Wheels

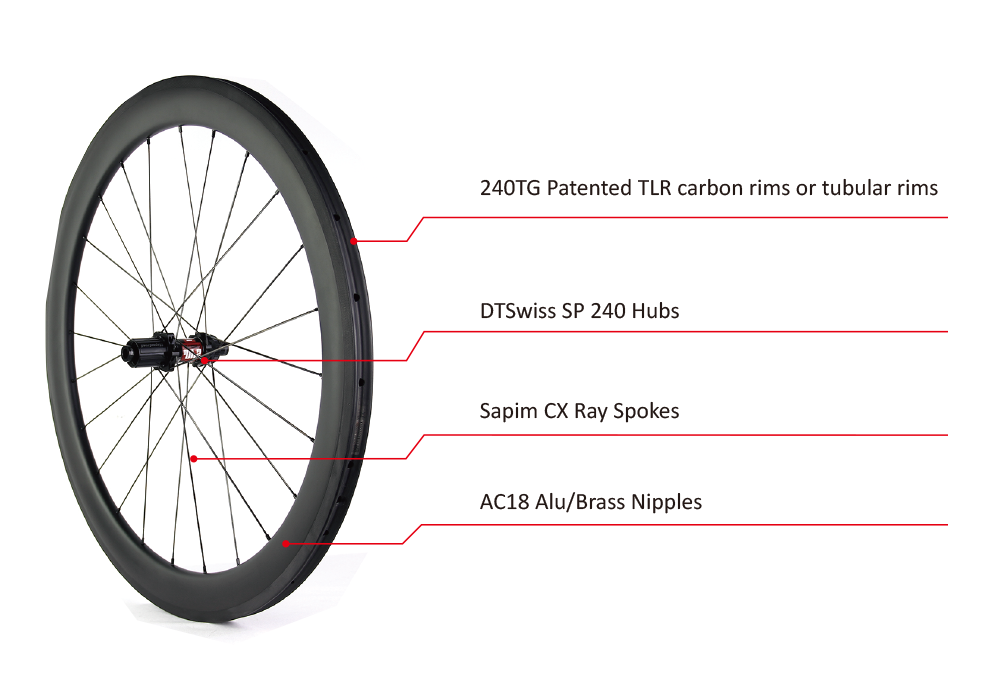

Original DT swiss 240s hubs Rachet 18T, 36T, 54T

Original Sapim aero CX-RAY spokes

Customized wheels built by hand and precisely trued by Holland Mechanics

Various rims profile 33/38/44/50/55/88mm tubular and HTG240 Clincher TLR.

Road TLR carbon rims with patented HTG240 resin formula and special layup design, less than 0.5% braking failure;

Easy tire mount and tubeless ready design

Accept OEM customized logo painting.





 The Top High End Road AERO RACING Wheels





Key Features  The Most High End Road Wheels

  Road TLR carbon rims with patented resin formula, less than 0.1% braking failure

  Patented layup schedule to allow as high as 180psi tire pressure

  Easy tire mount and tubeless ready design

  Aerodynamic profile design

  Professional high end carbon racing wheels





  road carbon wheel



WHEELS SPECS




Rim

700C RIM BRAKE TUBULAR FOR AERO&PERFORMANCE ROAD BIKES                 33/44/55/88 mm Tubular Carbon Rims
700C HTG RIM BRAKE CLINCHER FOR AERO&PERFORMANCE ROAD BIKES        33/44/55/88 mm Clincher Carbon Rims


Hub

240S Straightpull hubs
Front 20h 5/100mm QR                   Rear  24h 5/130mm QR Shimano 11S, Campy 11S

Brake

Rim Brake

Spoke

PSR1420/CX-Ray 4.2g/PC

Nipple

External/internal alu nipples or brass nipples

Service Kit

Skewers & brake pads

Max.system weight

110-130 kg

Model (weight with CX Ray Spokes)

                                                                                                                                                                All Weight is w/t 5% tolerance


240S-WTD33T (1186g)

240S-WTD44T (1266g)

240S-WTD55T (1326g)

240S-WTD88T (1586g)

240S-HTG33C (1486g)

240S-HTG44C (1566g)

240S-HTG55C (1626g)

240S-HTG88C (1886g)





Hand-built High Precision Carbon Wheels






Wheel Building Technology

All wheels are built in high precision machines via spoke tension trueing by Holland Mechanics Pro Truer.
The perfect allocation of spoke tension in every single spoke in
combination with a comparatively high spoke tension gives many advantages:

- higher radial, lateral and torsional stiffness
- less spoke tension loss over time
- longer durability
- less maintanance efforts like retrueing





Wheel roundness tolerance: ≤0.3mm
Wheel lateral tolerance: ≤0.3mm
Wheel center tolerance: ≤0.3mm
