Road DB Disc Brake Road Carbon Wheels

Basic level straight pull TPI bearings hubs and aero spokes.

Rims profile 33/38/44/50/55 tubular/clincher TLR

Asymmetric rim design for better spoke tension balance and better wheel stiffness.

Mid-hooked bead design to improve strength and for higher tire pressure and safty tire mounting.

Easy tire mount and tubeless ready design

100% built by hand and precisely trued by Holland Mechanics

Accept customized wheels-built&customized branding.




DB Disc Brake ROAD Carbon Wheels



Key Features  The Basic Disc Brake Road Wheels

Road TLR disc brake carbon rims with light weight

Special layup schedule with 60% T700 & 40% T800

Easy tire mount and tubeless ready design

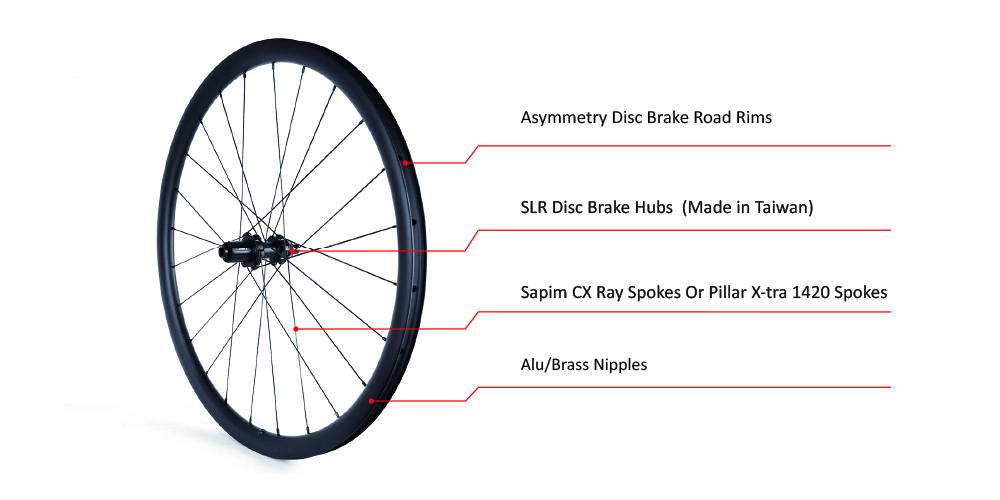

Asymmetry Disc Brake Road Rims

High end disc brake carbon racing wheels


WHEELS SPECS



Rim

700C ASD DISC BRAKE TUBULAR FOR ENDURACE|GRAVEL ROAD BIKES          33/44/55 mm Tubular Carbon Rims
700C ASD DISC BRAKE CLINCHER FOR ENDURACE|GRAVEL ROAD BIKES        33/44/55 mm Clincher Carbon Rims


Hub

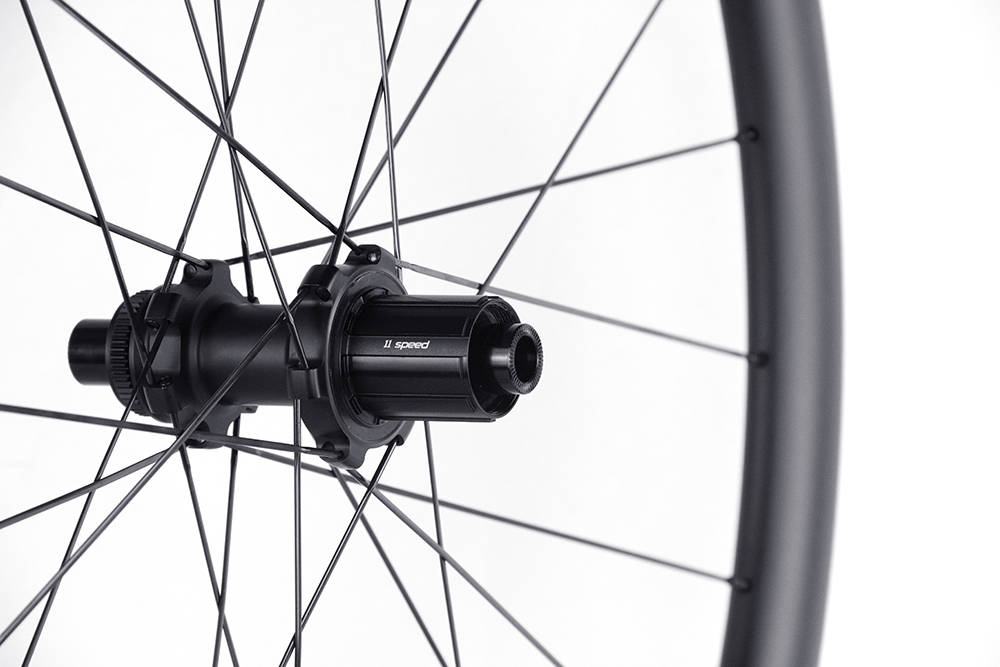

SLR DB Straightpull hubs
Front 24h 12/100mm AT                     Rear 24h 12/142mm AT Shimano 11S, Campy 11S

Brake

Center Lock System

Spoke

PSR1420/CX-Ray 4.2g/PC

Nipple

External/internal alu nipples or brass nipples

Service Kit

N/A

Max.system weight

110-130 kg

Model (weight with CX Ray Spokes)

All Weight is w/t 5% tolerance


SLR-ASD33T-DISC (1242g)

SLR-ASD44T-DISC (1362g)

SLR-ASD55T-DISC (1402g)

SLR-ASD33C-DISC (1502g)

SLR-ASD44C-DISC (1582g)

SLR-ASD55C-DISC (1642g)



Hand-built High Precision Carbon Wheels






Wheel Building Technology

All wheels are built in high precision machines via spoke tension trueing by Holland Mechanics Pro Truer.
The perfect allocation of spoke tension in every single spoke in
combination with a comparatively high spoke tension gives many advantages:

- higher radial, lateral and torsional stiffness
- less spoke tension loss over time
- longer durability
- less maintanance efforts like retrueing





Wheel roundness tolerance: ≤0.3mm
Wheel lateral tolerance: ≤0.3mm
Wheel center tolerance: ≤0.3mm
