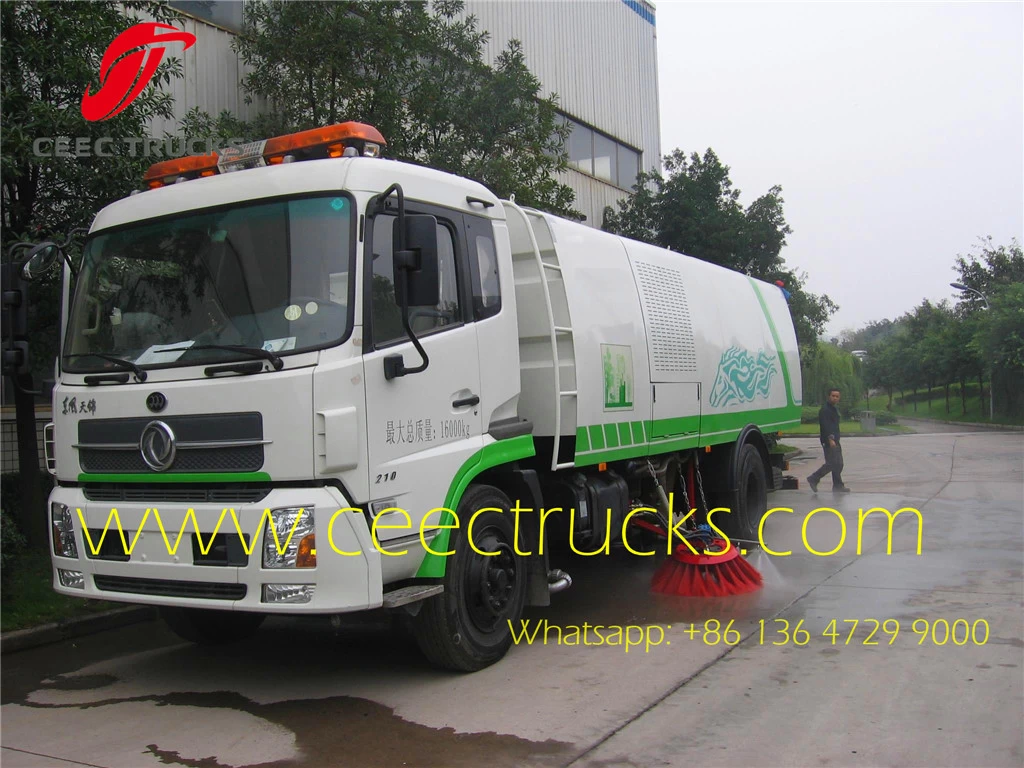

Road Sweeper Truck 9CBM Dongfeng

Dongfeng 9m³ road sweeper truck, dongfeng brand chassis for LHD and RHD model, stainless steel material tank body with dust tank 6CBM and clean water tank 3CBM. 4-brush sweeping device for Phillippine and Pakistan



2016 newly designed and produced Dongfeng 9CBM Road sweeper Truck can be widely used in sweeping city roads, highways, constructionsites, overhead roads, bridges, squares, airports as well as docks with asphalt concrete and cement concrete road surface. And being export to Phillippine, Nigeri, Myanmar, etc



Dongfeng 9CBM Vacuum Road Sweeper on sale



CEEC road sweeper trucks 9CBM capacity



Advanced features for CEEC produced road sweeper:

1,Hghly wear-resistant automatic clutch drives the special fan to control the starting and stopping of the engine.

2,The imported hydraulic components were intergrated folded and conveniently controlled by the electrical and hydraulic system in the cab.

3,stainless steel water tank and material tank are combined and no remained water in the water tank when working .

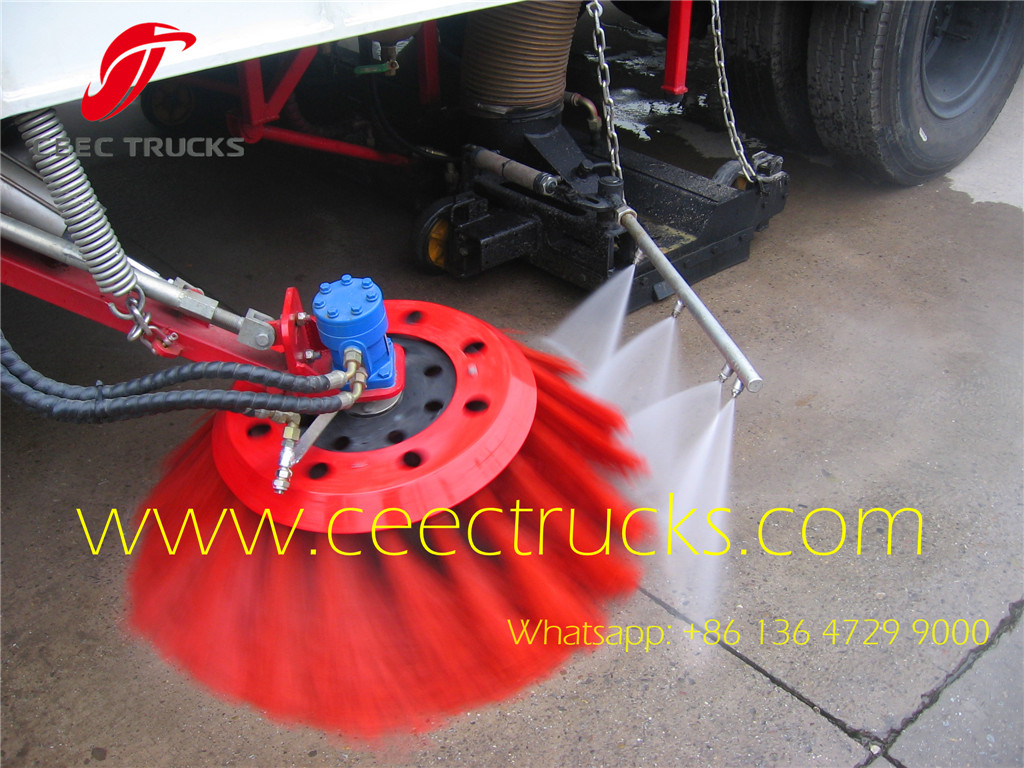

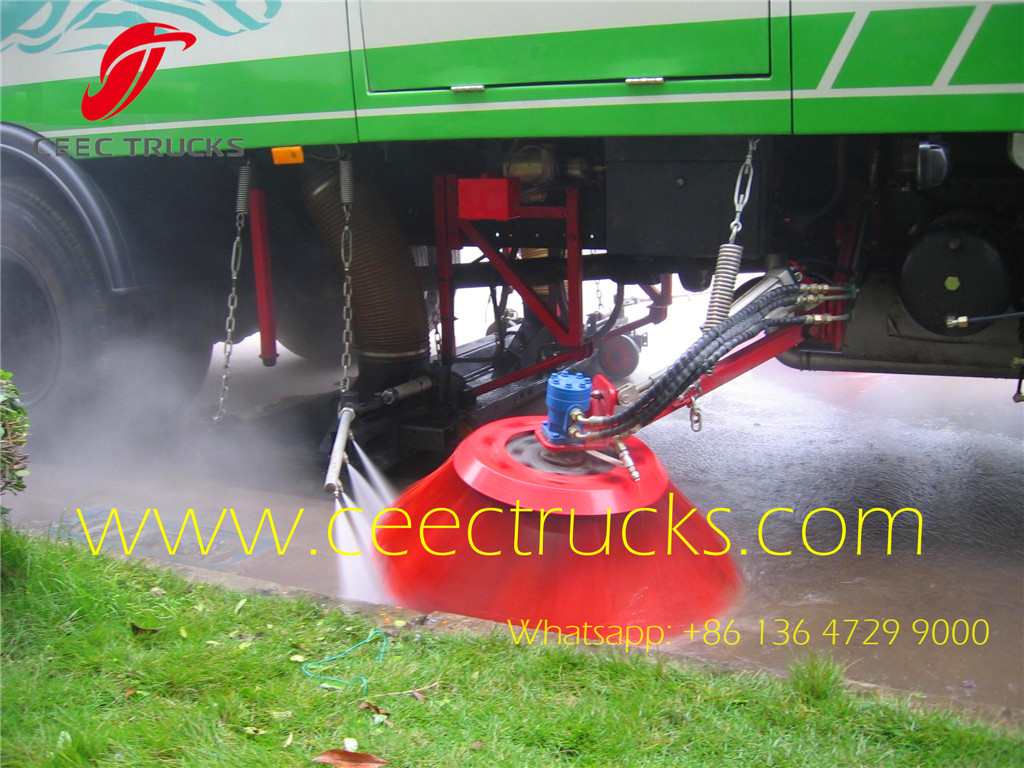

4,The sweeping device are hydraulic controlled and can avoid inter collision. Automaticlly.

5,the postposition floating type suction nozzle have self-adjustment function to adapt to the bad road condition .And it is easy to debug and maintain..

6,the adjustable mist spray device can eliminate the second pollution as well as saving water.

7,streamline appearance ,low oil consumption,low noise.



road sweeper truck drawing



CEEC TRUCKS 2016 produced road sweeper trucks, including beiben heavy type road sweeper trucks,dongfeng vacuum sweeping trucks, ISUZU road Sweeper with lowest price are widely export Myanmar, Phillippine, Nigeria, Ecuador, Kenya and Zambia, etc.


The Road sweeper heart Auxiliary use Japanese technology ISUZU 57KW engine with top performance; Whole tank including 6CBM dust bin tank and 2CBM cleaning water tank, all use stainless steel as material, longly extend the service life. Standard 4-brush sweeping system, each side has two, with sweeping width can be up to 3.2m.

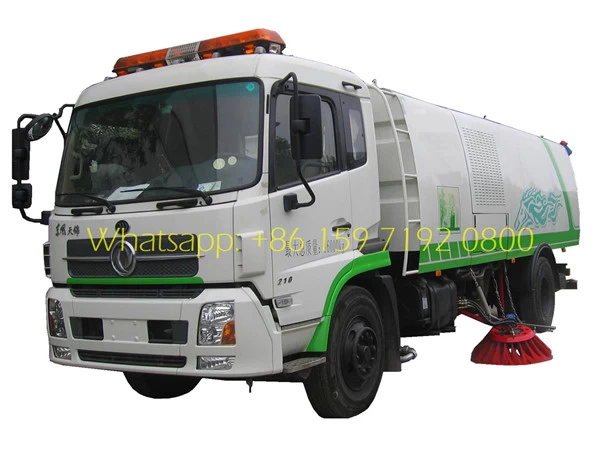

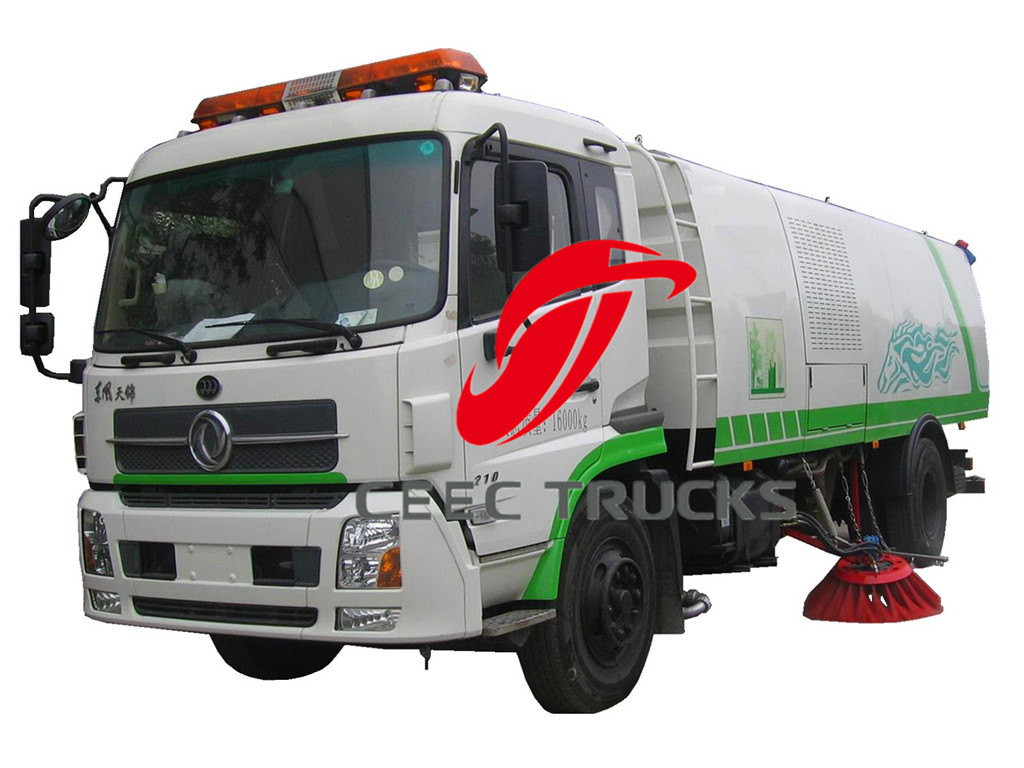

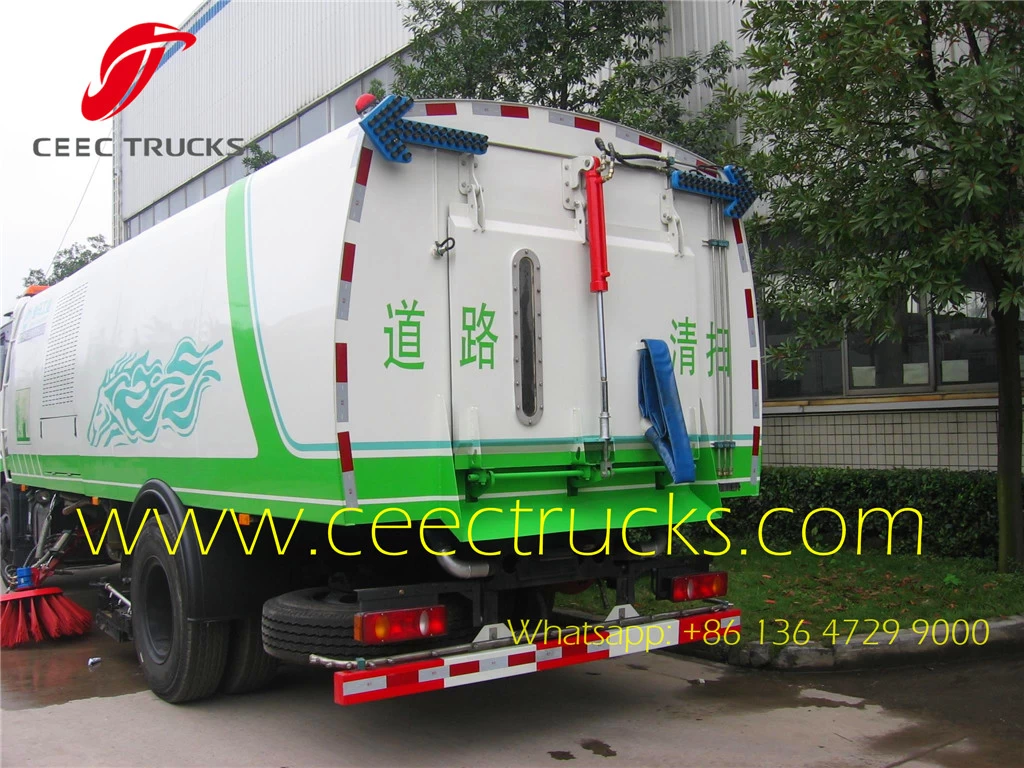

Dongfeng 9000 liters road sweeper trucks low price sale



Dongfeng 9000 liters road sweeper trucks low price sale



Dongfeng 9000 liters road sweeper trucks low price sale



Dongfeng 9000 liters road sweeper trucks low price sale



Similar Key Words: Dongfeng road sweeper, ISUZU road sweeper truck, beiben street sweeping vehicle, road cleaning truck, street cleaning vehicle, street sweeper, sweeper and cleaning truck, municipal vehicle, road sweeper, cleaning truck



Vehicle model

CEEC5160GSL

Tank cubage (cbm)

6 m3 dust bin & 3 m3 clean water tank

Chassis model

DFL1120

Maximum total mass

14490kg

Curb weight

8995kg

Load weight

5300kg

Effective volume

10-12m³

Dimensions

7650X2460X3000  (mm)

Garbage box capacity

7.2 m3 dustbin,3.5 m3 clean water tank

Wheelbase

4700 mm

Cab

2 or 3 passengers

Tyre Specfication

10.00-20

Paint

Automative metallic paint

Equipment

1> Equipped with 4 sweeping brush,  Cummins 140hp deputy engine; Italian motor; French control switch; Joint venture solenoid valve group; Maintenance-free self-separate clutch; Maintenance-free fan; Stainless steel water tank and dustbin; Rear LED arrow lights, manual pump for emergency system.
2> Maximum sweeping width 3.2 m, inhaled sizeφ120 mm
3> Optional: monitoring, sprinkler function, self-cleaning function for dustbin.

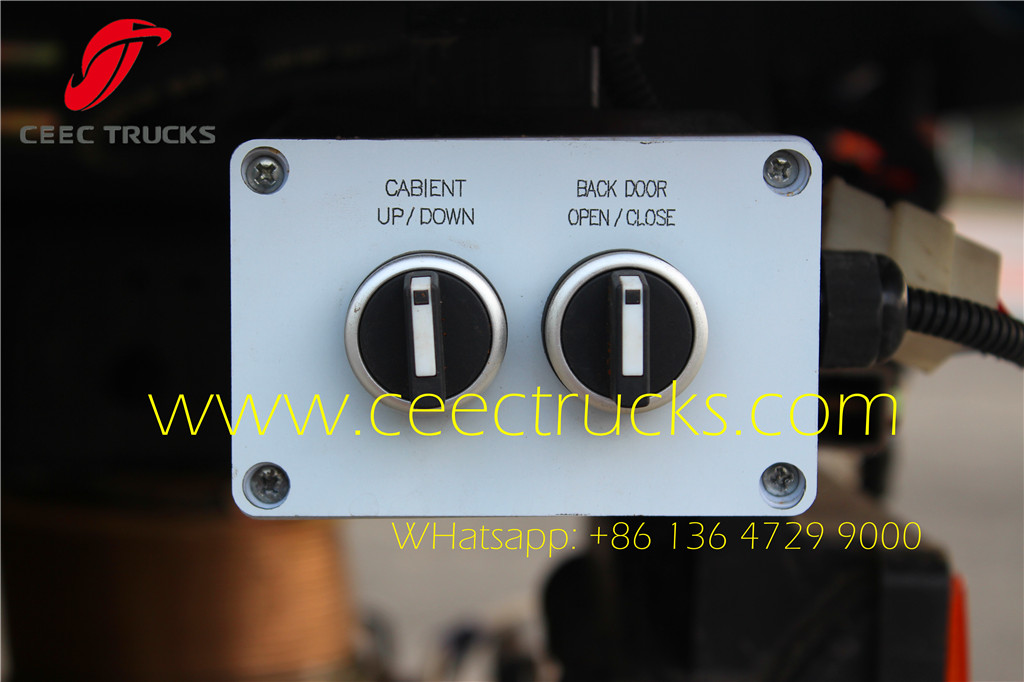

CEEC road sweeper trucks English control box



CEEC road sweeper trucks English control box

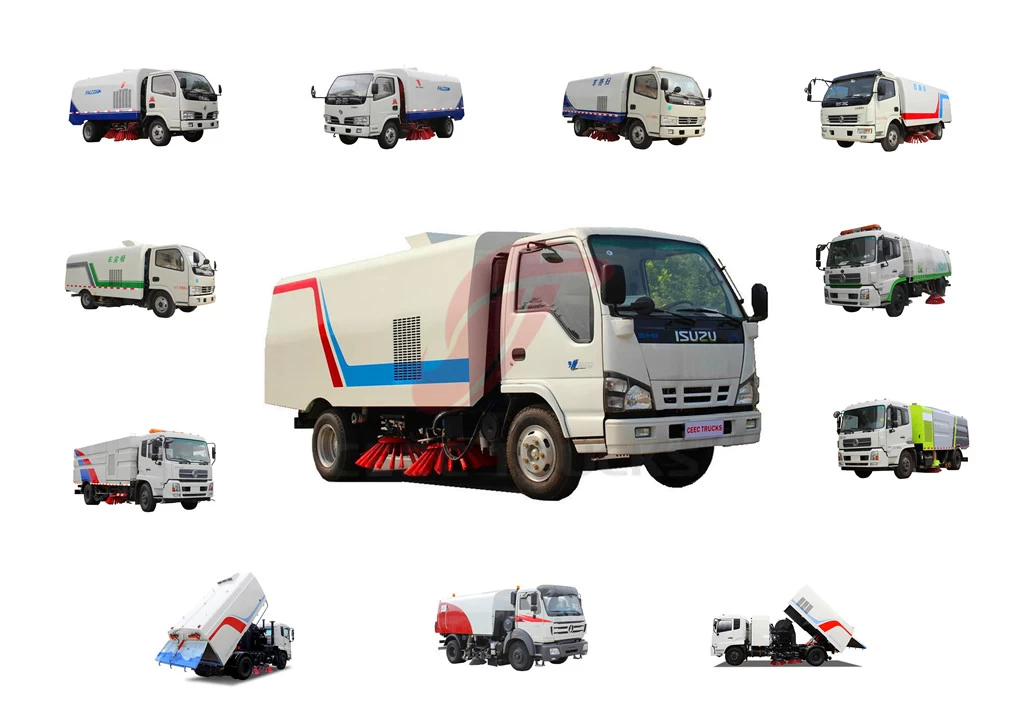

2016 best selling model environmental protection truck hot sale
