Road Sweeper Washer Trcuk Dongfeng
Function:
Road Sweeper Washer DongFeng (also called as Dust cleaner road sweeper truck, road cleaning sweeper truck, street sweeping vehicle, street cleaning equipment, vacuum road sweeper, street sweeper, hydraulic road sweeper, brush road sweeper, road brush sweeper truck) This sweeper trukc has a simple and proper structure with four brushes in the middle and a suction port at the back part of the vehicle. The efficient suction system makes low noises when the vehicle is working.
Specifications:
Road Washer Sweeper Truck DongFeng
(7 CBM dustbin + 3.5 CBM water tank)
|
General
|
Vehicle Brand
|
POWERSTAR
|
Chassis Brand
|
Dongfeng
|
Overall Dimension
|
8720 * 2500 * 2980 mm
|
GVW / Kerb Weight
|
16,000kg / 10,890kg
|
Cab
|
Cab Capacity
|
3 persons allowed
|
Air Conditioner
|
Heating/cooling air conditioner
|
Engine
|
Fuel Type
|
Diesel
|
Engine Brand
|
Cummins
|
Power
|
190 HP
|
Displacement
|
5900 ml
|
Emission Standard
|
Euro 3
|
Chassis
|
Drive Type
|
4X2, (left hand drive or Right hand drive)
|
Transmission
|
6 speed levers with 1 reverse
|
Wheelbase/No. of axle
|
4500 mm / 2
|
Tire Specification
|
7.00-16
|
Tire Number
|
6 tires and 1 spare tire
|
Max Speed
|
95 km/h
|
Paint
|
Metallic paint
|
Superstructure
|
Dustbin Capacity
|
7 CBM
|
Dustbin Material
|
Stainless Steel
|
Water Tank volume
|
3,500 Liters
|
Water Tank Material
|
Stainless Steel
|
Sweeping Capacity
|
80,000 m³/h
|
Sweeping Speed
|
3-25 km/h
|
Max Sweeping Width
|
3500 mm
|
Brooms
|
2 sets at each side
|
Sweeping efficiency
|
≥96%
|
Garbage dump angle
|
50°
|
Max suction capacity
|
Suction density 2.0g/cm3
Suction fineness 100mm
|
Auxiliary Engine
|
Cummins engine
140 HP (103 KW), super powerful
|
All standard accessories: Warning lights, music alarm, basic tool kit, English manual……
|
Optional
|
** Backup alarm can be equipped.
** Camera can be equipped.
** Operation language can be English or Appointed language.
|
Detail Images
 |
|
 |
One man easy control in Cab
|
|
Simple structure |
 |
|
 |
English Control panel
(can be your language)
|
|
High-performance air blower |
 |
|
 |

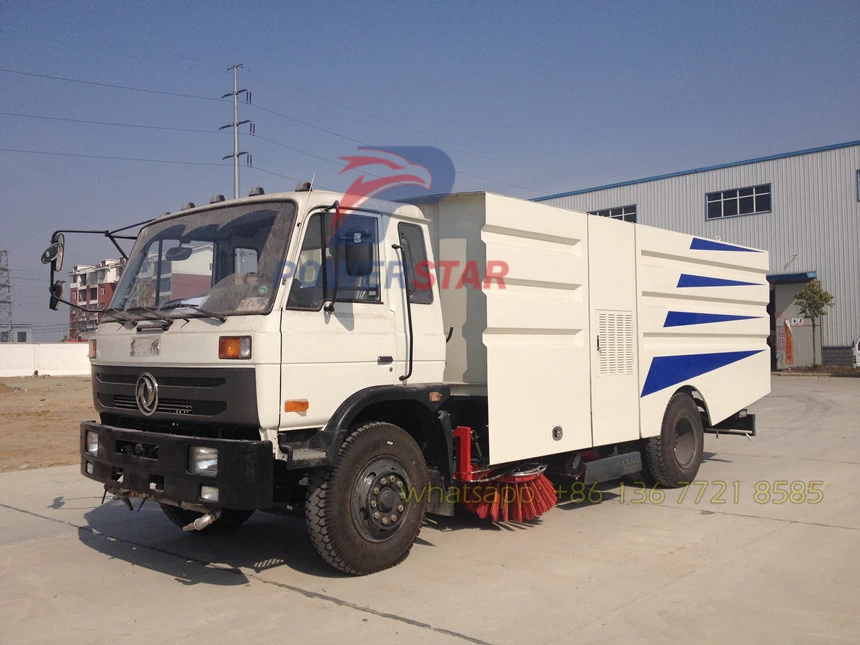

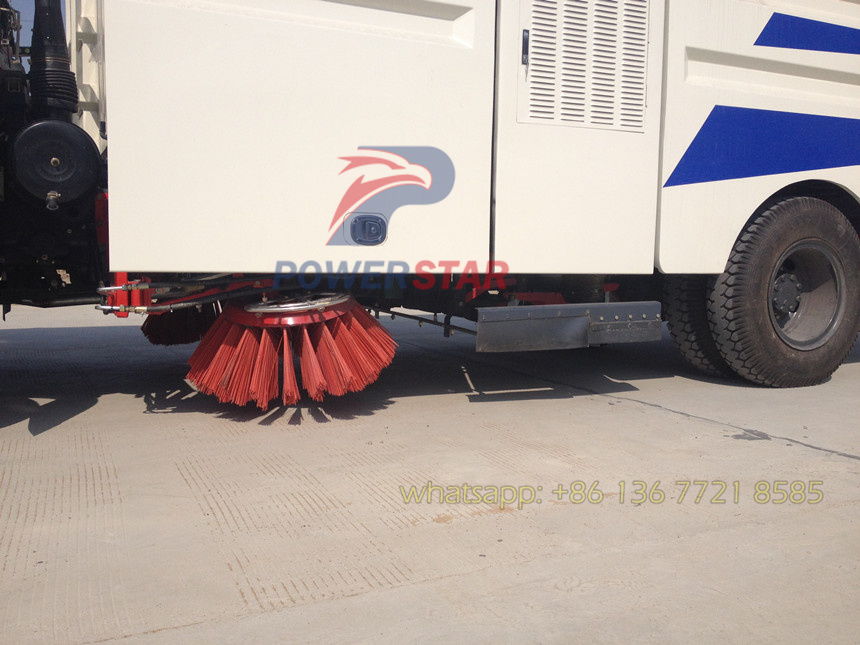

| Side brush (80mm) |
|

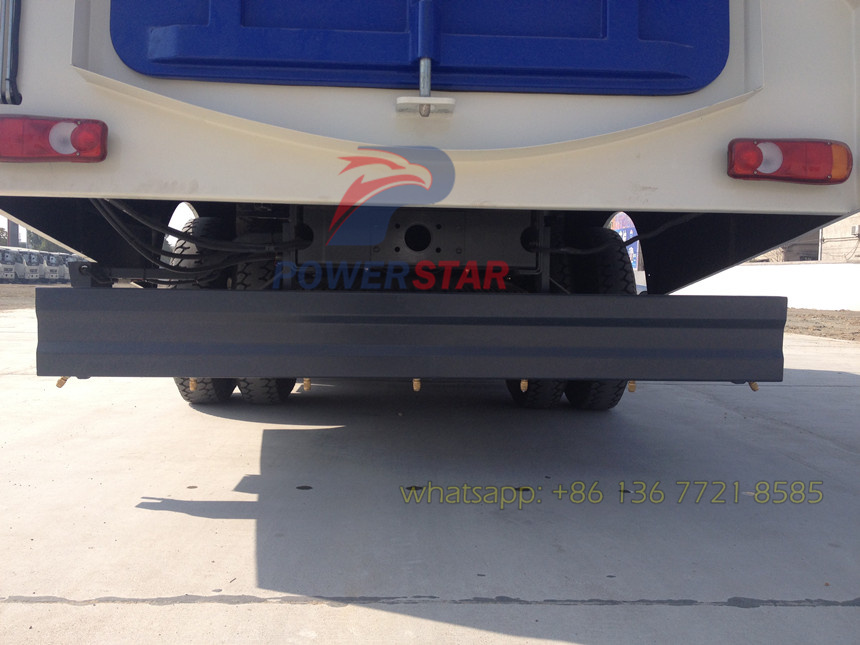

Suction port |
