Road Wrecker with Crane

ISUZU 190HP road wrecker, which has loading capacity up to 5T, ISUZU model 4KH1-TCG40 engine, MLD 6-shift manual gearbox, equipped with XCMG brand 5T telescopic boom crane to meet Sierra Leone customer requirement.

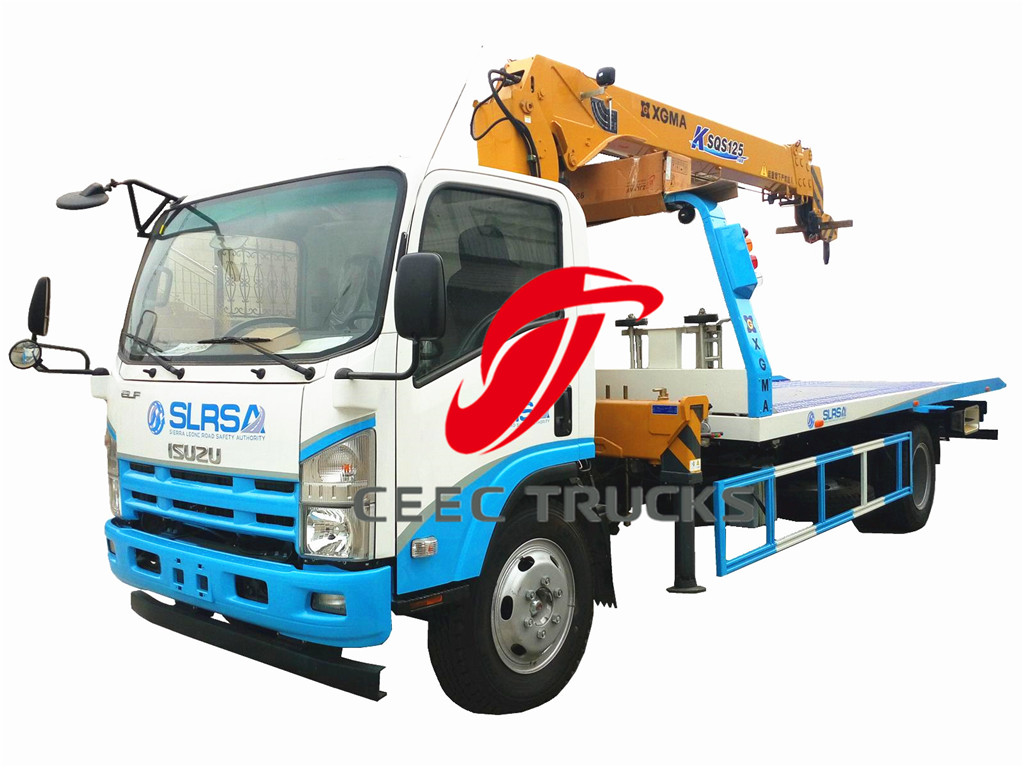

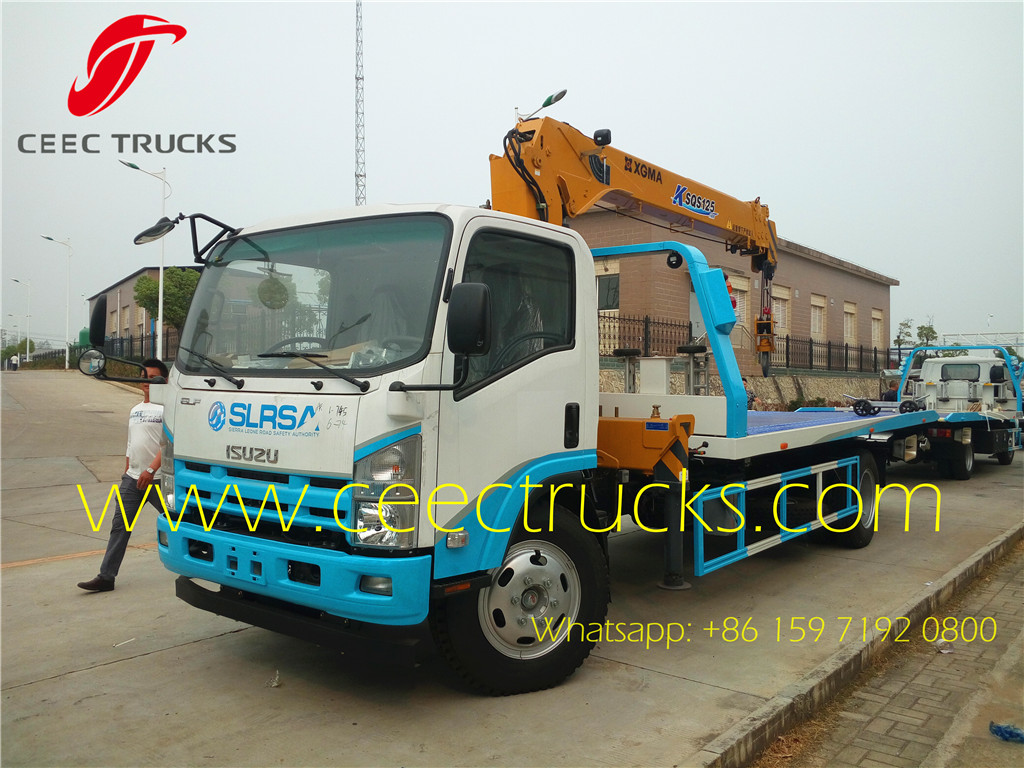

ISUZU Road Wrecker with XCMG 5T telescopic boom crane



ISUZU 5T road wrecker truck mounted crane supplier



Isuzu Road wrecker (also can be called Good quality Isuzu Road Wrecker truck, Isuzu Towing vehicles, Flatbed Tow Road Wrecker Truck Isuzu, Isuzu mini road wrecker flatbed road wrecker), which is used for safety salvage of vehicles subject to city road, suburb way, highway, airport and bridge road. It is suitable for medium and small-sized cargos, cars and other special vehicles, which are allowed within the technical parameters of this kind.



MLD 6-shift manual gearbox, 65 forward & 1 reverse

Expert for producing ISUZU Road Wrecker over 10 years with good reputation

Carbon steel material flatbed

12 months free fast moving spare parts

All English version control box, panel, and owner's manual, for easy understanding

Training service for isuzu road wrecker trucks

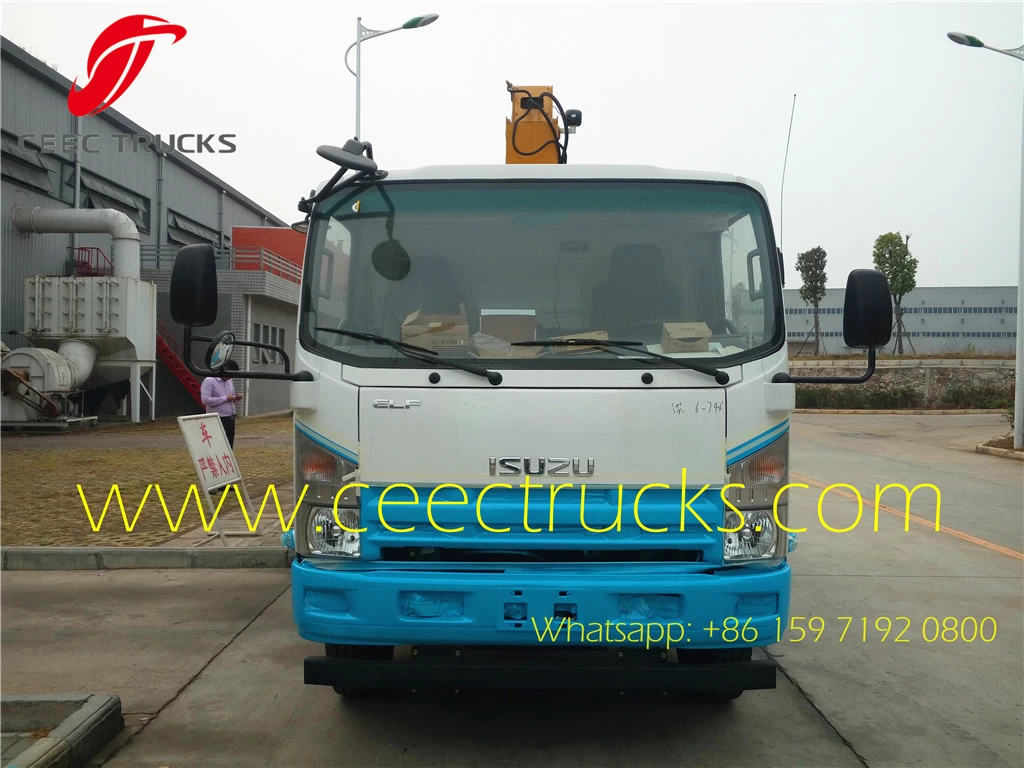

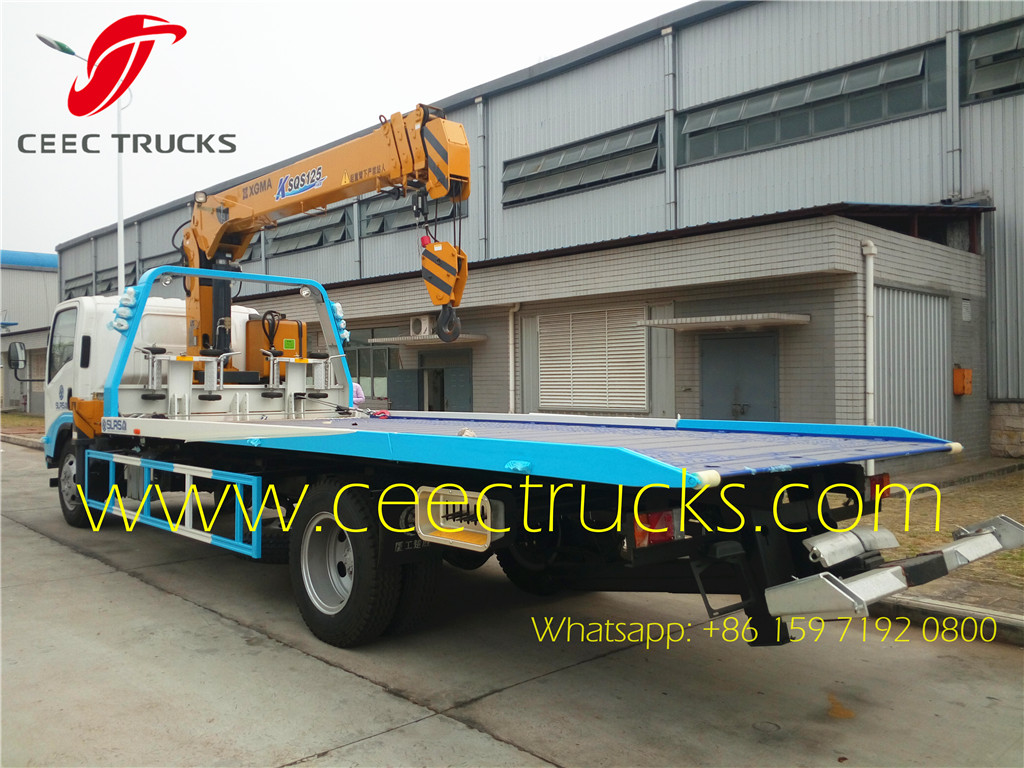

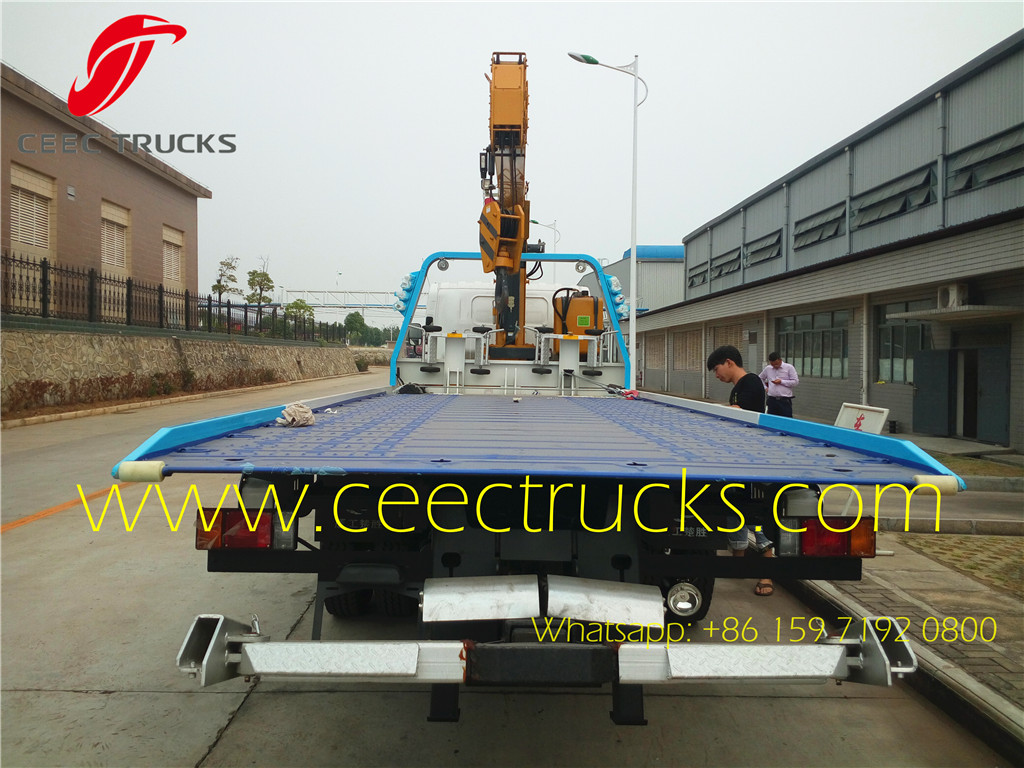

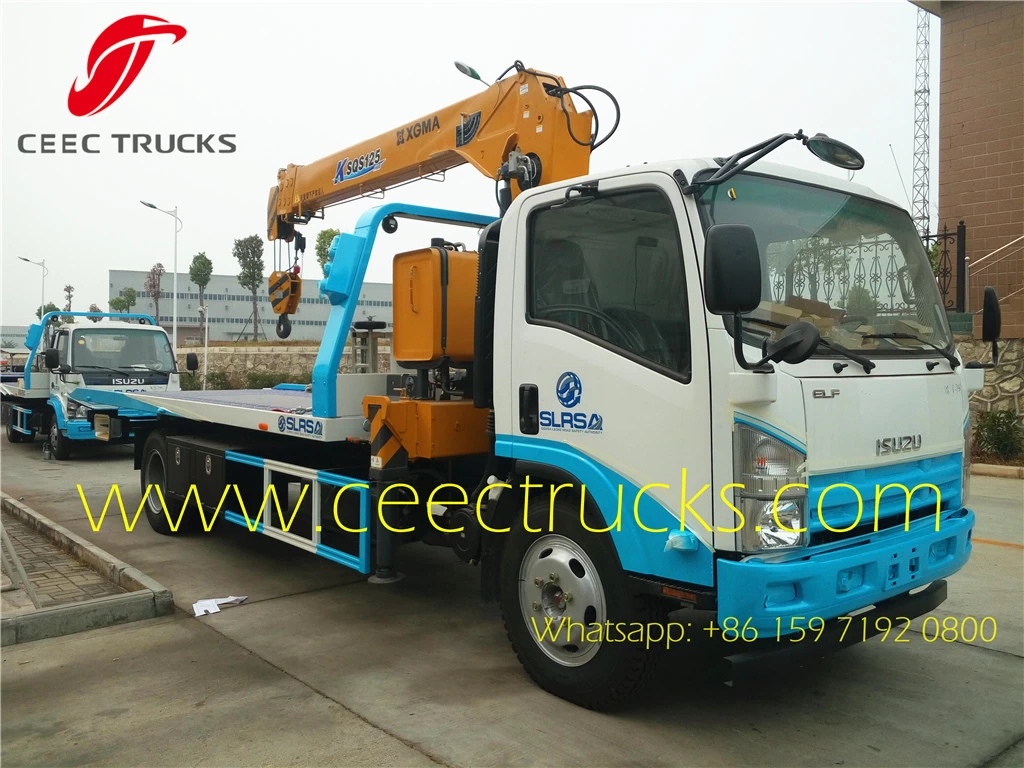

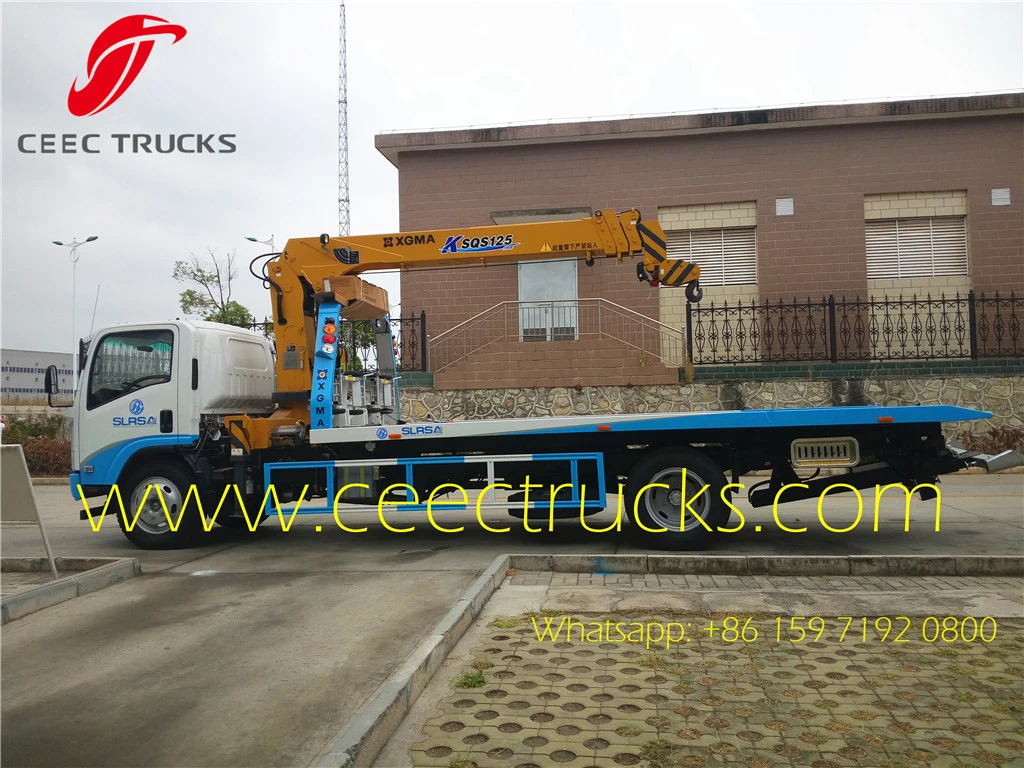

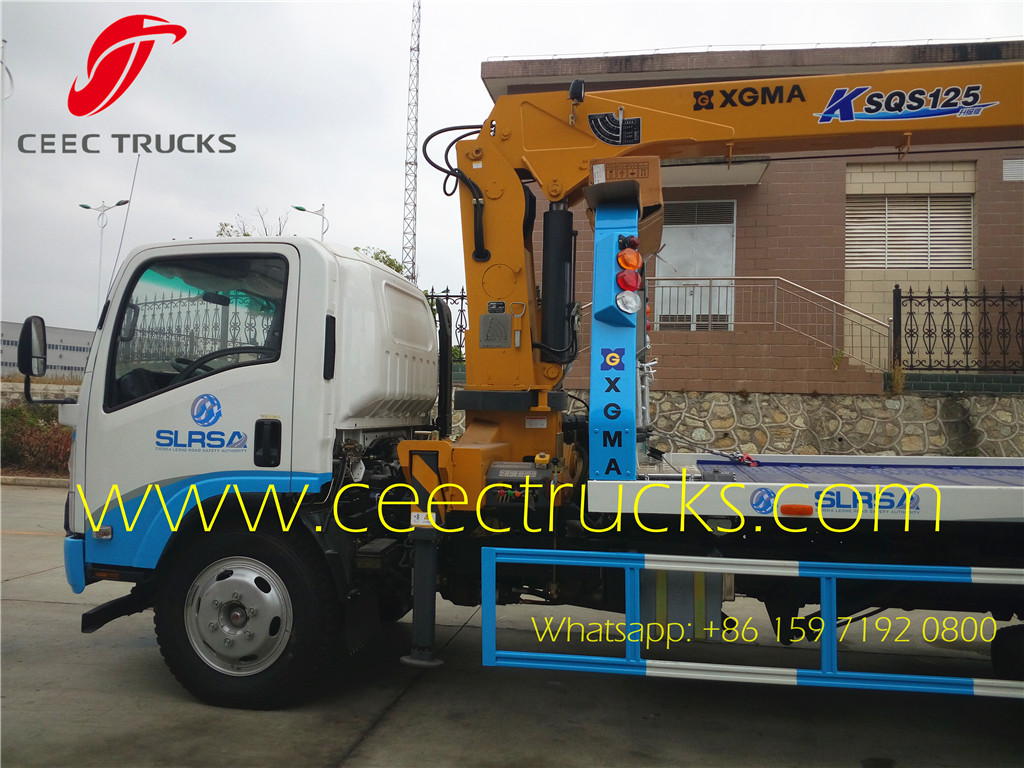

ISUZU 5T road wrecker truck mounted crane

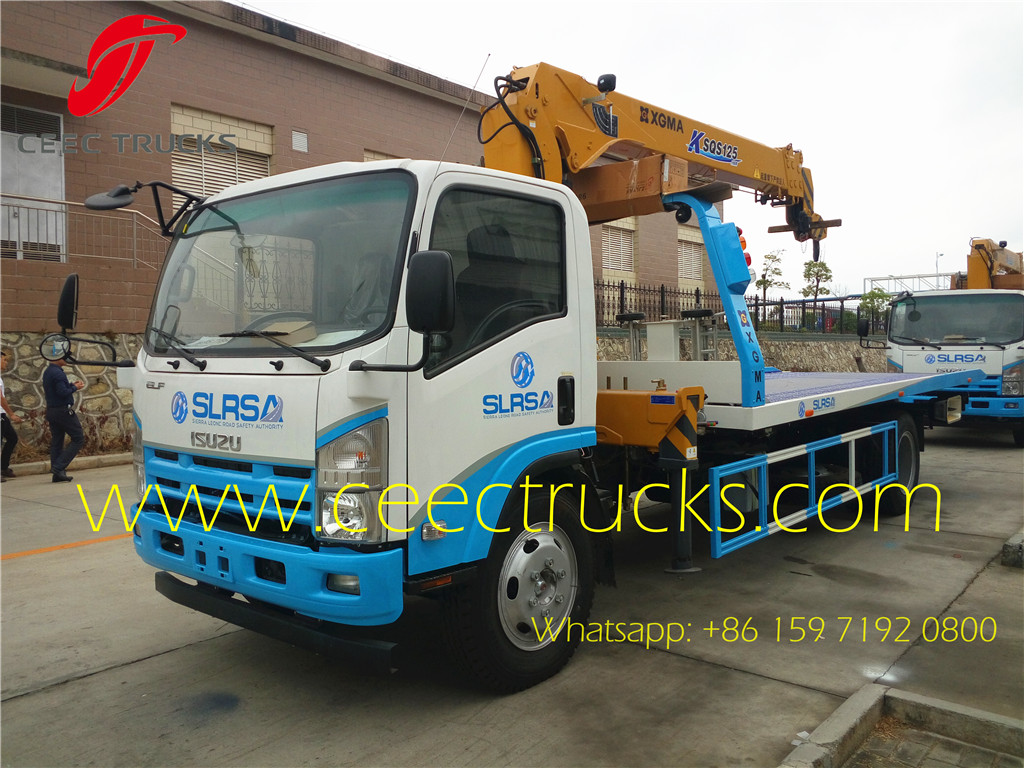

ISUZU 5T road wrecker truck mounted crane

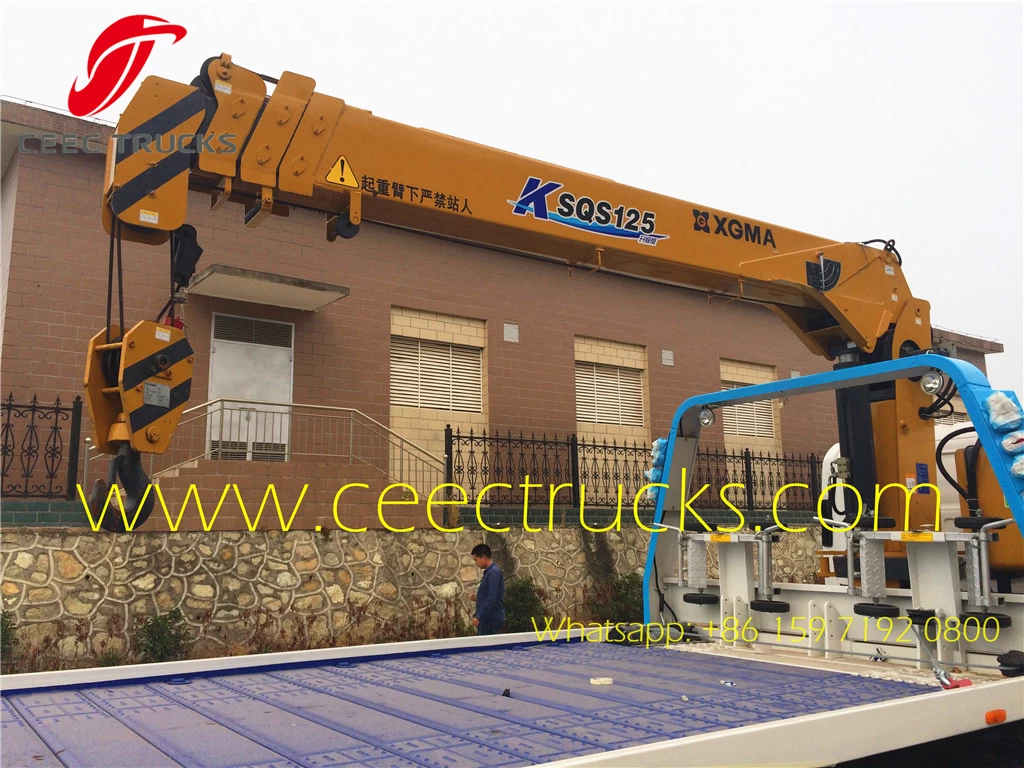

ISUZU 5T road wrecker truck mounted crane

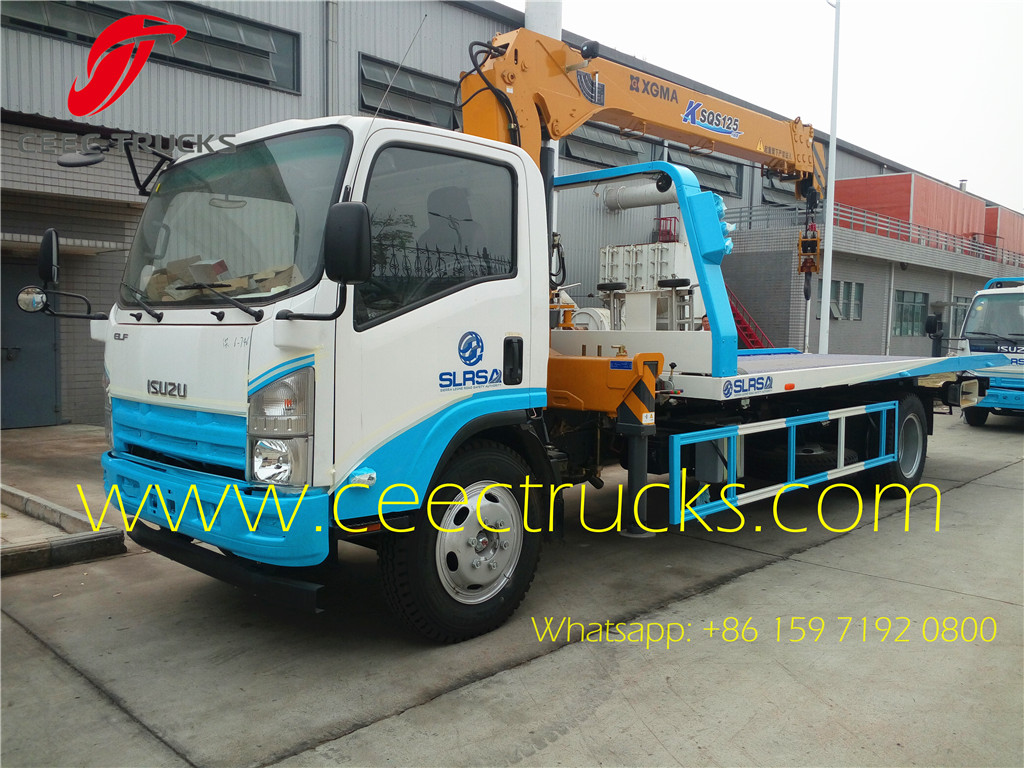

ISUZU 5T road wrecker truck mounted crane

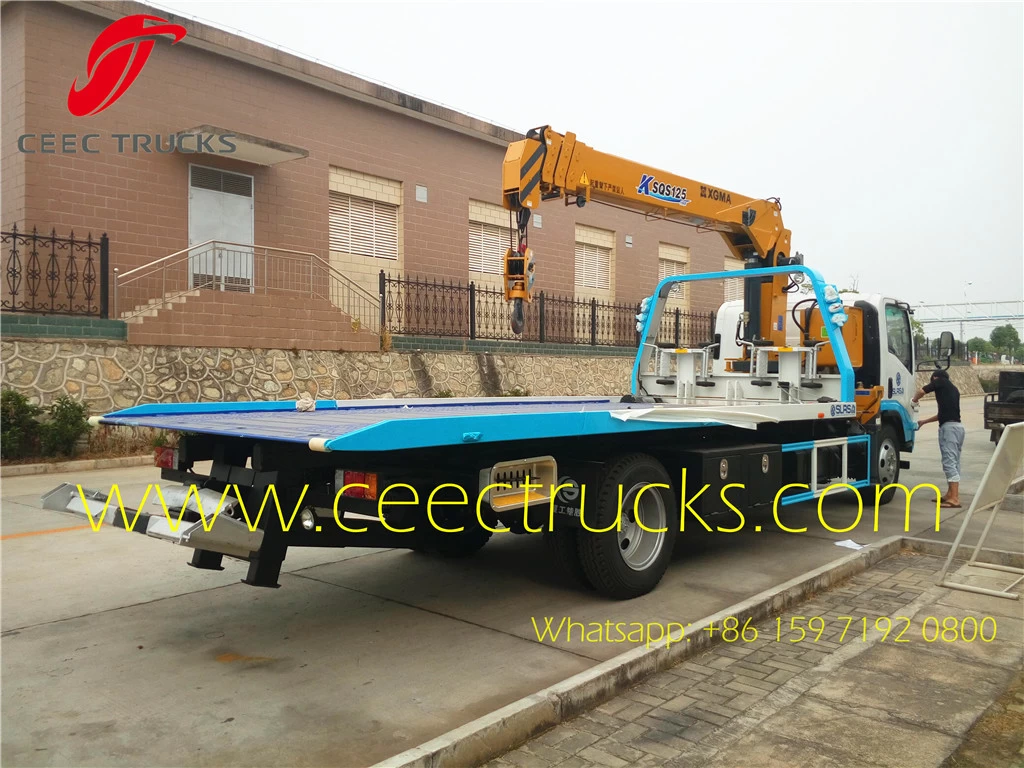

ISUZU 5T road wrecker truck mounted crane



Similar Keywords: ISUZU road Wrecker, Good quality Isuzu Road Wrecker truck, Isuzu Towing vehicles, Isuzu emergency road service truck, Japanese Light duty wrecker towing truck, Isuzu road rescue vehicle, Flatbed Tow Road Wrecker Truck Isuzu, Isuzu mini road wrecker flatbed road wrecker



Main specification

Product model and name

CEEC5071TQZQ4 road wrecker truck

Gross weight(Kg)

6900

Drive type

4X2

Curb weight(Kg)

5505

Overall dimension(mm)

7400X2300X2910

Approach/departure angle(°)

21/10

Cab seats

3

Axle No.

2

Front/rear hang(mm)

1110/2475

Axle load(Kg)

2350/4550

Wheelbase(mm)

3815

Max speed(Km/h

95





Chassis specification

Chassis model

QL10909KARY

Manufacturer

Qingling Motor Co., Ltd

Brand name

ISUZU

Dimension(mm)

6980x2170x2350

Tyre specification

8.25-16-14PR

Tyre No.

6 and 1(for the spare)

Steel spring number

8/10+6

Front track base(mm)

1680

Fuel type

Diesel

Rear track base(mm)

1650

Emission standard

Euro 4

Transmission

6 forward gear, 1reverse gear(ISUZU MLD)

Cab

Cab color: white red or other colors as your request.

Single row, Luxurious interior trim with seats,Power steering with air condition.

Engine model

Engine manufacturer

Displacement(ml)

Power(Kw)

4HK1-TCG40

Qingling ISUZU Engine Co.,Ltd

5193

139(190HP)

Performance

Flat length(mm)

5600

Flat width(mm)

2300

Max flat carrying weight(Ton)

5

Max lift weight(Ton)

3

Vehicle accessories

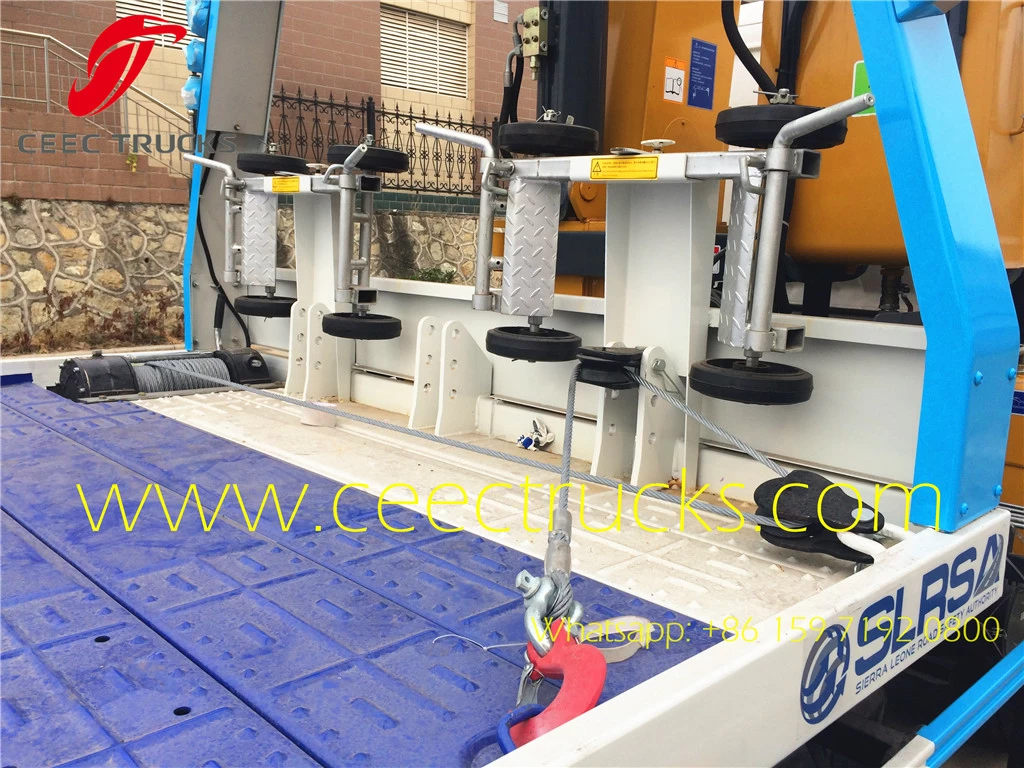

Training wheels, Steel wire rope, bandage, Alarm lamp, Tyre Covers,Jack, spare tyre ,drivers’ tools

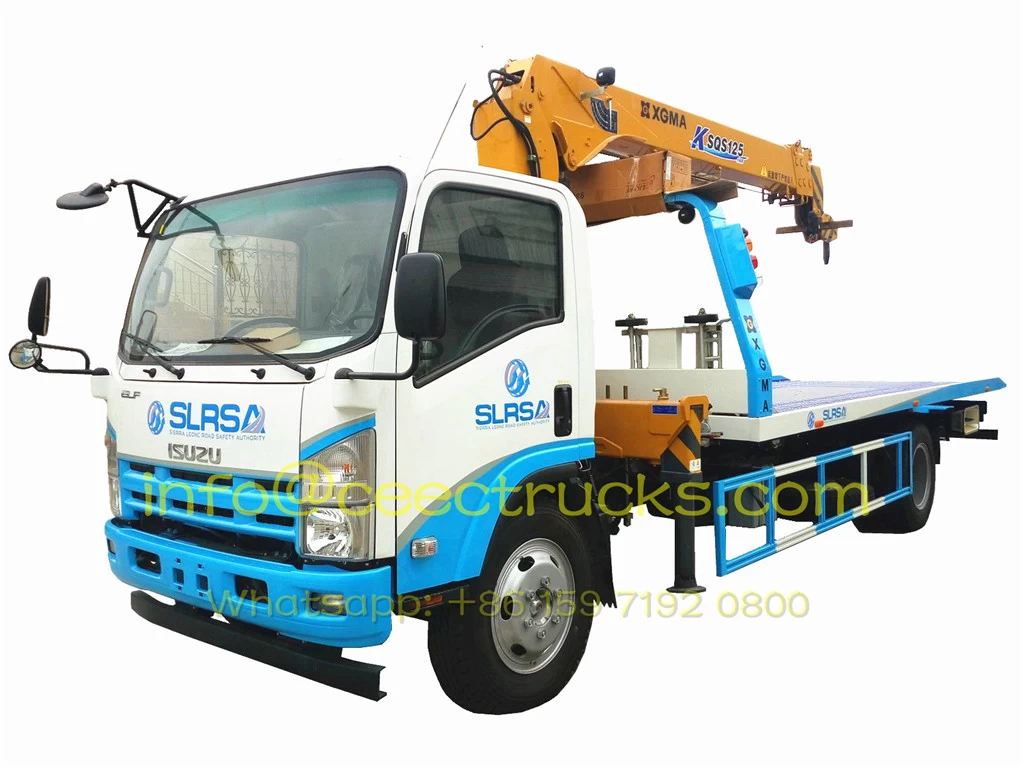

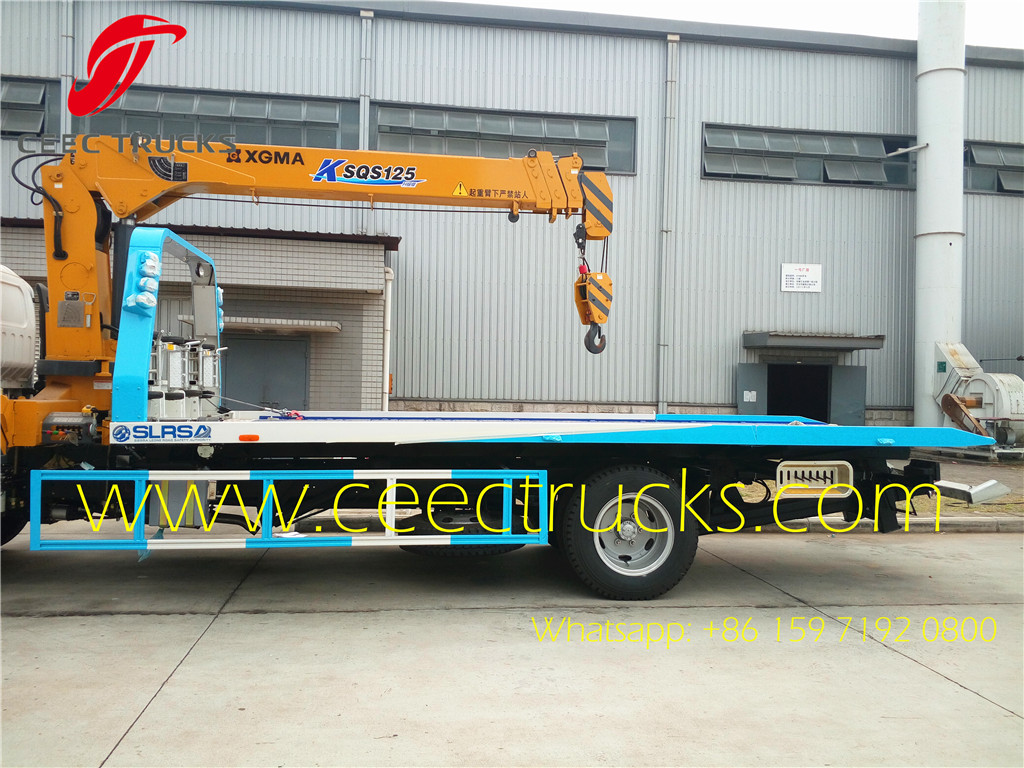

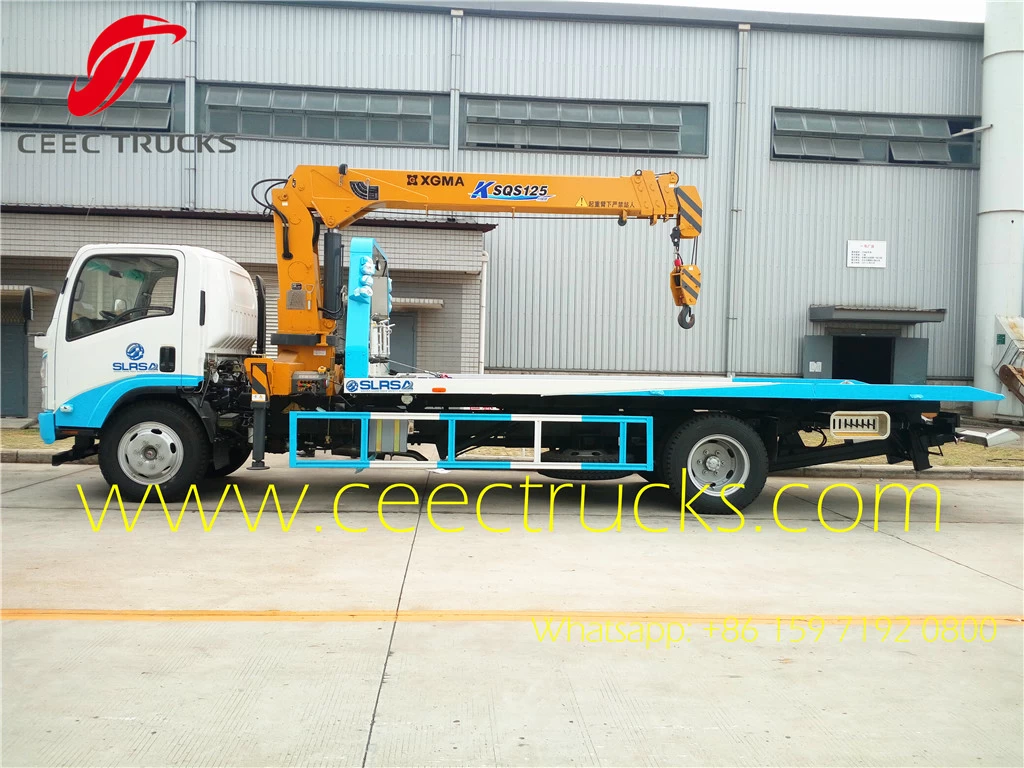

ISUZU 5T road wrecker truck mounted crane



ISUZU 5T road wrecker truck mounted crane
