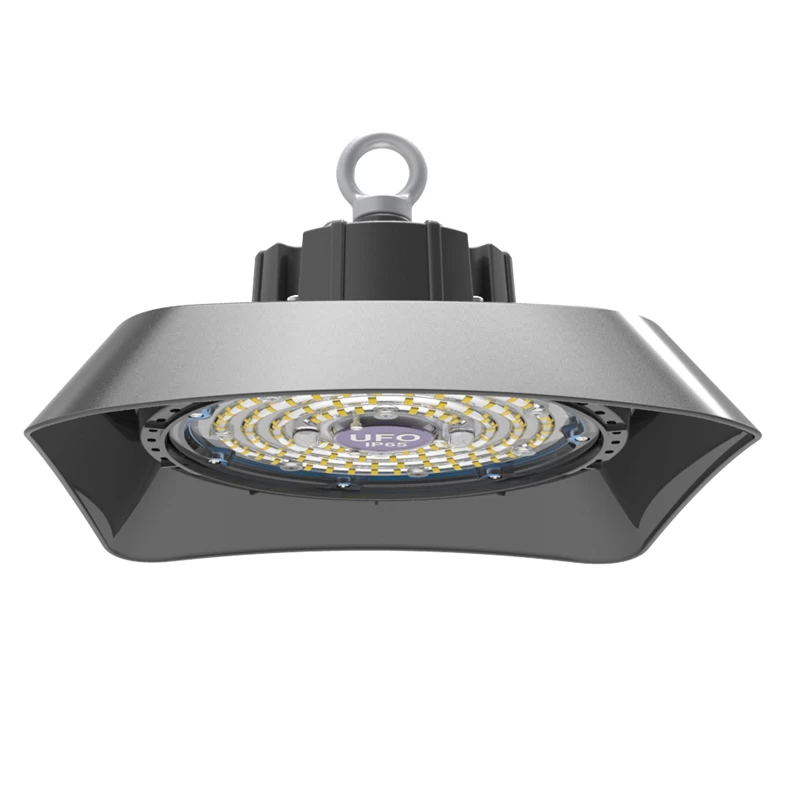

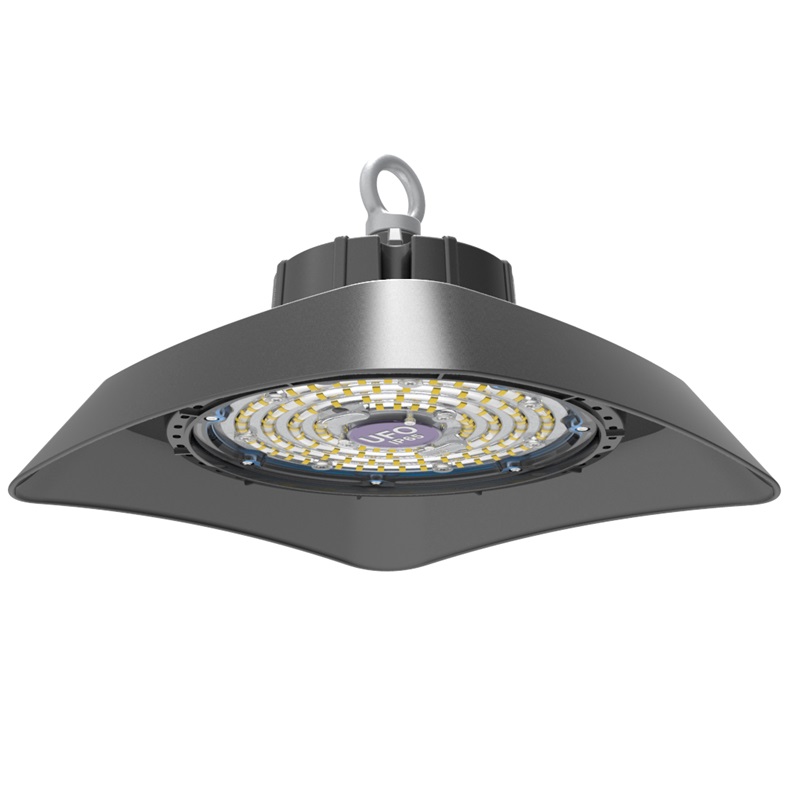

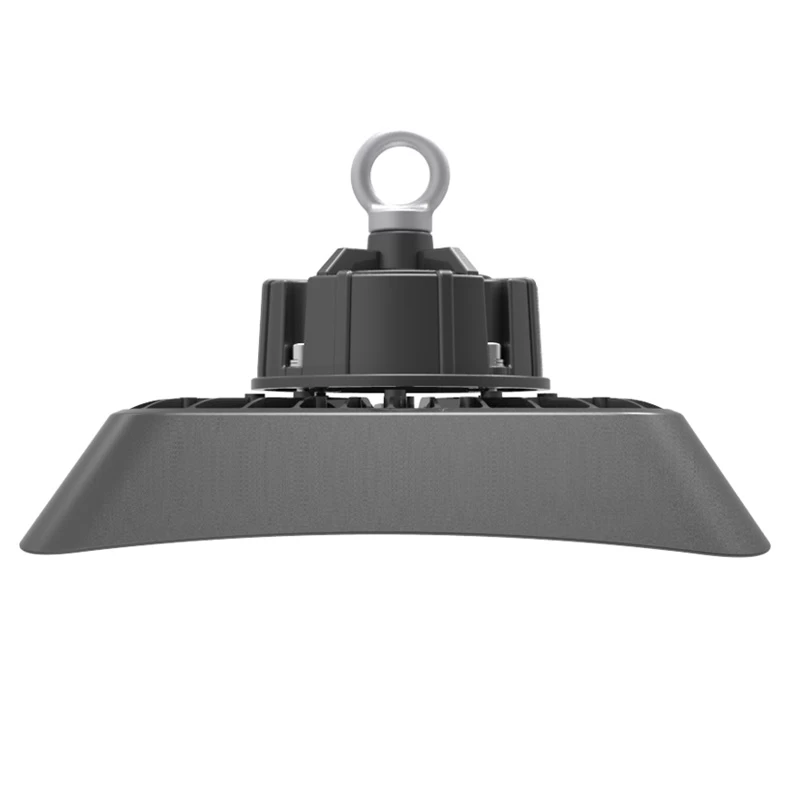

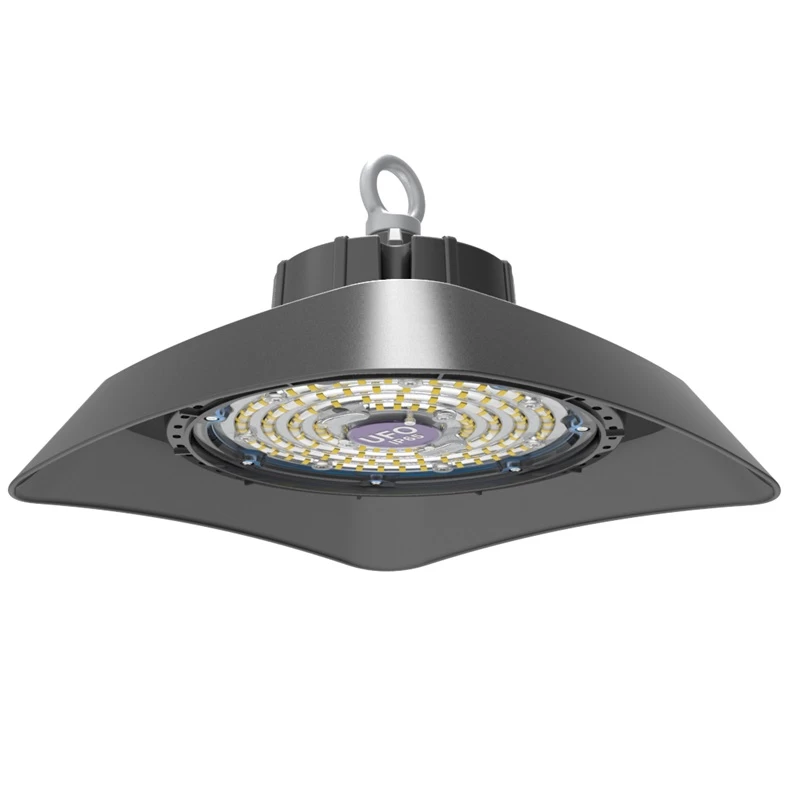

Product Item: Robust Highbay UFO LED Lights 100W High Color Rendering Index
Overview:
This multi-function UFO LED low/high bay light is a versatile and economical luminaire for applications in industrial, commercial and retail fields. It is available for 60W, 80W, 100W, 120W 150W and 200W. The product is made of aluminum alloy and tempered glass, which provides great heat distribution and is also waterproof and non-corrosive. With a heat sink of excellent cooling system, the UFO high-bay fittings are designed to withstand harsh environment with moisture, dust, and can tolerate high ambient temperatures. With this effective low energy consumption UFO LED lamp, you can see reduction in energy bill but without compromising on a high-performance product.
Specifications:
|
Model
|
SR-HBSQ-100W
|
Power
|
100W
|
Lumen Output
|
13,000lm
|
Light Source
|
LUMILEDS/OSRAM/NICHIA/CREE, etc.
|
Beam Angle
|
60°/90°/120°
|
|
Power Supply
|
MEAN WELL/PHILIPS/DRIVERLESS, etc.
|
Input Voltage
|
AC100-305V, 50/60Hz
|
Power Factor
|
>0.95
|
Colour Rendering Index
|
Ra>80
|
CCT
|
3000K/4000K/5000K/5700K/6500K
|
IP Rating
|
IP65
|
Dimming
|
Dimmable/Non-dimmable
|
Material
|
Die-cast Aluminium, PC
|
Dimension
|
253x253x153mm
|
Weight
|
1.8KG
|
Warranty
|
5 years warranty
|
Features:
-
System Power: 60W, 80W, 100W, 120W, 150W, 200W.
-

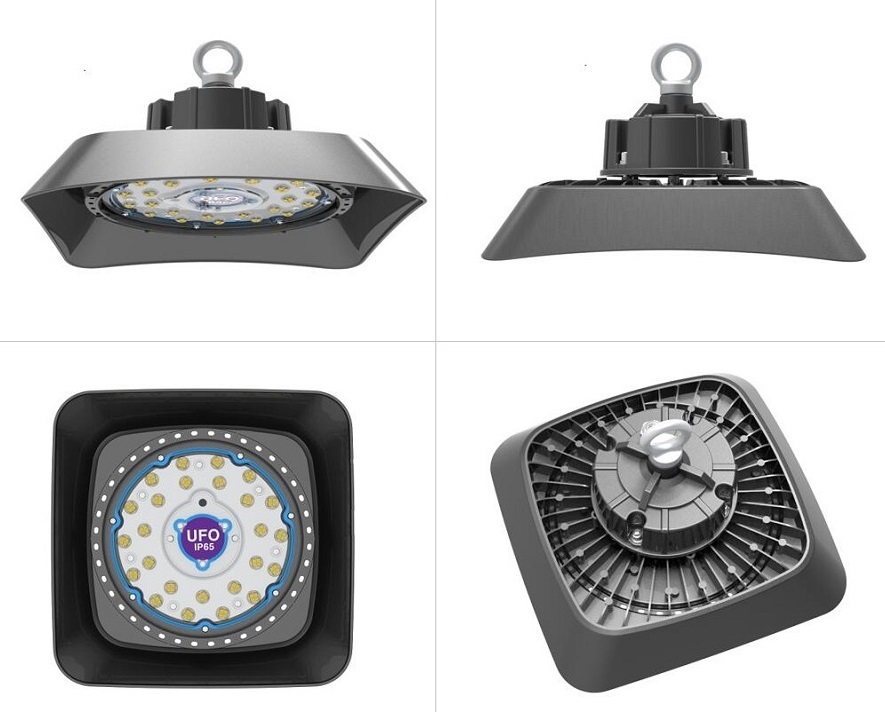

Unique and innovative square design lamp body, slim but efficient.
-

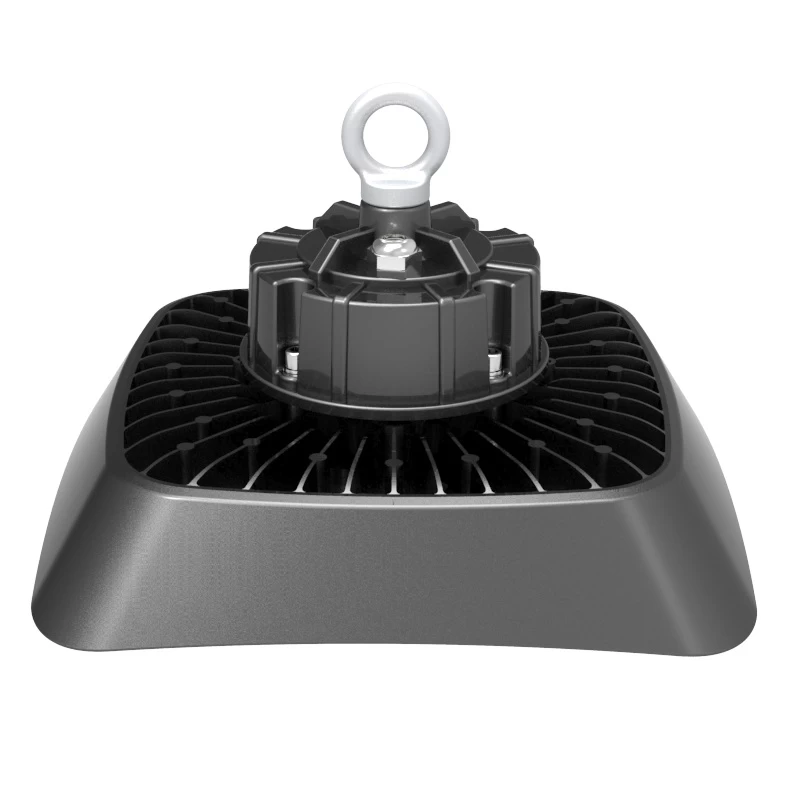

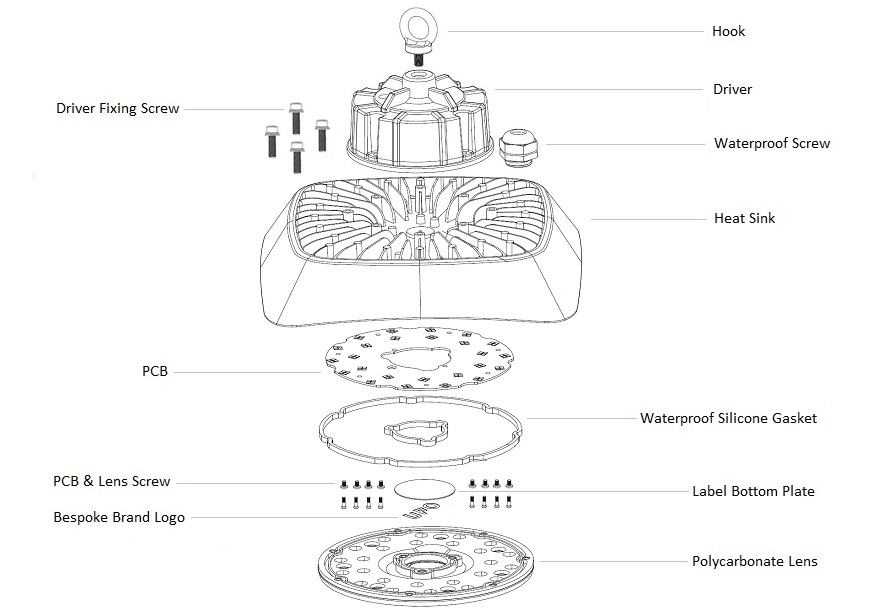

Highly ventilated die-cast aluminum fixture design with holes around the light source enables fixture to run 30% cooler than most high bays.
-
Outstanding lighting performance guaranteed by high brightness Philips Lumileds Luxeon series SMD LED and the high transmission polycarbonate lens.
-
Multiple light distribution: polycarbonate Fresnel lens and convex lens optional with 60°, 90°, and 120° beam angles available.
-
Flexible LED power supply installation options: round power supply, square power supply(horizontal installation or vertical installation), or driverless(DOB) solution.
-
It is compatible with built-in microwave sensors and ZigBee intelligent control available for additional energy savings.
-
Dimming options: 0-10V diming/DALI diming UFO high bay LED light.
-
Quick and installation: hanging installation or wall installation by hook, U-bracket, or chain.
-
This UFO light has a high ingress protection level, IP65, shatterproof, weatherproof, suitable for hazardous area lighting.
-
This series of UFO high-bay light fittings are widely used for manufacturing facilities, cafeterias, gyms, warehouses, factories, and just about any other space with high ceilings that requires a high lumen light source.
|
|
|
|

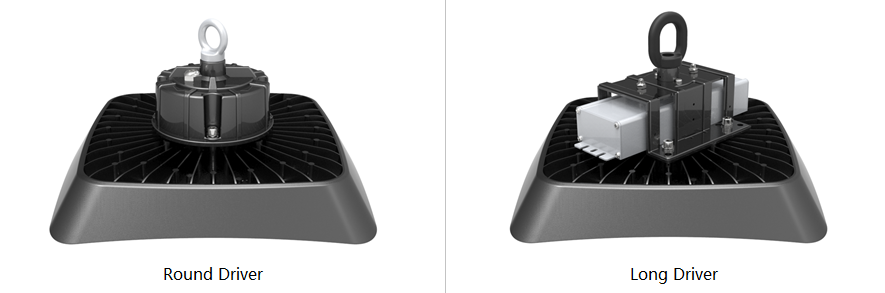

Driver installtion: hook, bracket and yoke avalable for both round driver and long driver installation.

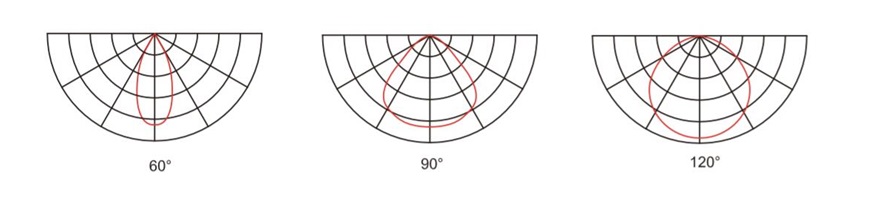

Lighting distribution: wide range of beam angles avaiable.

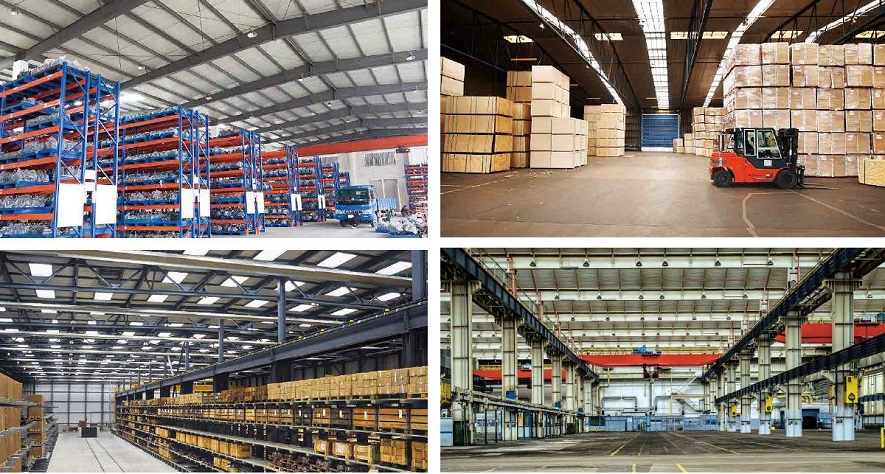

Application: Storage area lighting, warehouse lighting, supermarkets lighting, garage lighting, manufacturing facility lighting, etc.
