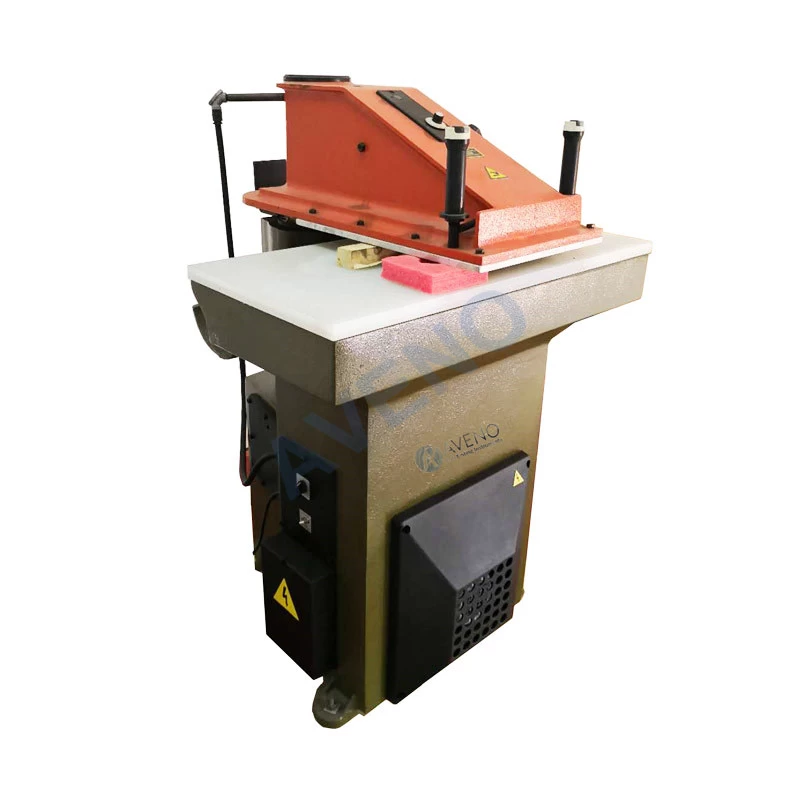

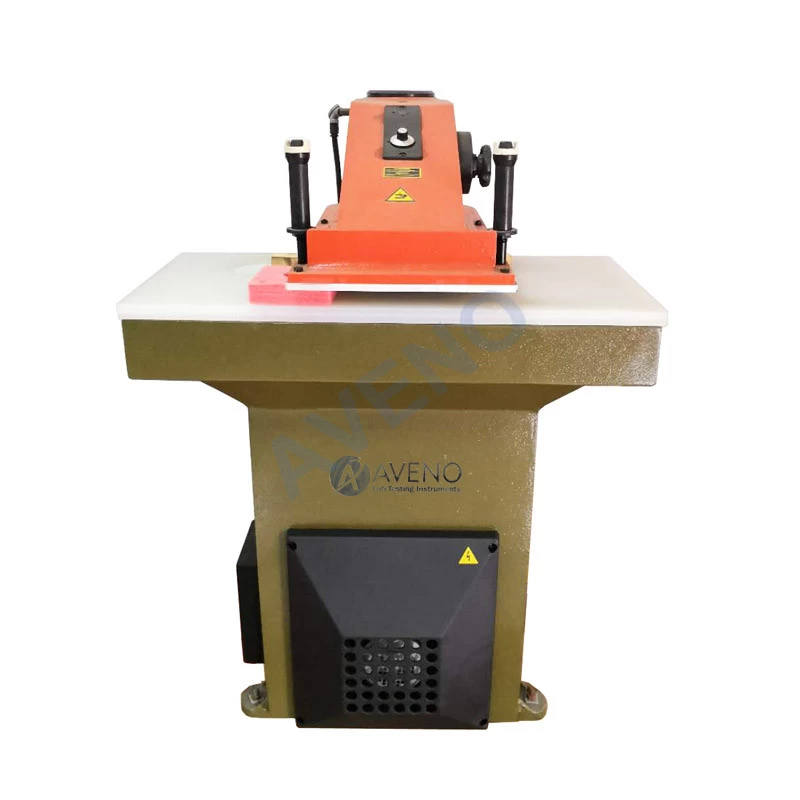

AH15B-Rocker arm hydraulic cutting press
Application Of Rocker arm hydraulic cutting press
Rocker arm hydraulic cutting press is suitable for cutting leather, plastics, nylon cloth, paperboard, cotton foam and synthetic fibres and, especially for one or more layers blanking of wide material.
Feature Of Rocker arm hydraulic cutting press
-
Suitable for punching various non-metallic materials with a forming die.
-
With time control, the cutting depth setting is simple and convenient.
-
Two-hand operation, safe and reliable.
-
Using flywheel energy storage, low energy consumption and stable work.
-
The whole machine adopts self-lubricating system to reduce wear and prolong the service life of the machine.
Key Specification Of Rocker arm hydraulic cutting press
|
Model
|
AH15B-Rocker
arm hydraulic cutting press
|
|
Cutting
force
|
220KN
|
|
Cutting
plate size
|
Upper
plate 370*370mm
|
|
Lower plate 900*430mm
|
|
Stroke
adjustment distance
|
5-90mm
|
|
Power
supply
|
AC380V,
50/60HZ
|
|
Dimension
|
90*82*144cm
|
|
Weight
|
350kg
|
Accessories Of Rocker arm hydraulic cutting press
|
Standard
Accessories
|
Cutting mat
|
1pc
|
|
English
operate manual
|
1pc
|
