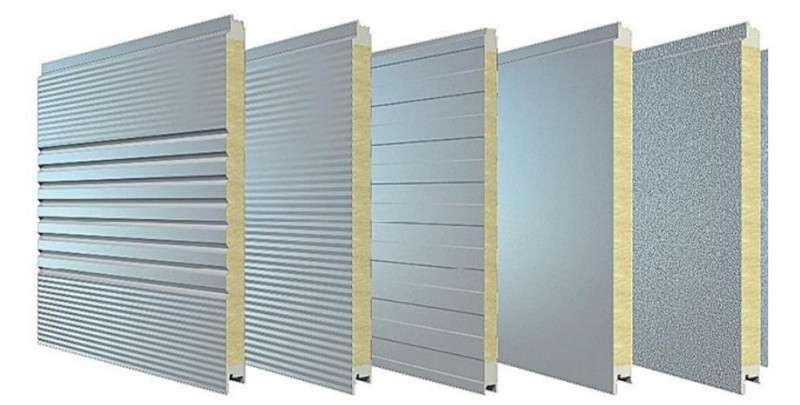

Rockwool+PU Sandwich Panel For Metal Wall Cladding System

This kind of Rockwool+PU sandwich panel is simple, fashionable, elegant and graceful and has graduated layers and a strong three-dimensional sense to create a rhythmic effect of light and shadow.

Patent No.: ZL 2001 3 0108109.4



Rockwool+PU Sandwich Panel For Metal Wall Cladding System


Product Parameters

Brand of steel plates:

Bao Steel, Yieh Phui Steel, Ma Steel, BHP Steel.

Painting of steel plates:

PVDF, SMP, HDP, PE; The top painting should be above 25μm.

Galvanized layer of steel plates:

Exterior plate:55% Aluzinc above 100g/m³or Zinc coating above 150g/m³; Inner plate:55% Aluzinc above 70g/m³or Zinc coating above 100g/m³.

Thickness of steel plates:

0.4mm-0.8mm.

Thickness of core:

50mm/75mm/100mm/150mm

Density of core:

Rockwool:≥120kg/m³; Glasswool: 64kg/m³; PU: 40-50kg/m³

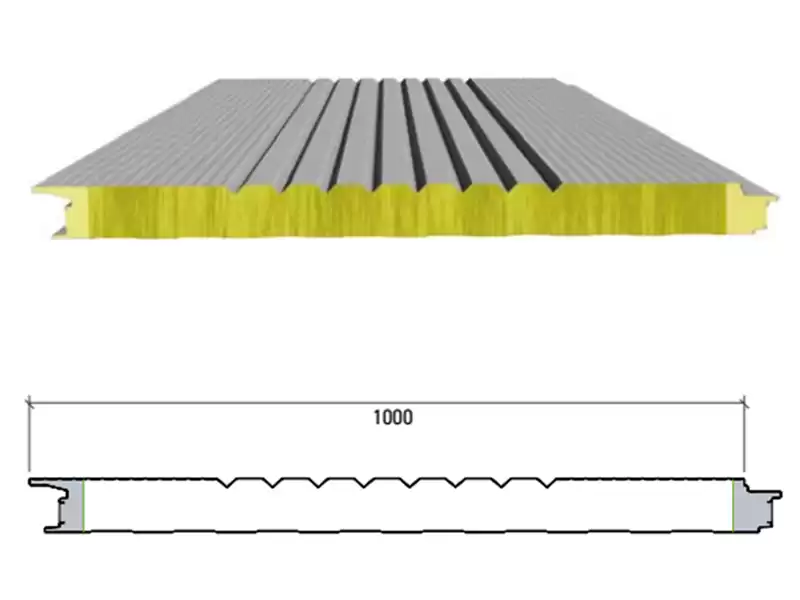

Effective width:

1000mm

Panel Length:

According to customers’ request



Performance Description:

1.The same board performance double effect, creating a rich melody of light.

2.Eight V-shaped deep trench reinforcement, higher board strength.

3.Patented product apprearance, just for your uniqueness.
