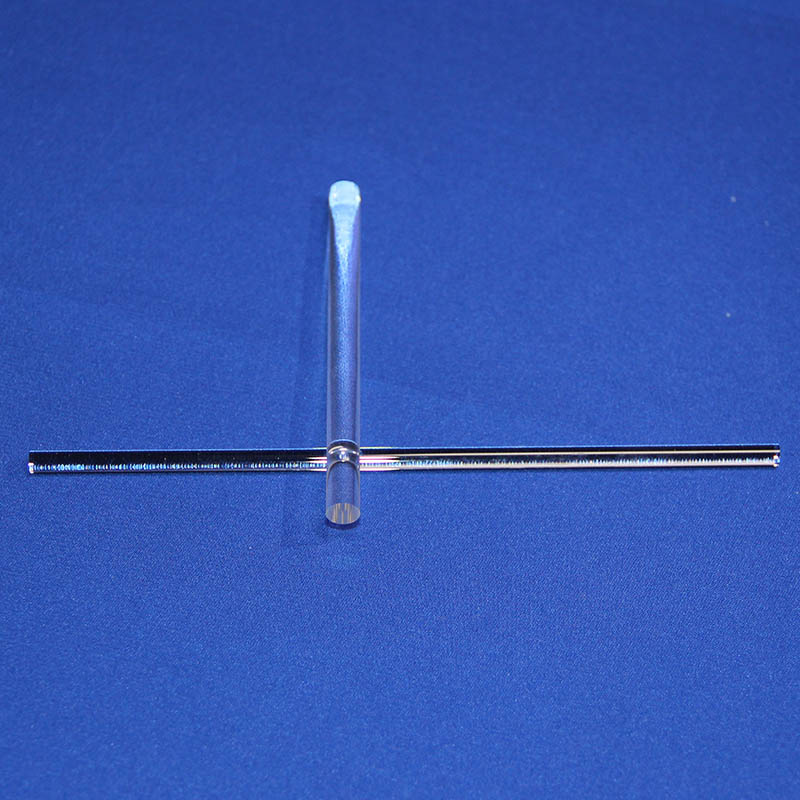

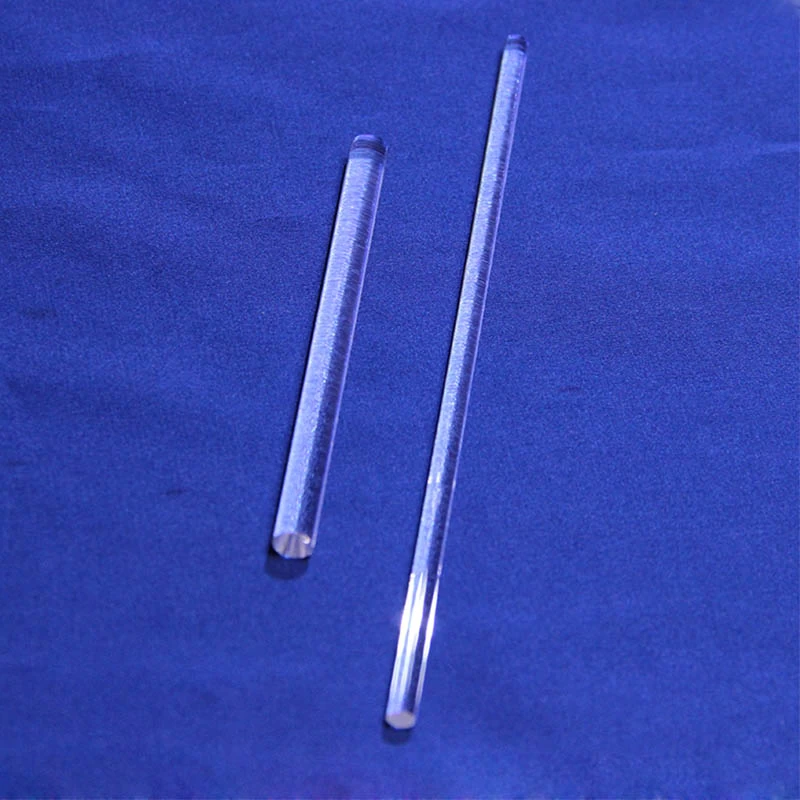

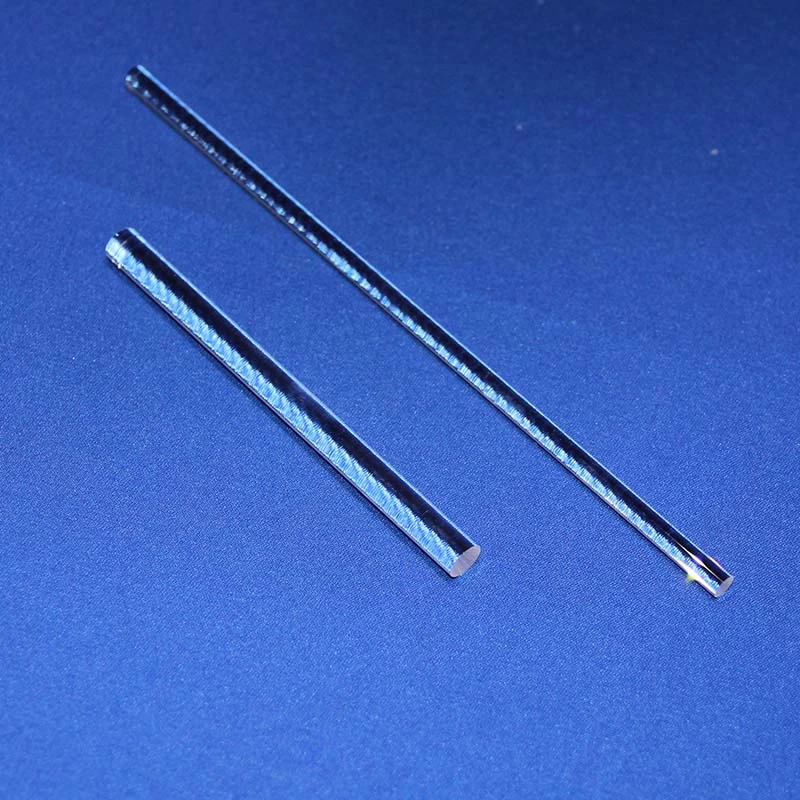

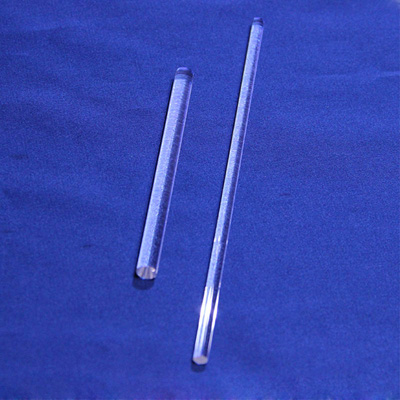

Rods Lenses and Light pipes
Rod lenses Light pipes is used in the fields of medical, electronic, information, agriculture, communication and etc.
Material:
|
Grade A optical glass or Fused Silica
|
Dimension Tolerance:
|
±0.05mm to ±0.005mm
|
Surface quality:
|
20/10 to 40/20
|
Clear Aperture:
|
>85%
|
Surface Figure:
|
λ/4 to 2λ@633nm
|
Centration:
|
3 arc minutes
|
Note:
|
Diameter: available from Φ1.0mm to Φ25mm
1.All surfaces (end-faces and cylinder)polished;
2.Only end-faces polished;
3.Only Cylinder polished.
|
