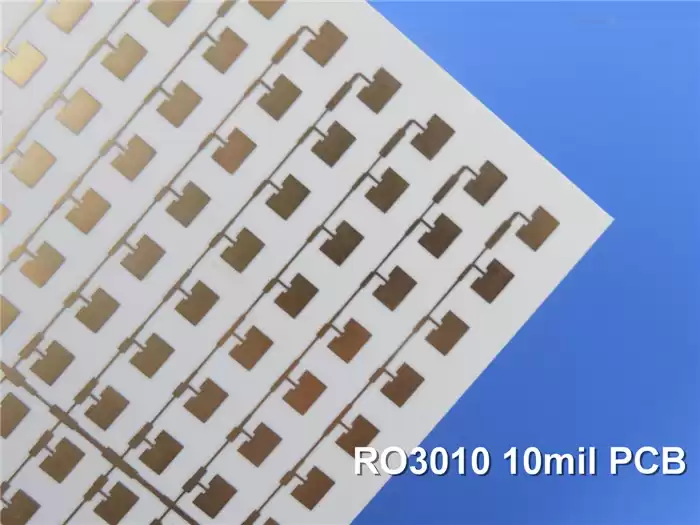

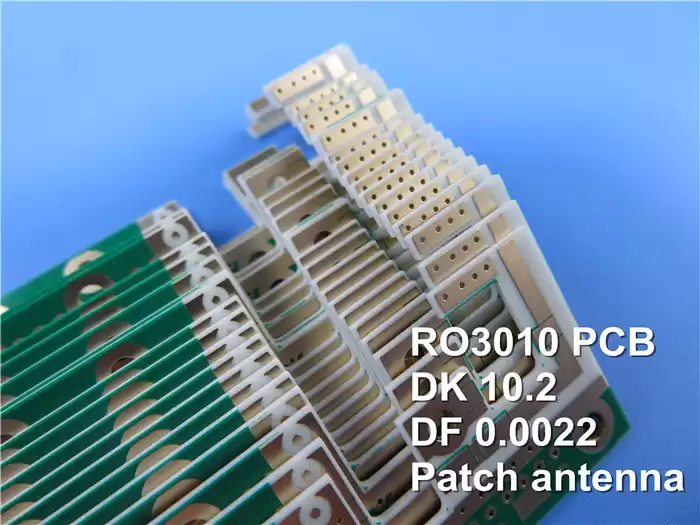

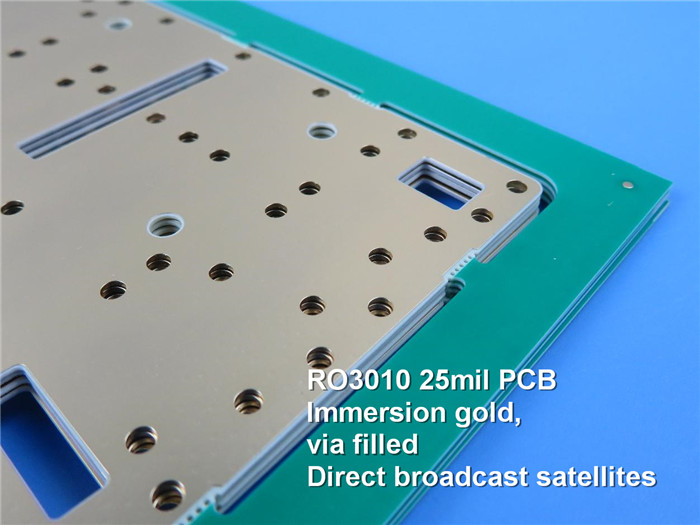

Rogers RO3010 High Frequency PCB 2-Layer Rogers
3010 10mil 0.254mm Printed Circuit Board DK10.2 DF 0.0022 Microwave PCB
Rogers RO3010 high frequency circuit materials
are ceramic-filled PTFE composites intended for use in commercial microwave and RF applications. It was designed to offer exceptional electrical and mechanical
stability at competitive prices.
The
mechanical properties are consistent. This allows the designer to develop
multi-layer board designs without encountering warpages or reliability
problems. RO3010 materials exhibit a coefficient of thermal expansion(CTE) in
the X and Y axis of 17 ppm/℃.
This expansion coefficient is matched to that of copper, which allows the
material to exhibit excellent dimensional stability, with typical etch
shrinkage, after etch and bake, of less than 0.5 mils per inch. The Z-axis CTE
is 24 ppm/℃, which
provides exceptional plated through-hole reliability, even in severe
environments.
Typical applications:
PCB Specifications:
|
PCB SIZE
|
91 x 85mm=1PCS
|
|
BOARD TYPE
|
Double
sided PCB
|
|
Number
of Layers
|
2 layers
|
|
Surface
Mount Components
|
YES
|
|
Through
Hole Components
|
YES
|
|
LAYER STACKUP
|
copper
------- 18um(0.5 oz)+plate TOP layer
|
|
RO3010 0.254mm
|
|
copper ------- 18um(0.5 oz) + plate BOT Layer
|
|
TECHNOLOGY
|
|
|
Minimum Trace and Space:
|
4
mil / 8 mil
|
|
Minimum
/ Maximum Holes:
|
0.4mm
/ 0.8mm
|
|
Number
of Different Holes:
|
n/a
|
|
Number
of Drill Holes:
|
n/a
|
|
Number
of Milled Slots:
|
0
|
|
Number
of Internal Cutouts:
|
0
|
|
Impedance
Control:
|
no
|
|
Number
of Gold finger:
|
0
|
|
BOARD
MATERIAL
|
|
|
Glass
Epoxy:
|
RO3010
0.254mm
|
|
Final
foil external:
|
1
oz
|
|
Final
foil internal:
|
N/A
|
|
Final
height of PCB:
|
0.3
mm ±0.1mm
|
|
PLATING AND COATING
|
|
|
Surface Finish
|
Immersion Gold
|
|
Solder
Mask Apply To:
|
Bottom, 12micron
Minimum
|
|
Solder
Mask Color:
|
Green,
PSR-2000GT600D, Taiyo Supplied.
|
|
Solder
Mask Type:
|
LPSM
|
|
CONTOUR/CUTTING
|
Routing
|
|
MARKING
|
|
|
Side of
Component Legend
|
Bottom
|
|
Colour
of Component Legend
|
White, IJR-4000
MW300, Taiyo brand
|
|
Manufacturer
Name or Logo:
|
Marked on the
board in a conductor and leged FREE AREA
|
|
VIA
|
N/A
|
|
FLAMIBILITY RATING
|
UL
94-V0 Approval MIN.
|
|
DIMENSION TOLERANCE
|
|
|
Outline
dimension:
|
0.0059"
|
|
Board
plating:
|
0.0029"
|
|
Drill
tolerance:
|
0.002"
|
|
TEST
|
100%
Electrical Test prior shipment
|
|
TYPE OF ARTWORK TO BE SUPPLIED
|
email
file, Gerber RS-274-X, PCBDOC etc
|
|
SERVICE AREA
|
Worldwide,
Globally.
|
Data Sheet of Rogers 3010 (RO3010):
|
Property
|
RO3010
|
Direction
|
Units
|
Condition
|
Test Method
|
|
Dielectric Constant,εProcess
|
10.2±0.05
|
Z
|
|
10 GHz/23℃
|
IPC-TM-650 2.5.5.5 Clamped Stripline
|
|
Dielectric
Constant,εDesign
|
11.2
|
Z
|
|
8GHz to 40 GHz
|
Differential Phase
Length Method
|
|
Dissipation
Factor,tanδ
|
0.0022
|
Z
|
|
10
GHz/23℃
|
IPC-TM-650 2.5.5.5
|
|
Thermal
Coefficient of ε
|
-395
|
Z
|
ppm/℃
|
10 GHz -50℃to 150℃
|
IPC-TM-650 2.5.5.5
|
|
Dimensional
Stability
|
0.35
0.31
|
X
Y
|
mm/m
|
COND A
|
IPC-TM-650 2.2.4
|
|
Volume
Resistivity
|
105
|
|
MΩ.cm
|
COND A
|
IPC 2.5.17.1
|
|
Surface
Resistivity
|
105
|
|
MΩ
|
COND A
|
IPC 2.5.17.1
|
|
Tensile
Modulus
|
1902
1934
|
X
Y
|
MPa
|
23℃
|
ASTM D 638
|
|
Moisture
Absorption
|
0.05
|
|
%
|
D48/50
|
IPC-TM-650 2.6.2.1
|
|
Specific Heat
|
0.8
|
|
j/g/k
|
|
Calculated
|
|
Thermal
Conductivity
|
0.95
|
|
W/M/K
|
50℃
|
ASTM D 5470
|
Coefficient of Thermal Expansion
(-55 to 288℃)
|
13
11
16
|
X
Y
Z
|
ppm/℃
|
23℃/50% RH
|
IPC-TM-650 2.4.4.1
|
|
Td
|
500
|
|
℃TGA
|
|
ASTM D 3850
|
|
Density
|
2.8
|
|
gm/cm3
|
23℃
|
ASTM D 792
|
|
Copper Peel
Stength
|
9.4
|
|
Ib/in.
|
1oz,EDC After Solder
Float
|
IPC-TM 2.4.8
|
|
Flammability
|
V-0
|
|
|
|
UL 94
|
|
Lead-free
Process Compatible
|
Yes
|
|
|
|
|
BICHENG PCB EQUIPMENT:
Rogers PCB Board is a type of high-frequency board that raw material
is produced by Rogers company. It is different from the conventional PCB
board—epoxy resin (FR4). There is no glass fiber in the middle of the
Rogers PCB Board, and the high-frequency material uses a ceramic base.
Rogers have excellent dielectric constant and temperature stability.
