Roll to Roll Heat Press Machine for Battery Electrode Pressing
Product Specification
This machine is mainly composed of the front and rear rollers, gear transmission system, three phase asynchronous Motors chassis, electrical control system five parts Relative rolling the material in gear transmission Reversible control using the three phase asynchronous motor driven gear transport, smooth rolled.
The machine rolled uniform, reliable, simple operation, easy maintenance. Mainly used for battery pole piece rolled.
|
Model
|
Roller Machine TOB-YXY-HSR
|
|
Roller speed
|
Visible through the converter
|
|
Roll Size
|
φ230 * 400mm
|
|
Thickness adjustment range
|
φ10mm
|
|
Operating voltage
|
Three-phase 380V / 50HZ
|
|
Total power
|
3.7KW
|
|
Dimension (L * W * H)
|
1000 * 700 * 1430mm
|

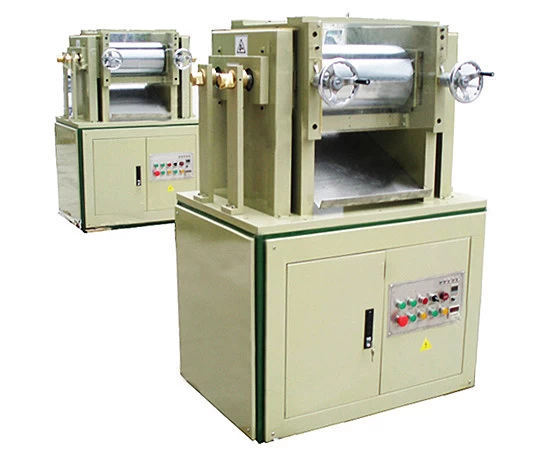

Product Image
Product Packing
