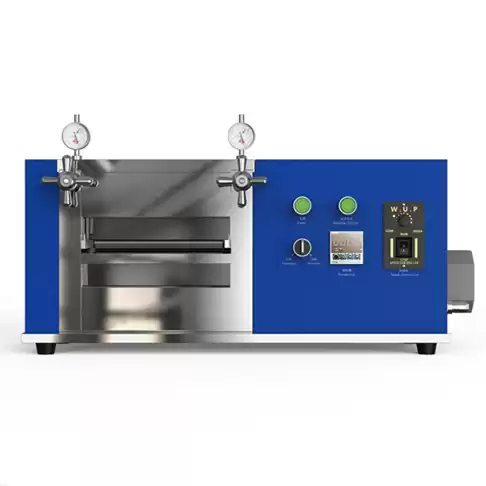

Roll To Roll Hot Roller Press Machine for Battery Electrode Calendar
1 TMAX-JS100L Hot roller press machine is a compact hot rolling press machine mainly serves for pressing samples in the lab or other applications in the material research especially for increasing active material density of the electrode in Li-Ion batteries research after coating.
2 The hot roller press machine has 100mm width steel rollers. Such a roller can be heated up to 130°C
|
Model
|
Roll to Roll Hot Roller Press Machine TMAX-JS100L
|
|
Source voltage
|
AC 110V-220V Customized, 50HZ
|
|
Power
|
800W
|
|
Warranty
|
One Year limited warranty with lifetime support
|
|
Roller temperature
|
RT-130℃, adjustable and digital display
|
|
Roller diameter
|
2 - Φ96mm
|
|
Roller surface hardness
|
HRC62
|
|
Roller finish degree
|
>0.8
|
|
Rolling press thickness
|
0-2mm, Adjustable
|
|
Working speed
|
0-40mm/s
|
|
Rolling press width
|
Max 100mm（Customizable）
|
|
Dimension(L*W*H)
|
800*700*350mm
|
|
Weight
|
About 86kg
|
|

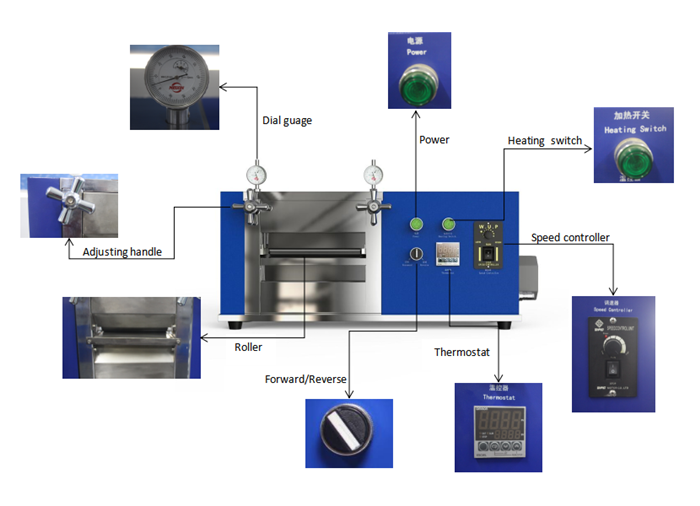

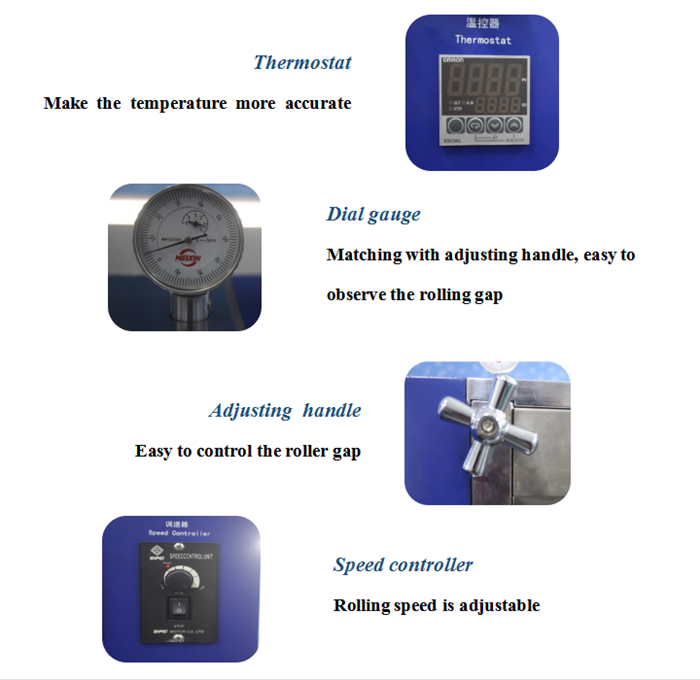

Accessories
|
1 “Customized power plug”-1pcs 2 “Dial gauge”-2pcs

3 “Socket head wrench”-1set 4 “Feeler gauge”-1pcs

|
More Models:
|
Roller diameter tolerance
|
0.004mm
|
|
Roller Surface Hardness
|
62 HRC
|
|
Roller Dimensions
|
100mm(Dia.) x 100mm(W)
100mm(Dia.) x 200mm(W)
100mm(Dia.) x 400mm(W)
150mm(Dia.) x 200mm(W)
150mm(Dia.) x 400mm(W)
200mm(Dia.) x 200mm(W)
200mm(Dia.) x 400mm(W)
|
|
Working Voltage
|
110V - 240V AC, 50/60Hz, automatic switch for worldwide use
|
|
Roller Material
|
Made from hardened tool steel (RC > 62) with Cr electroplated coating
|
|
Rolling Speed
|
0-40mm/s adjustable
|
|
Warning1
|
Never roll materials with hardness > 50HRC
|
|
Warning2
|
This rolling machine can be used under Ar gas
|
|
Application
|
Battery Equipments
|
|
Color
|
Request
|
|
