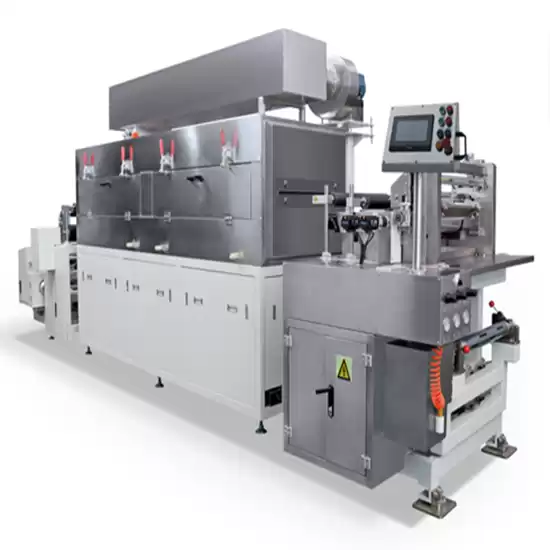

Roll to Roll Three Roll Transfer Battery Electrode Continuous and Intermittent Coating Machine

Introduction:

TMAX-SY400 Coater is a three roll transfer coating equipment, which is convenient for surface coating of various substrates. Especially used in the lithium-ion battery industry, the device is designed to facilitate researchers to use and meet the requirements of coating accuracy and consistency, which is no different from the production requirements. It has excellent drying effect, and is an ideal choice for lithium-ion battery, super capacitor, nickel battery and other secondary batteries.



Characteristic:

*Base material tension control, stable belt running, and deviation correction device;

*Hot air oven, upper and lower double side blowing, drying effect is high quality;

*Three roll transfer coating, with wide coating window; * comma scraper metering, with precision adjustment mechanism, to achieve high coating accuracy;

*PLC control, touch screen operation, easy to use;

*Solvent recovery and treatment device is optional;

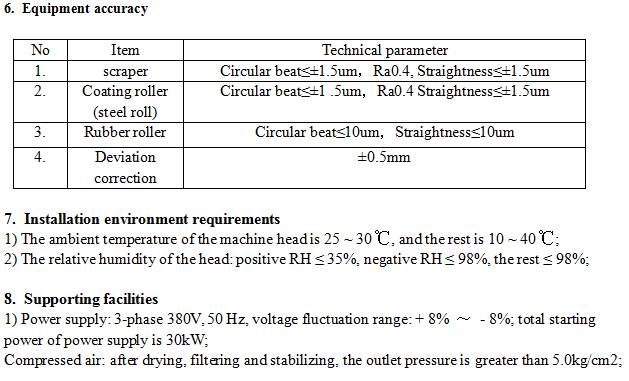

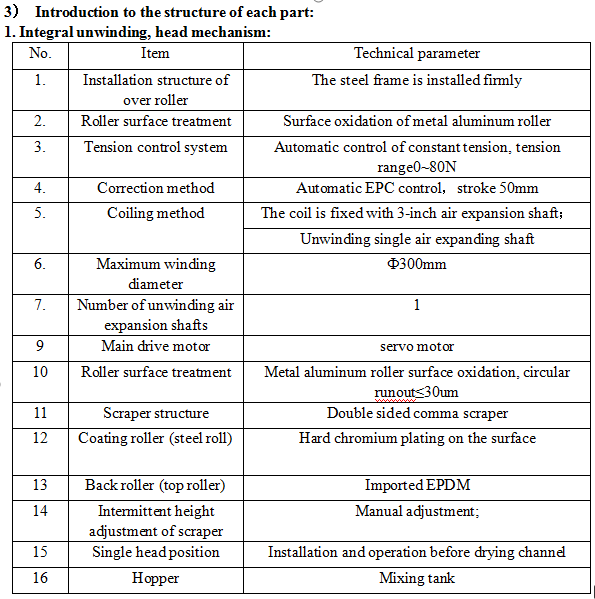

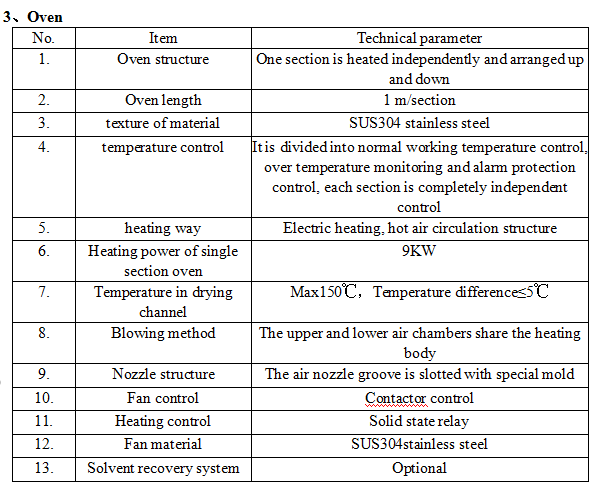

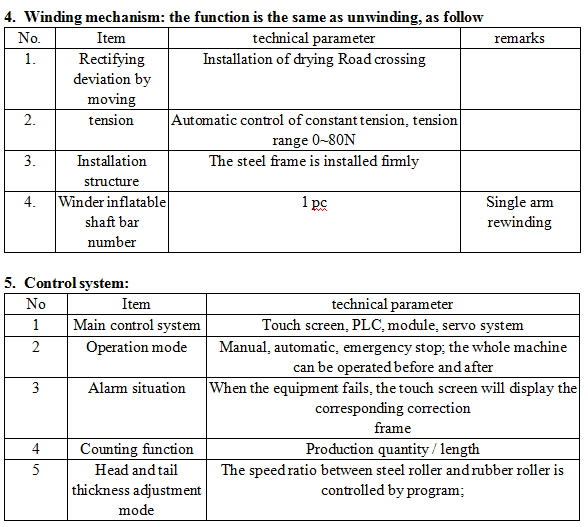

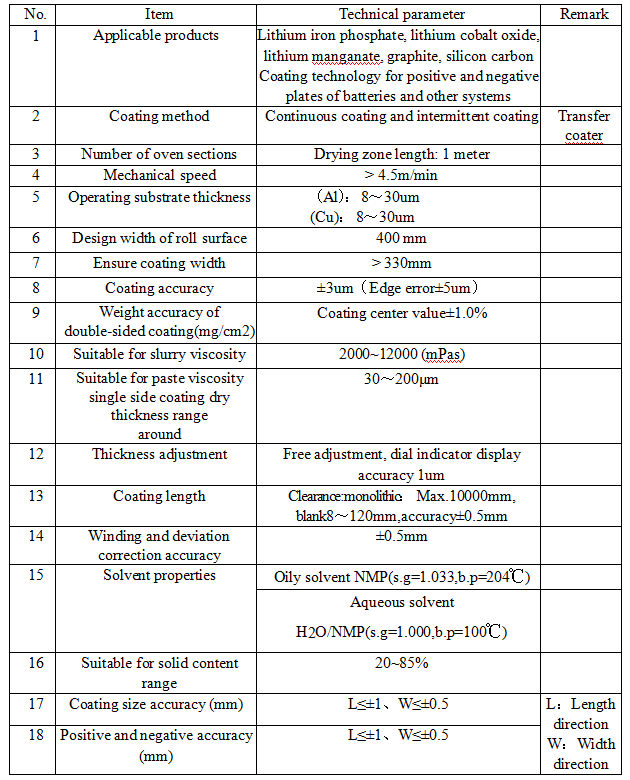

Specification:
