What is cold rolled steel? how to cut cold rolled steel ?
Cold rolled steel is essentially hot rolled steel that has had further processing. It is better to cut by fiber laser.
what is hot rolled steel?
Hot-rolling refers to a mill process in which you roll the steel at a temperature above its recrystallization temperature; a heat that typically exceeds 1000° F.It is better to cut by fiber laser.
Sheet metal coil processing?
There is special fiber laser for cutting sheet metal coils.
How to laser cut Coil steel?
Fiber laser cutting machine works with other equipments : Decoiler ,Straightener, leveling machine...
Baisheng laser F3015JE 6015JE /F3015JDE are the best solution for coil steel laser cut
Fiber Laser Coil Steel Processing solution is the most advanced combination of coil-fed automation and high-speed laser cutting for surface-sensitive metal blanking.
Baisheng laser coil cutting machine offers a user-friendly process and more possibilities than many traditional laser machines on the market today.

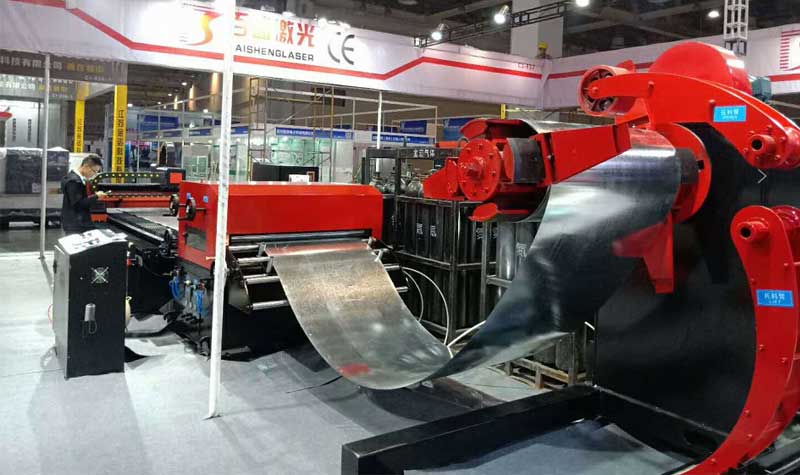

When processing from coils, rolled steel.the material is unwound by a decoiler and then paid out by the feeder into the machine. When processing standard or pre-cut sheets, the sheets are placed on a roller table at the inlet of the machine. The sheet is then inserted into the processing area and Cypcut system establishes the position of the sheet corners and edges, immediately starting the machining process.
-
Decoiler: When processing coils, the decoiler acts as a material storage system with capacities of 6, 8 or 10 tons.Baisheng F3015JE JDE machines offer all the advantages of coil-fed production, including automated production, 100% optimization of material and extremely high-speed cutting.
-
Straightener: The straightener receives the material from the coil and eliminates the curvature caused by being wound on the reel. The straightener is built directly into the feeder in the standard LXN versions, offering an extremely compact footprint.
-
Roller table for insertion of pre-cut sheets: With this optional element, sheets of different materials and thickness can be machined up to 4 meters long. Larger roller tables are also available for feeding single sheets up to 12 meters long.
-
Feeder:The feeder inserts the material either continuously or step-by-step into the machine to allow sequential machining of the material.
-
JE JDE laser cutter: the laser cutting machine with or without a protective cover.The steel coil plate finally arrives on the laser cutting table, which is suitable for max coil width 1300mm and sheet 1500mm..The laser head moves along the X and Y axis to cut the raw material as programmed.
-
Programming:sheerly by China Cypcut control .
-
Unloading and separation systems:equipments for collecting the finished parts and nest plate.

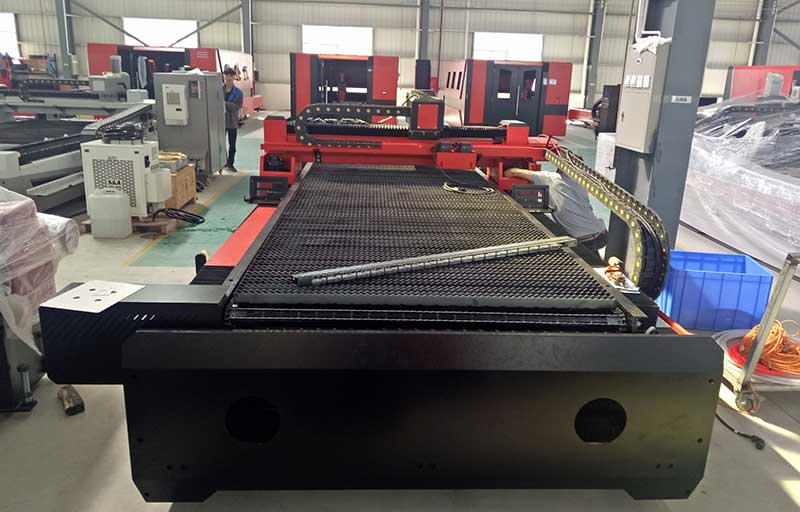

Figure 1:F3015JE Coil Steel Fiber Laser Cutting Machine

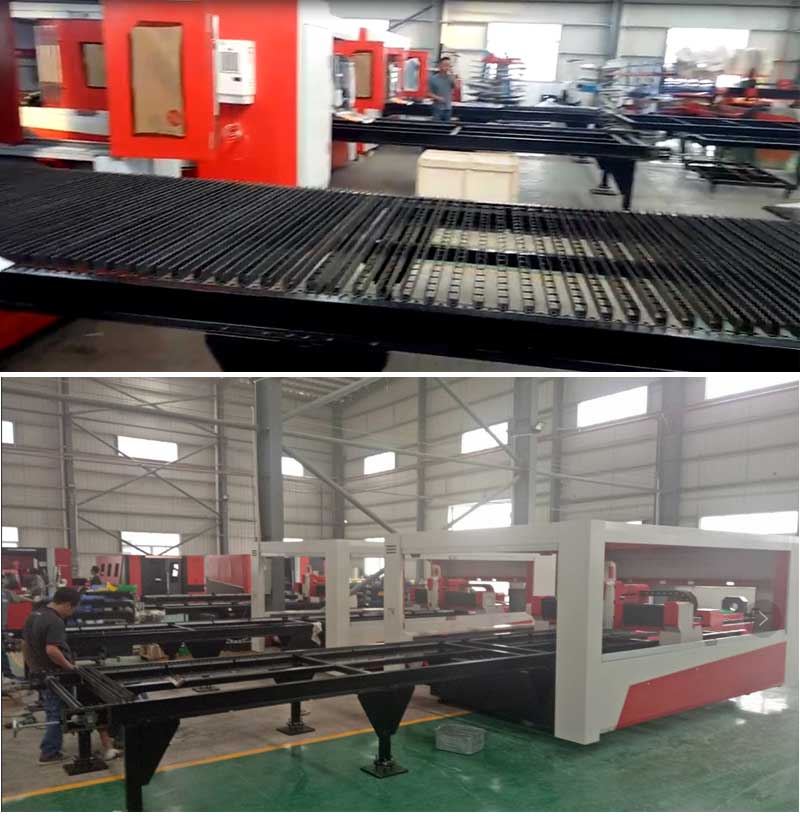

Figure 2: Customized color 3 sets F3015JDE

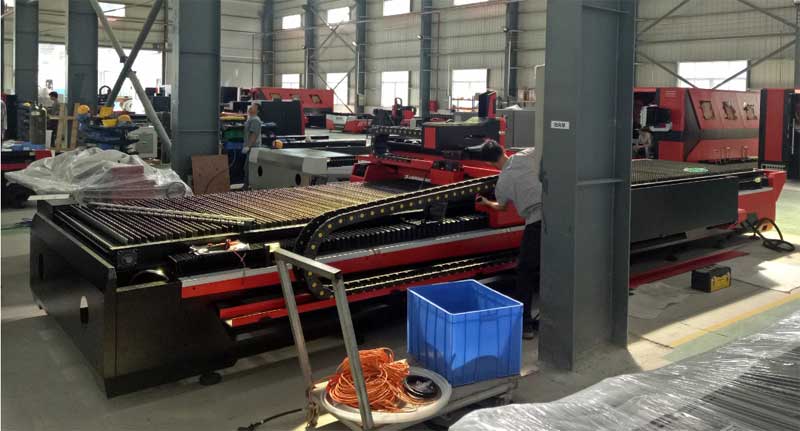

Figure 3: F6015JE Fiber Laser for Rolled Steel Cutting ,Cold Rolled Steel and Hot Rolled Steel etc.
Why choose Baisheng Laser Coil steel Metal Laser Machine?
1.Coil steel Laser cutting machine is relatively younger than steel plate laser in China. Baisheng has 3 years histories and experience in building ,such advanced rotary slats laser for steel coil cutting, products cover cutting table of different size ,closure or open type.BS laser is earlier manufacturer in the field.
2.Rich experience and acceptance of orders of customized color and design. Fast production period, quick delivery.
3.Dozens of stable running user lasers ,users visit is available .
