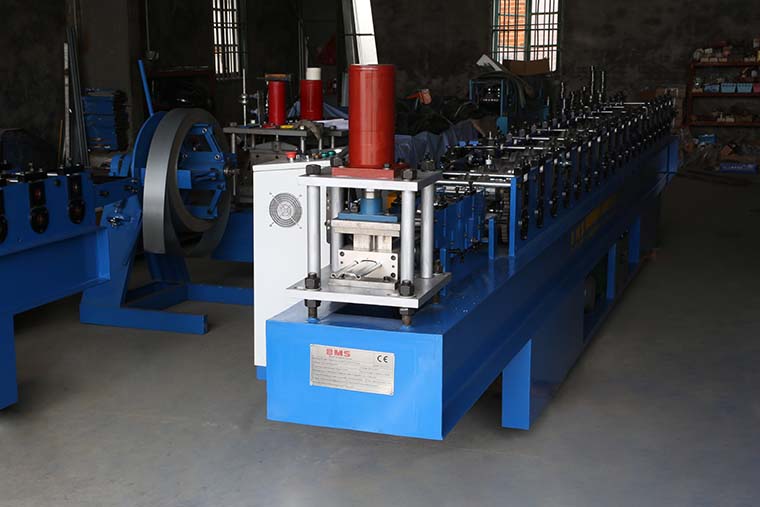

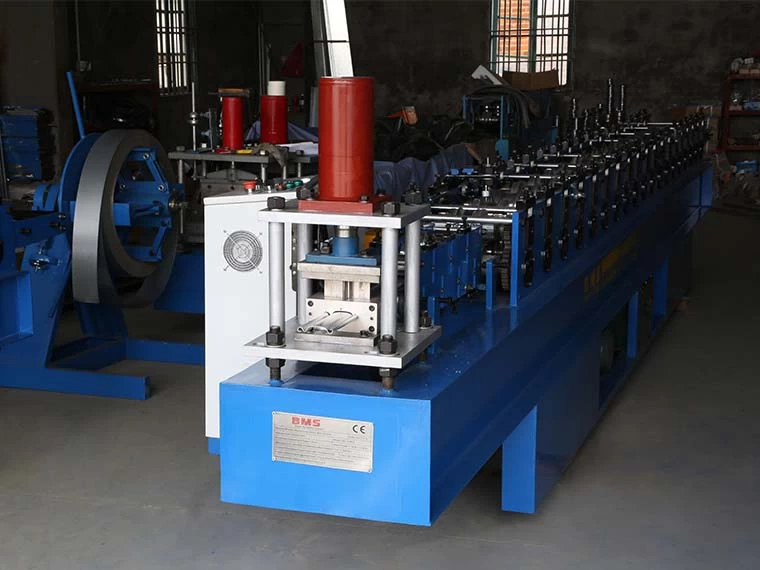

Roller Shutter Door Roll Forming Machine
1.Main features of Roller Shutter Door Roll Forming Machine
The advantages of Roller Shutter Door Roll Forming Machine are as follows:
1.Beautiful Profile
2.Save space,more convenient.
3.Easy operation, low maintenance cost
4.Stable and
durable
2.Detailed Images of Roller Shutter Door Roll Forming Machine
Machine Parts

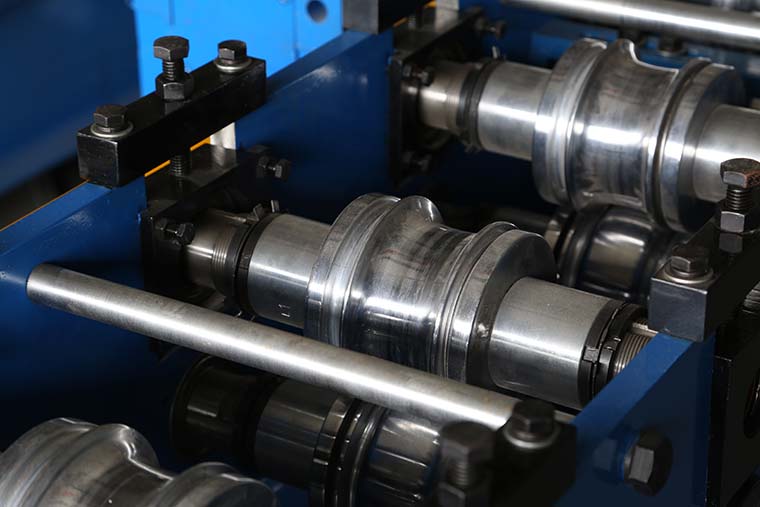

1) Roller Shutter Door Roll Forming Machine rollers
Brand: BMS
Original: China
Rollers
manufactured from high quality 45# steel , CNC lathes, Heat Treatment.
With
black treatment or Hard-Chrome Coating for options.
Body framemade from 300# H type steel by welding

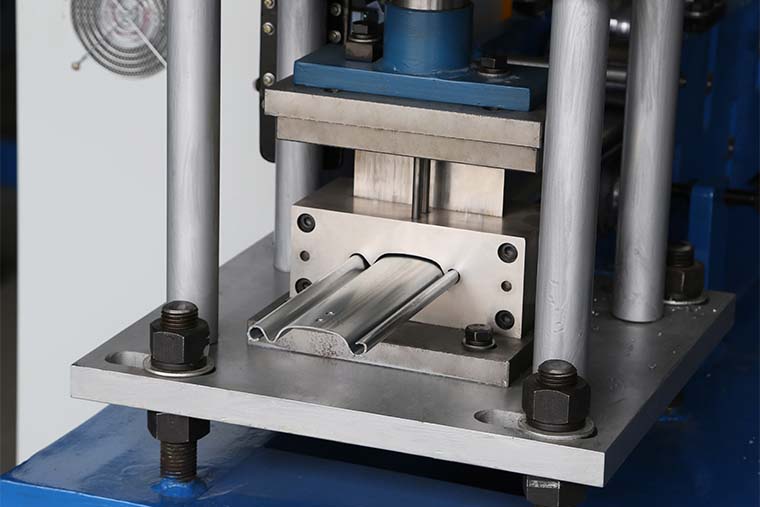

2) Roller Shutter Door Roll Forming Machine post cutter
Made
by high quality mold steel Cr12 with heat treatment
Cutter
frame made from high quality 20mm steel plate by welding

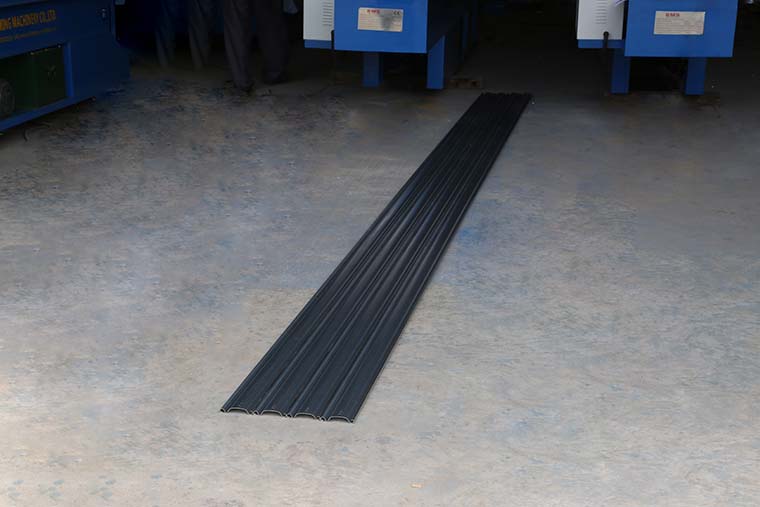

3) Roller Shutter Door Roll Forming Machine Prodoct Show

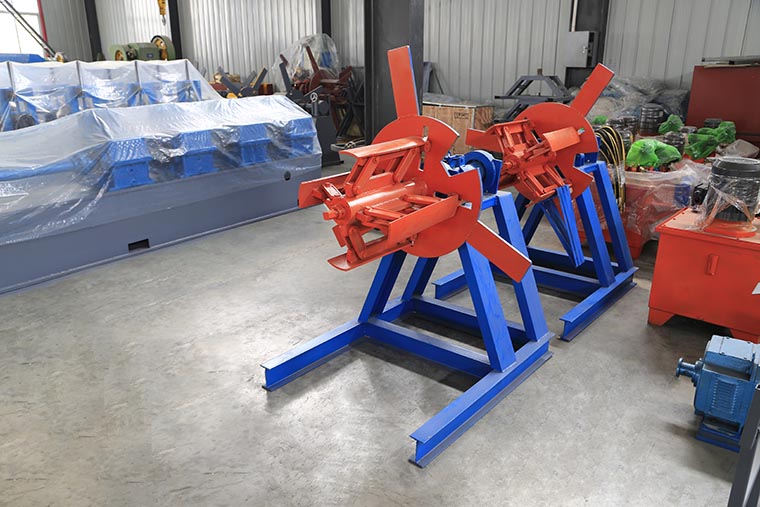

4) Roller Shutter Door Roll Forming Machine decoiler
Manual
Decoiler: one set
Un-powered,manually
control steel coil inner bore shrinkage and stop
Max.
feeding width: 300 mm, coil ID range 470mm±30mm
Capacity:
Max. 1.5 Ton
5)Roller Shutter Door Roll Forming Machine run out table
Un-powered,one
unit
Other detailes of SD11-80C Rolling Shutter
Door Machine
Shafts manufactured from 45#,Main shaft diameter=φ45/57mm,precision machined
Motor
driving,Gear chain transmission,14/19 steps to form
Main
motor: 4KW/5.5KW ,Hydraulic motor :2.2KW/3.75 KW
Frequency speed control. Forming speed approx.12-15m/min
PLC Control System (Touch screenbrand:German Schneider Electric/Taiwan WEINVIEW,
Inverter
brand:Taiwan DELTA/SHILIN,Encoder brand:Japan Koyo/OMRON)
Combined with: PLC, Inverter, TouchScreen, Encoder, etc
Cut-to-length tolerance≤±2 mm
Control Voltage 24V
User's manual in English
More details please see the video: roller shutter door machine
also you can check other relative product : metal door frame roll forming machine
After-sale service of Roller Shutter Door Roll Forming Machine
1. The warranty of SD11-80C Rolling Shutter Door Machine
is 12 months after the client receives the machine.
Within one years, we will courier the replacement parts to the client free of charge.
2. We offer technical support for the entire life of our machines.
3. We can send our technicians to install and train the workers in the clients' factories with extra cost.
Terms of trade
1. Minimum order quantity (MOQ): 1 piece
2. Delivery time: about 30
workdays
3. Port of loading: port of Xiamen
4. Type of payment: by T/T or by L/C
5. Export: Australia, UK, Ireland, Mexico, Brazil ,Israel ,Dubai, Russia ,India, Taiwan, Singapore,
Malaysia
,Thailand, Philippines, Myanmar ,Vietnam, South Africa, Mozambique,
Zambia, Zimbabwe, Nigeria, Egypt, Sudan, etc.
