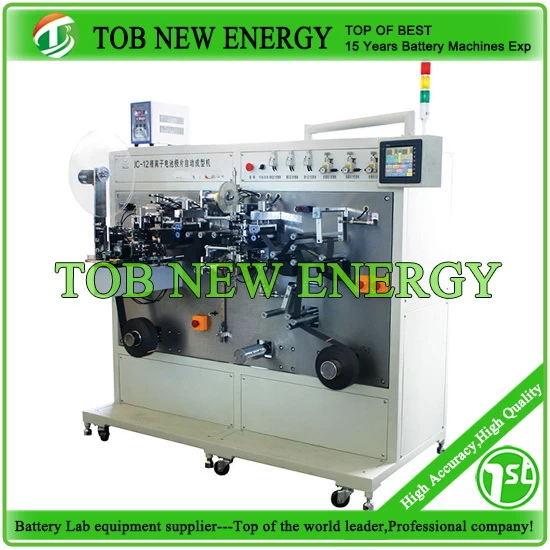

Roller Ultrasonic Welding Machine For Battery Anode Electrode

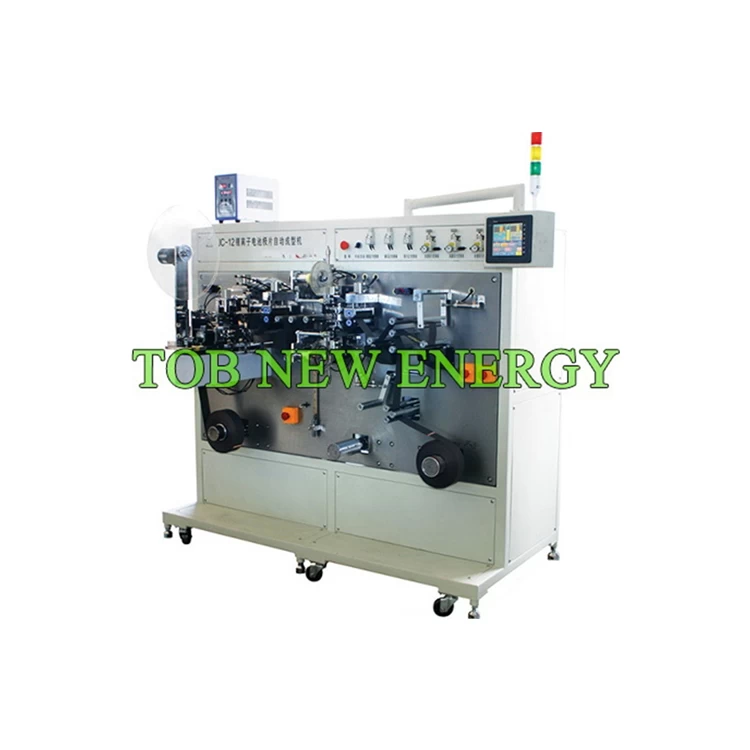

This Roller Ultrasonic Welding Machineis an automatic welding machine used for lithium battery Anode electrode Copper foil and Nitab automatic Ultrasonic welding.



Automatic Roller Ultrasonic Welding Machine For Battery Anode Electrode Tab Continuous Welding


SPECIFICATIONS



1 This Roller Ultrasonic Welding Machineis an automatic welding machine used for lithium battery Anode electrode Copper foil and Nitab automatic Ultrasonic welding.

2 After electrode slitting, put the roll electrode onto unreel axle-Battery tab auto into-Ultrasonic welding-Automatic glue stick-Auto powder sweep-Auto reel

Ultrasonic welding machine working process

Model

Roller Ultrasonic Welding Machine  TOB-JC200-4S-06B

Source voltage

AC220V/50Hz/Single phase. Customized according country request

Power

6KW

Warranty

One year limited warranty with lifetime support

Compressed air

0.4~0.8Mpa (4-8kgf/cm)

Vacuum degree

-101kp~-50kp with vacuum flow 20L/min

Operating environment

Temperature : 20~35℃

Humidity : 5~55%HR

Material

Feeding

mode

Material length

 (mm)

Material width

(mm)

Material thickness

(um)

Max outside

diameter

(mm)

Inner diameter

(mm)

Range

Tolerance

Range

Tolerance

Electrode

Roller

300-1200

100-200

0.2

100-280

5

Ф450

ф76.2

Tab

25-60

10

100-150

Ф400

Tape

68

14

50-80

ф200

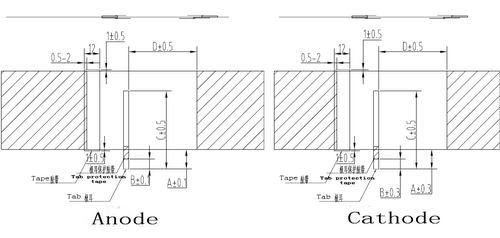

Welding area

Customized

Tab welding skewness

±3°

Welding tension

≥15N

Cutter knife life

Cathode 500000times with repair

Anode 200000times with repair

According to tab thickness

Output

≥10PPm

Cutting burr

≤0.007mm

Dimension (L*W*H)

2400*1300*2000mm

Weight

1200kg
