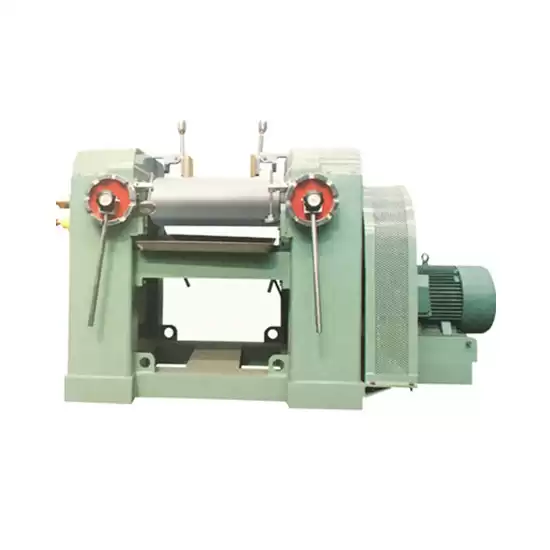

Roller Working Length 300mm 380mm/675mm 514mm and 810mm,Three Roller Mill Machine With A Speed Reducer Gear Box
Roller mill is welded by high quality steel plate. The transmission gear adapts oil-immersed type and the operative handwheel is transmitted by gear. It features beautiful appearance, convenient to operate, long life and so on. Particularly it is suitable for grinding the material with high dispersive viscosity and fine size. JRS series Three Roller Mill machine widely used in pencil leads, colorant, which need very strong force. The machine with a speed reducer gear box.
Applications
SQ series roller mill is widely used in grinding & dispersing soap, oil, cosmetics, lubrication grease, CSA new material, Carbon fiber, etc.
Applications
It is widely used in all kinds of oil, electronic paste, plant gum , soap, etc. And YSH three roller mill specialized in grinding and dispersing powder type material like peanut, guar gum, etc.
|
Configuration table
|
|
Optional○
|
|
Material of body frame
|
Stainless steel
|
○
|
|
|
Carbon steel
|
○
|
|
Adopting gap adjusting
|
○
|
|
Topple over device
|
○
|
|
Chamber
|
○
|
|
Inverter control
|
○
|
|
Model
|
SQ6/JRS150
|
SQ9/JRS260
|
SQ12
|
SQ16/JRS405SGX16
|
|
Roller diameter(mm)
|
150
|
230/260
|
305
|
400
|
|
Length of roller working surface(mm)
|
300
|
380/675
|
514
|
810
|
|
Distance from discharge hole to ground(mm)
|
660
|
720
|
680
|
730
|
|
Output(L/h)
|
25-30
|
30-60
|
60-90
|
100-140
|
|
Roll rotating speed
|
Low speed roll
|
34
|
13.4
|
148
|
11.5
|
|
Medium speed roll
|
78
|
39.4
|
43.9
|
21
|
|
HIgh speed roll
|
181
|
116.3
|
129.8
|
91.9
|
|
Main motor power(KW)
|
3
|
15
|
30
|
55
|
|
Overall dimension (mm)
|
L
|
920
|
2060
|
2400
|
3430
|
|
W
|
880
|
1420
|
1680
|
2010
|
|
H
|
1150
|
1200
|
1250
|
1500
|
|
Machine weight(kg)
|
500
|
2500
|
4800
|
6000
|
|
Packing dimension(mm)
|
L
|
1000
|
2200
|
2500
|
3550
|
|
W
|
1000
|
1550
|
1800
|
2150
|
|
H
|
1400
|
1500
|
1600
|
1900
|
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
