Roller Working Length 300mm 675mm 810mm and 1000mm,Three Roller Mill for Grinding The Material with High Dispersive Viscosity and Fine Size
Overview

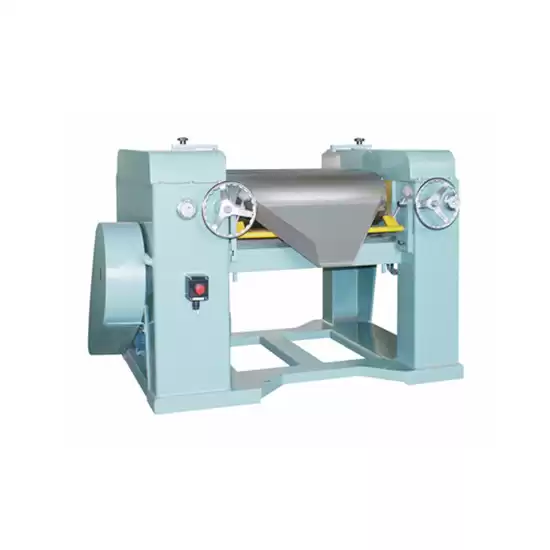

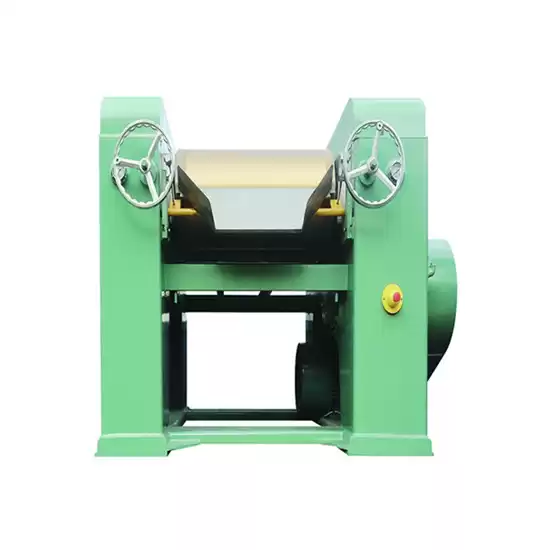

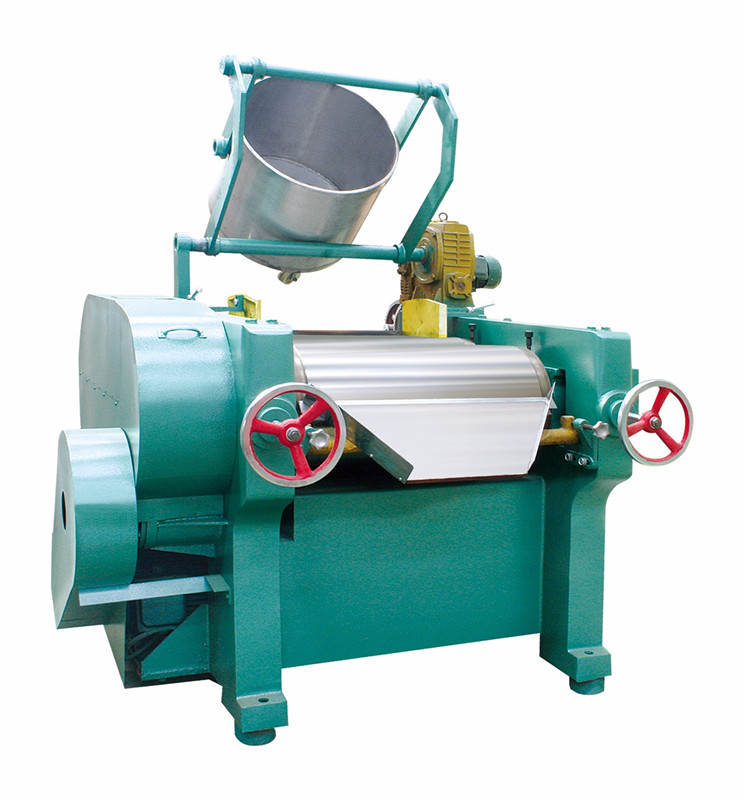

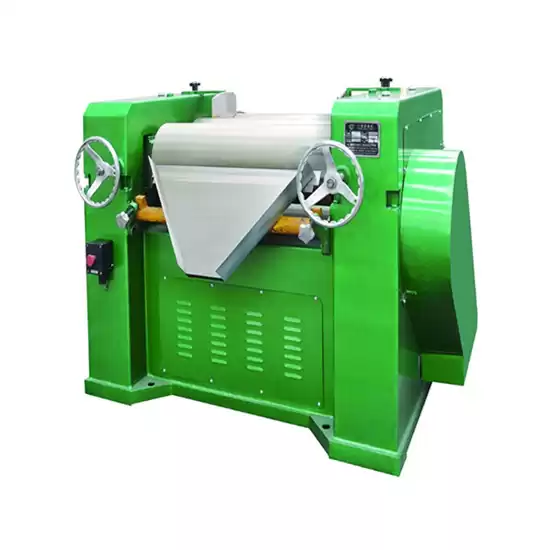

Three roller mill is welded by high quality steel plate. The transmission gear adapts oil-immersed type and the operative hand-wheel is transmitted by gear. It features beautiful appearance, convenient to operate, long life and so on. Particularly it is suitable for grinding the material with high dispersive viscosity and fine size.
Character
SG series is a new generation product on basic of traditional type,
●Chain gears driving, oil tank gear box, fewer noise, longer life time.
●Hydraulic piston driving, pressure guage.
● SUS304 stainless steel discharge hopper.
Parameter
|
Model
|
SG6*/S150
|
SG9*/S260
|
SG16*/SM450
|
SG16*L/SM450L
|
|
Roller diameter（mm）
|
150
|
260
|
405
|
405
|
|
Length of roller working surface（mm）
|
300
|
675
|
810
|
1000
|
|
Distance from discharge hole to ground （mm）
|
660
|
580/530
|
780/700
|
780/700
|
|
Output（L/h）
|
25~40
|
60~80
|
120~150
|
130~200
|
|
Roll rotating speed（r/min）
|
Low speed roll
|
34
|
23
|
14
|
14
|
|
Medium speed roll
|
78
|
64
|
43
|
43
|
|
High speed roll
|
181
|
183
|
130
|
130
|
|
Main motor power（KW）
|
2.2~3
|
7.5
|
15-18.5
|
22
|
|
Overrall dimension L*W*H（mm）
|
920*880*1150
|
1690*1330*1300
|
2150*1795*1600
|
2350*1750*1600
|
|
Machine weight（kg）
|
500
|
2000
|
5300
|
5800
|
|
Packing dimension
L*W*H（mm）
|
1000*1000*1400
|
1800*1450*1600
|
2250*1850*1950
|
2450*1850*2000
|
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
