Roller Working Length 650mm 800mm and 1300mm,Hydraulic Three Roller Mill Controlled By Hydraulic Pressure From Double-Impeller Pump

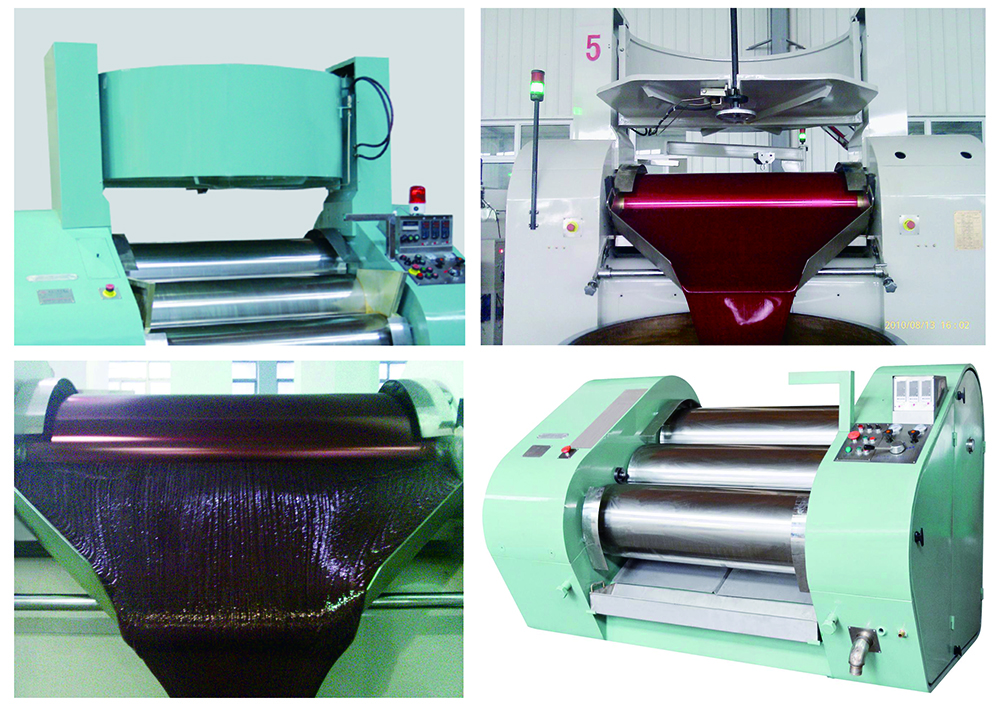

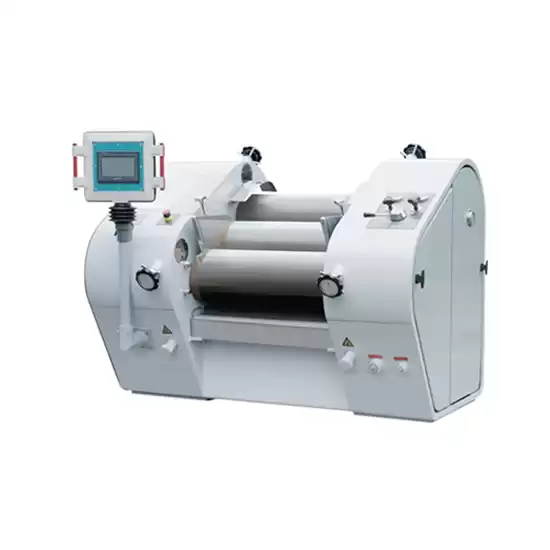

Three roller mill controlled by hydraulic pressure from double-impeller pump. The basic work of machine such as feeding, discharging and size of material is controlled by hydraulic pressure. It features high automatization content, convenient to operate and safe in use. Because the hydraulic system adapts plate type structure, its arrangement is more reasonable. The roller is cast by special alloy, its strength is high and its surface has high hardness and wear resistance property. It is an ideal equipment to grind high quality paste material.
Application
It is widely used in all kinds of ink, grease, coating, pigment, dye, e-paste, guar gum, soap, etc.
|
Configuration table
|
|
Optional○
|
|
Explosion-proof
|
○
|
|
Material of body frame: Stainless steel or Carbon steel
|
○
|
|
Topple over device
|
○
|
|
Chamber
|
○
|
|
Inverter control
|
○
|
|
Level sensor
|
○
|
|
Hydraulic system
|
○
|
|
Control-panel
|
○
|
|
PLC
|
○
|
|
Model
|
YS260
|
YS400-800
|
YS400-1300
|
|
Roller diameter(mm)
|
260
|
400
|
400
|
|
Length of roller working surface(mm)
|
650
|
800
|
1300
|
|
Distance from discharge hole to ground(mm)
|
650
|
690
|
690
|
|
Output(L/h)
|
180-250
|
250-350
|
360-450
|
|
Roll rotating speed
|
Low speed roll
|
58
|
32
|
32
|
|
|
Medium speed roll
|
153
|
128
|
128
|
|
|
HIgh speed roll
|
408
|
400-450
|
400-450
|
|
Main motor power(KW)
|
22
|
45
|
55
|
|
Total pressure of hydraulic system(Mpa)
|
6.3
|
6.3
|
6.3*2
|
|
Pressure power(KW)
|
1.5
|
1.5
|
1.5*25
|
|
Machine weight(kg)
|
2000
|
4800
|
5200
|
|
Overall dimension(mm)
|
1558*1280*1200
|
2150*1750*2295
|
2650*1750*2295
|
|
Packing dimension(mm)
|
1800*1400*1700
|
2300*1900*1900
|
2800*1900*1900
|
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
