Roller Working Length 900mm 1300mm and 1800mm, Hydraulic Two Roller Mill Machine with 400 Roller Diameter Widely Used For Food Stuff, Chocolate, Soap And Pharmaceutical, Etc
Sales Manager: Andrea
Email: Andrea@tmaxlaboratory.com
Wechat: 18250801164
- Certificate CE, IOS, ROHS, SGS, UL Certificate
- Warranty Two years limited warranty with lifetime technical support
Roller Working Length 900mm 1300mm and 1800mm, Hydraulic Two Roller Mill Machine with 400 Roller Diameter Widely Used For Food Stuff, Chocolate, Soap And Pharmaceutical, Etc
Overview

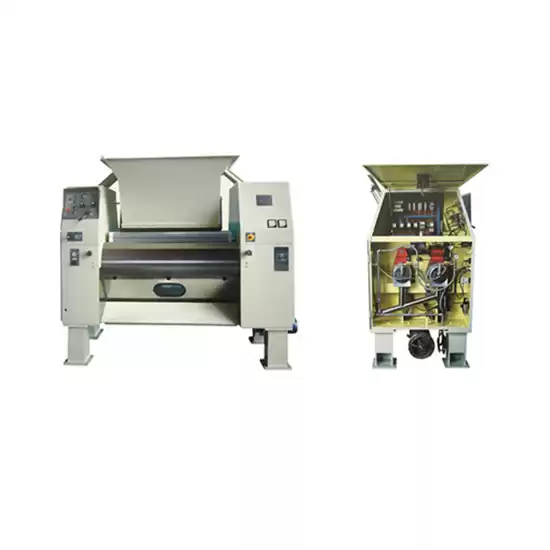

TYS series two roller mill is designed specially for dispersing rough material and adjusting material for next procedure. It is widely used for dispersing and pre-dispersing all kinds off materials such as food stuff, chocolate, soap and pharmaceutical, etc.
Model
TYS900
TYS1300
TYS1800
Roller diameter(mm)
400
400
400
Length of roller working surface(mm)
900
1300
1800
Roller rotating speed
High speed roll
258
258
258
Low speed roll
118
118
118
Motor power(kw)
45
55
75
Output 80-150um(kg/h)
2500-4500
3500-6500
5500-8500
Total pressure of hydraulic system(Mpa)
6.3
6.3
6.3
Power of hydraulic pressure(KW)
1.5
1.5
1.5
Machine weight(kg)
4500
5000
5800
Overall dimension L*W*H(mm)
2478*2780*3218
2878*2850*3218
3378*2880*3218
Model
TYS900
TYS1300
TYS1800
Roller diameter(mm)
400
400
400
Length of roller working surface(mm)
900
1300
1800
Roller rotating speed
High speed roll
258
258
258
Low speed roll
118
118
118
Motor power(kw)
45
55
75
Output 80-150um(kg/h)
2500-4500
3500-6500
5500-8500
Total pressure of hydraulic system(Mpa)
6.3
6.3
6.3
Power of hydraulic pressure(KW)
1.5
1.5
1.5
Machine weight(kg)
4500
5000
5800
Overall dimension L*W*H(mm)
2478*2780*3218
2878*2850*3218
3378*2880*3218
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
