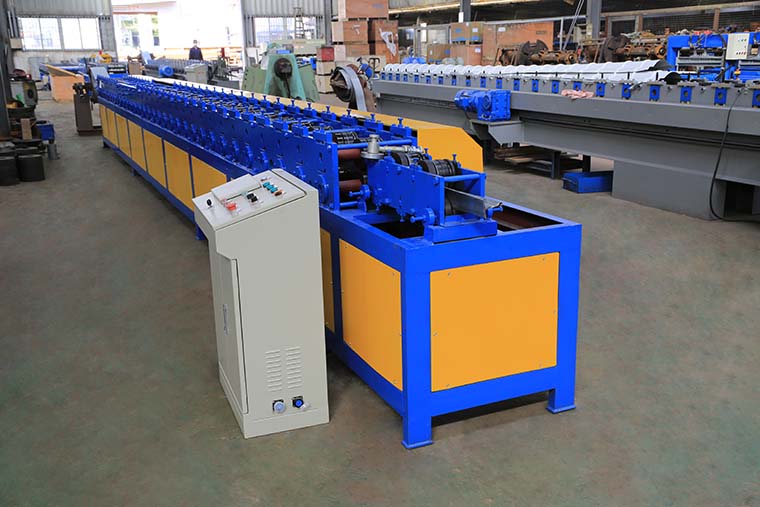

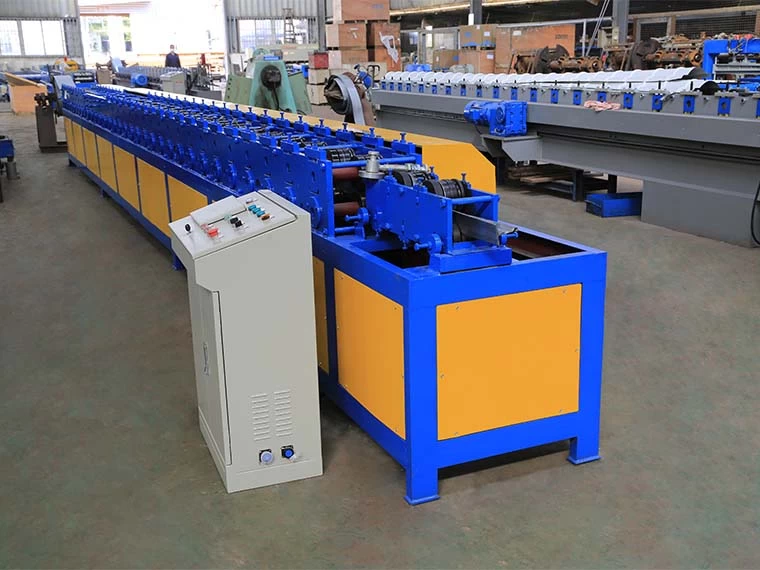

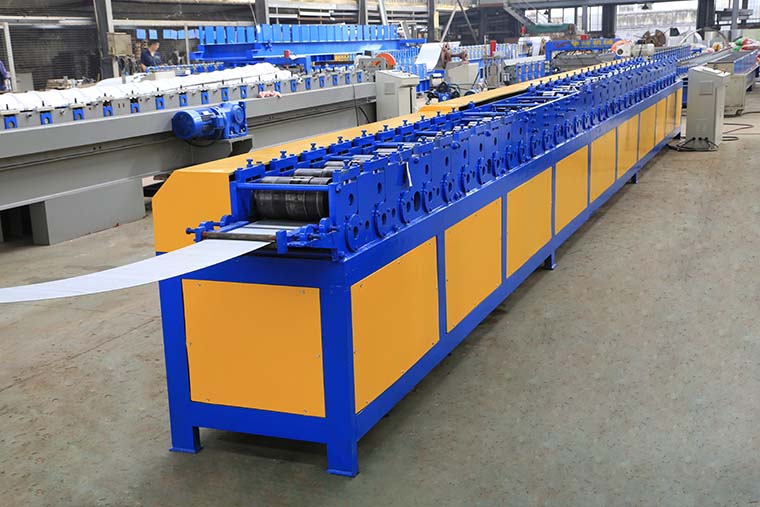

Rolling Shutter Door T Profile Machine

Easy operation, low maintenance cost

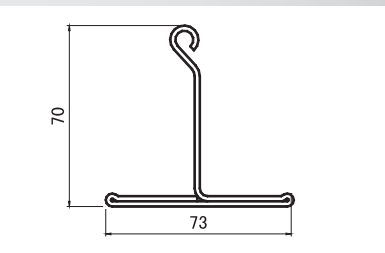

          YX70-73
T Profile Rolling Shutter Door Machine



T Profile Rolling Shutter Door Machine


 T Profile Rolling Shutter Door Machine



1.Main features of T profile rolling shutter door  machine


    The advantages of rolling shutter door machine are as follows:

    1.Beautiful apperance

    2.Save spacemore convenient.

    3.Easy operation, low maintenance cost

    4.Stable and durable


2.Detailed Images of T profile rolling shutter door machine

    Machine Parts

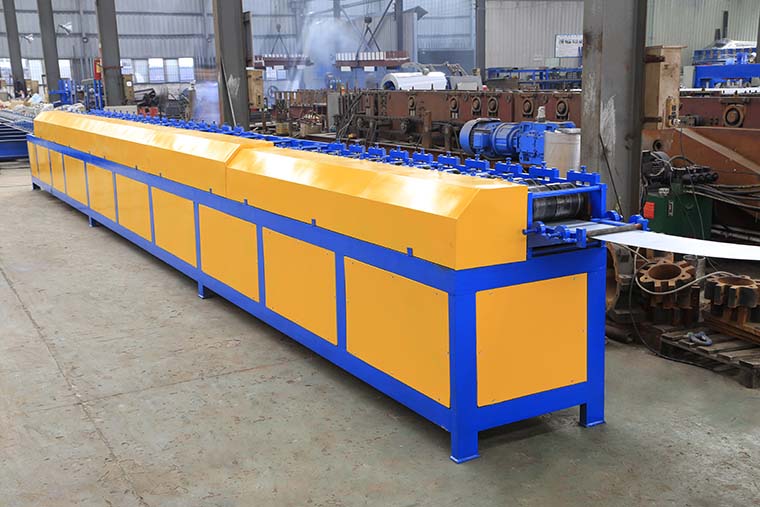

        1) Rolling shutter door T profile machine protection guard

        Brand: BMS    Original: China


 T Profile Rolling Shutter Door Machine

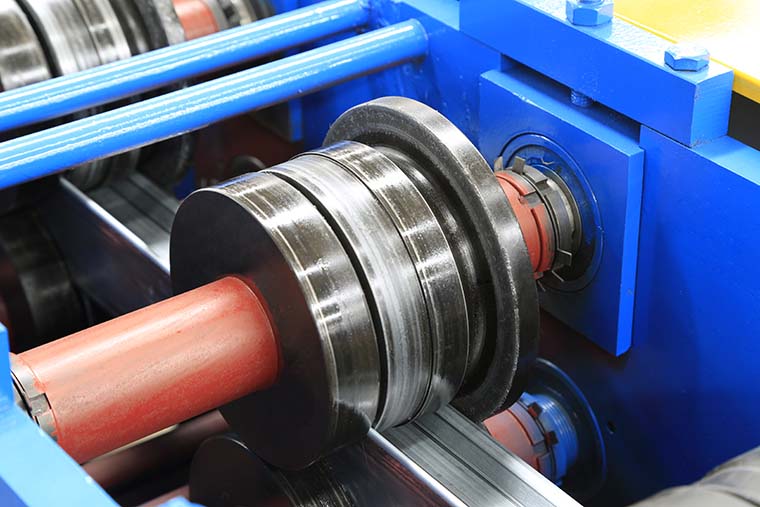

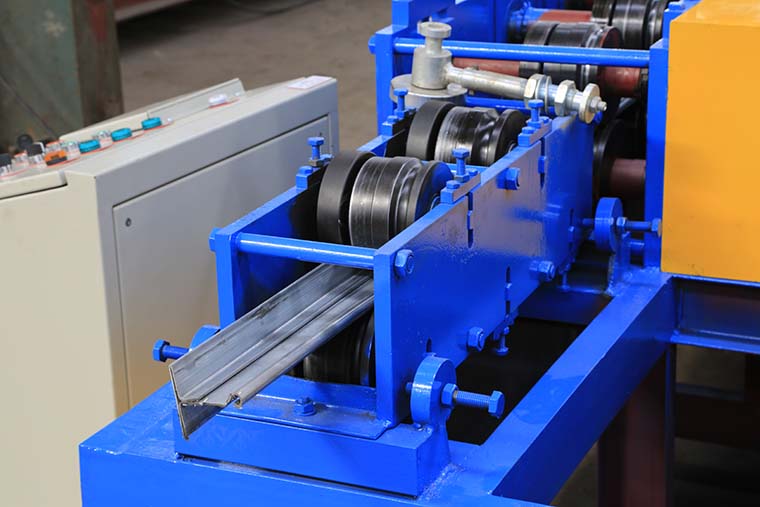

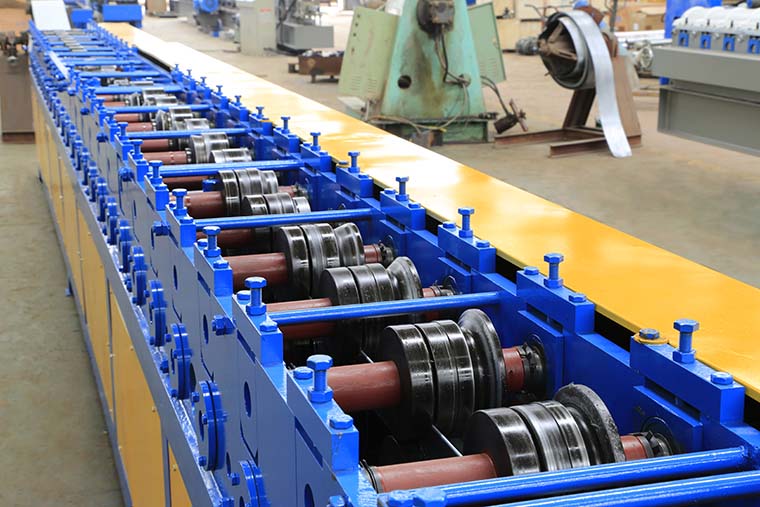

        2) T Profile rolling shutter door machine  rollers

        Rollers manufactured from high quality 45# steel , CNC lathes, Heat Treatment.

        with black treatment or Hard-Chrome Coating for options.

        With feeding material guide, body framemade from 400# H type steel by welding


 T Profile Rolling Shutter Door Machine



T Profile Rolling Shutter Door Machine

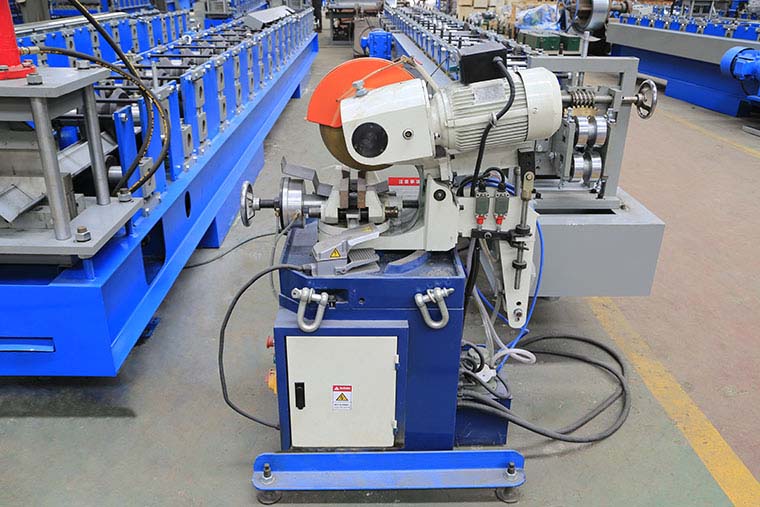

       3) T profile rolling shutter door machine outlay flying saw cutting


T Profile Rolling Shutter Door Machine

T Profile Rolling Shutter Door Machine



        4) T profile rolling shutter door  Machine decoiler

        Manual Decoiler: one set

        Un-powered,manually control steel coil inner bore shrinkage and stop

        Max. feeding width: 300mm, coil ID range 470mm±30mm

        Capacity: Max. 1.5 Ton





        6) T profile rolling shutter door machine  run out table

        Un-powered,one unit

Other detailes of Rolling Shutter Door T Profile Machine



Suitable for material with thickness 0.6-1.0mm

Shafts manufactured from 45#,Main shaft diameter=φ65 mm,precision machined

Motor driving,Gear chain transmission,22 steps to form

Main motor=5.5KW , Frequency speed control. Forming speed approx.12-15m/min



PLC Control System (Touch screenbrand:German Schneider Electric/Taiwan WEINVIEW,

Inverter brand:Finland VOCAN/Taiwan DELTA/ALPHA,Encoder brand:Japan Koyo/OMRON)



Combined with: PLC, Inverter, TouchScreen, Encoder, etc

Cut-to-lengthtolerance≤±2 mm

Control Voltage 24V

User's manualin English



For the more detail click here to see the video:



After-sale service of T profile shutter door machine



1. The warranty of T profile rolling shutter door  machine

    is one year after the client receives the machine.

    Within the one year, we will courier the replacement parts to the client free of charge.

2. We offer technical support for the entire life of our machines.

3. We can send our technicians to install and train the workers in the clients' factories with extra cost.



Terms of trade



1. Minimum order quantity (MOQ): 1 piece

2. Delivery time: about 30 workdays

3. Port of loading: port of Xiamen

4. Type of payment: by T/T or by L/C

5. Export: Australia, UK, Ireland, Mexico, Brazil ,Israel ,Dubai, Russia ,India, Taiwan, Singapore,

    Malaysia ,Thailand,  Philippines, Myanmar ,Vietnam, South Africa, Mozambique,

    Zambia, Zimbabwe, Nigeria, Egypt, Sudan, etc.
