Roman Tile Roof Solar Panel Mounting System
Roman Tile Roof Solar Panel Mounting System is particular designed for the solar panel mounting on roman tile roof. It is very easy to install in a few steps with several components. Also, it is compatible with frame and frameless modules. Systems are fully compliant with the Australian and other international standards on wind & snow load, making it suitable for a wide variety of climatic zones.
Technical Data
| Install Site |
Roman Tile Roof |
| Max Wind Speed |
≤60m/s |
| Snow Load |
≤1.4KN/M2 |
| Tilt Angle |
0 degree |
| Applicable Module |
Framed or frameless |
| Module Orientation |
Landscape, portrait |
| Standards |
AS/NZS 1170, ASCE 7-10, JIS2017 |
| Material |
AL6005-T5, SUS304 |
| Anti-corrosive |
Anodized |
| Color |
Silver |
| Warranty |
12 years |
Key Features
- We offer ten years warranty for this Roman tile roofing mount systems . Our high class SUS 304 steel and AL6005-T5 extruded alum alloy are durable and sturdy .

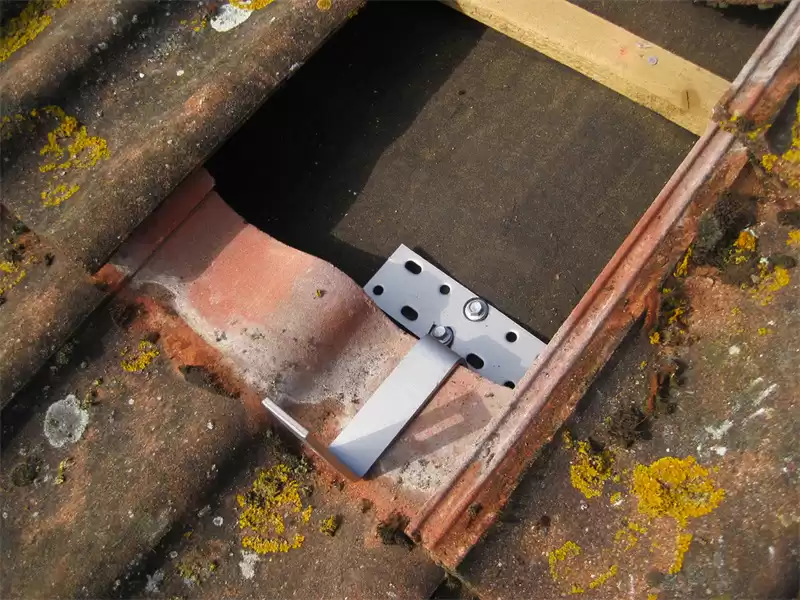

- This solar roman tile roof mounting systems don’t need to penetrate tile surface . But install side-mounted hooks on wood roof rafters .
- Hand bendable flashing and EPDM rubber boot for easy fit and superior leak protection.
- Different roof hooks for your choice, highest corrosion resistance with roof hooks and rails made of aluminium.
- High-Velocity Hurricane Zone Approved – Passed TAS 100 (a) Wind-Driven Rain Test.

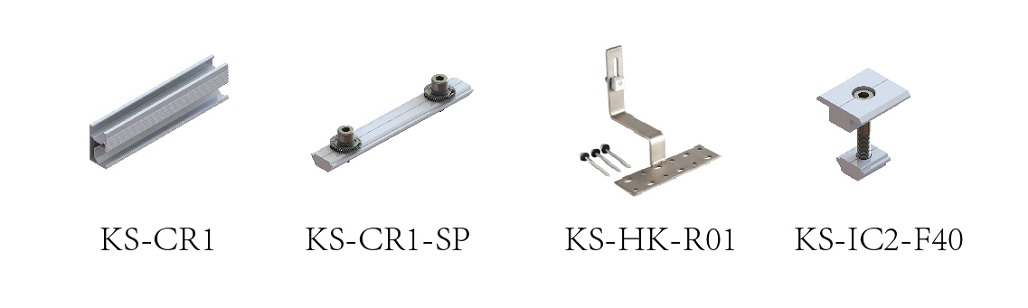

Components

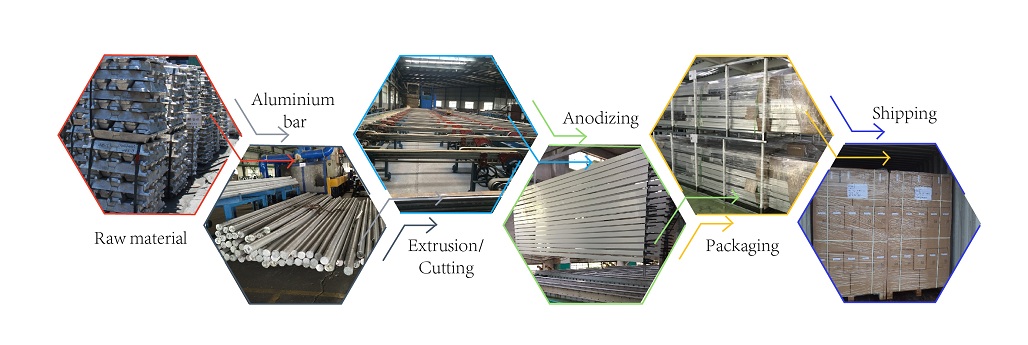

Production Process
Why choose Kingfeels ?
1. Top quality with competitive price---one of the biggest aluminum solar mounting manufacturer with integrated production in Xiamen.
2. Full anodize for all components---offering 12 year warranty and 25 year life time.
3. Excellent design ability---over 20 structure engineers, the chief engineer has 10 years' experience of structure engineering for aluminum solar mounting systems.
