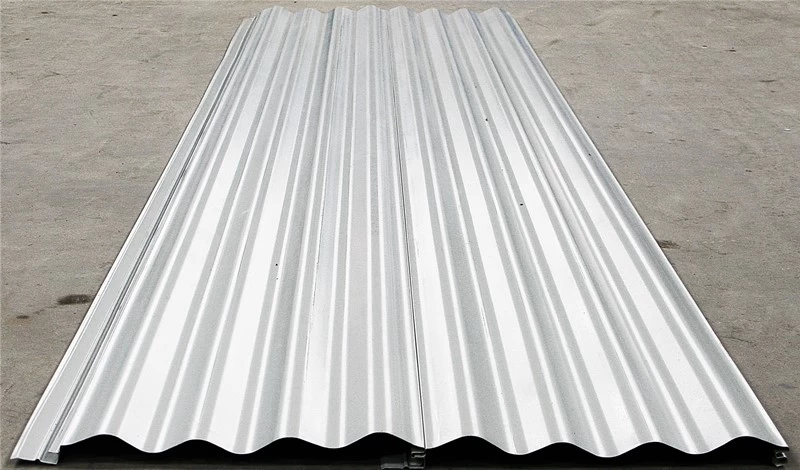

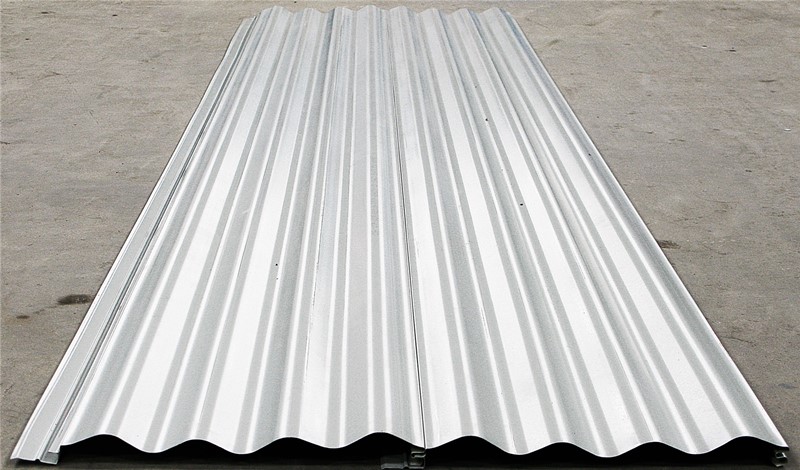

Material
Material Thickness: 0.5-0.6mm
Material Width: 500mm
Applicable Material: PPGI, PPGL
Main Technical Parameter
|
Technical Parameter
|
Description
|
|

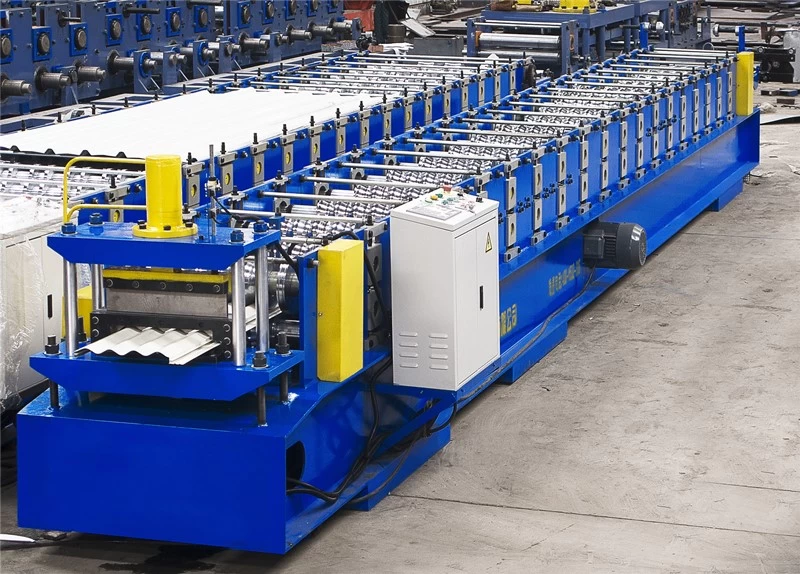

Machine Size
|
10M*0.8M*1.2M
|
|
Material Width
|
500mm
|
|
Effective Width
|
340mm
|
|
Forming Station
|
20 steps
|
|
Motor power
|
7.5Kw
|
|
Weight
|
7000KG
|
Machine Parts

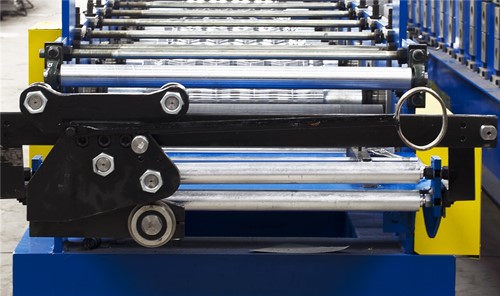

(1) Roof Panel Roll Forming Machine Pre-cutter
With feeding material guide which can avoid wasting materials

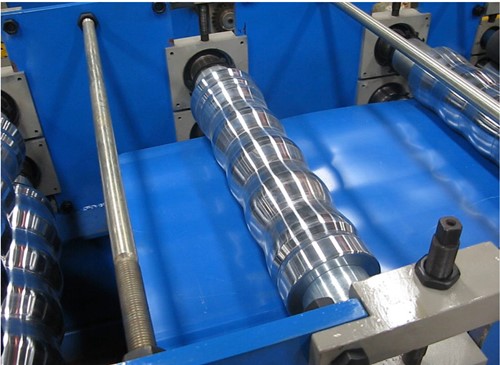

(2) Machine Rollers
Machine rollers are made by 45# steel, CNC lathers
Body frame made from H350 type steel by welding

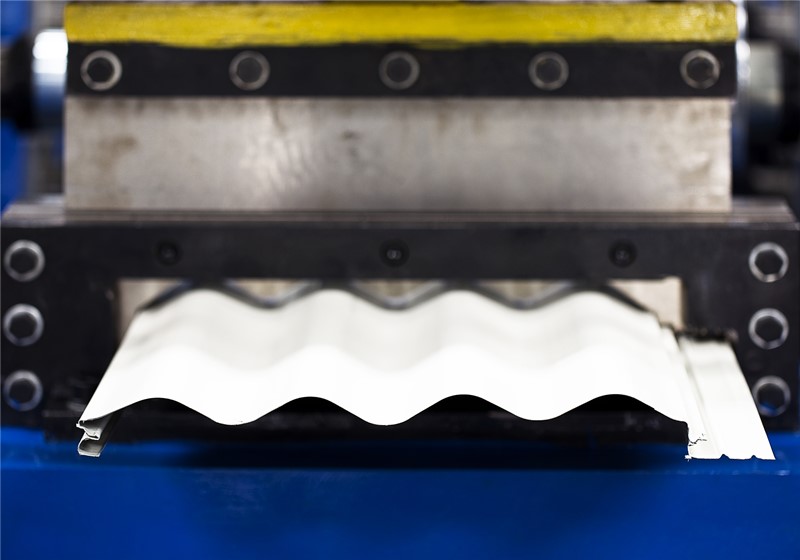

(3) Machine post cutter
Hydraulic post cutter, stop to cut
Hydraulic pressure range: 0-16Mpa
Hydraulic motor: 3.0KW
Cutting tool material: Cr12, heat treatment

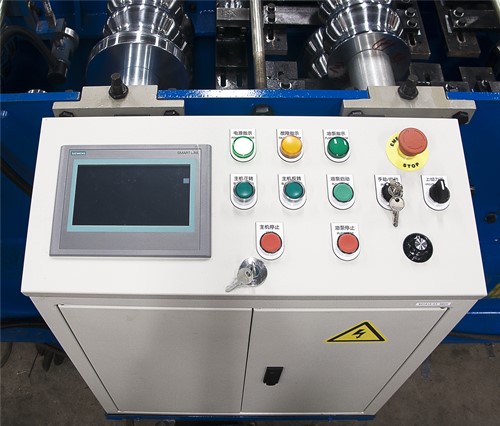

(4) PLC Control System
