Roof Ridge Cap Roll Forming Machine

widely used in many kinds of industrial factory, civilian buildings, and wall board for attached part product.

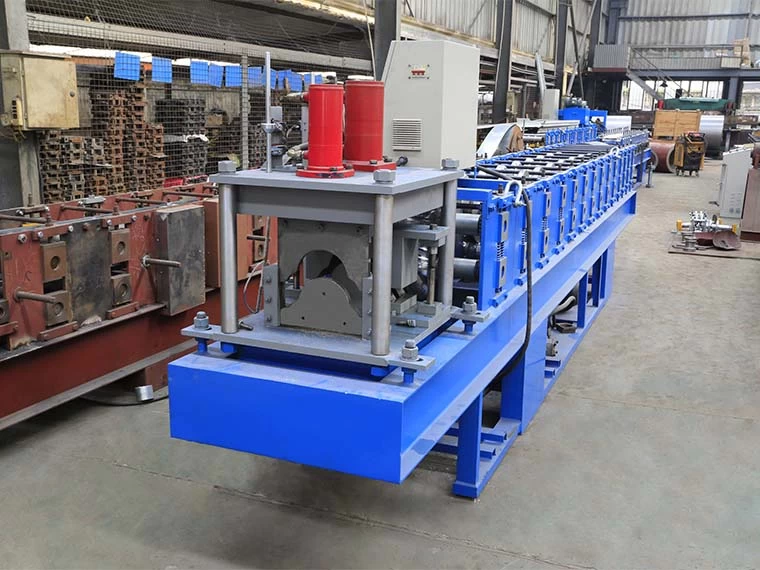

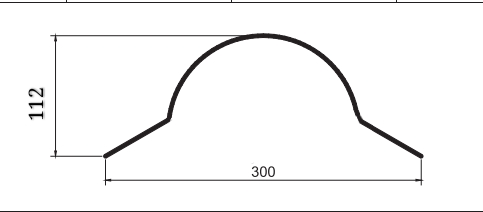

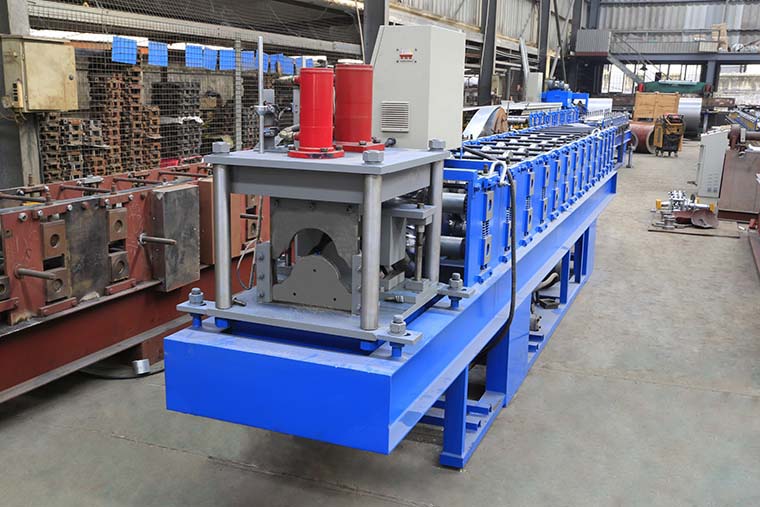

          YX112-300 Ridge Cap Roll Forming Machine





1.Main features of YX112-300 Ridge Cap machine




    The advantages of Ridge Cap machine are as follows:

    1.Widely used in many kinds of industrial factory, civilian buildings

    2. pretty appearance, durable using

    3.Instead using bending machine to make angel tile

    4.saving human resources, lower labor cost.




2.Detailed Images of YX112-300 Ridge Cap forming machine




    Machine Parts

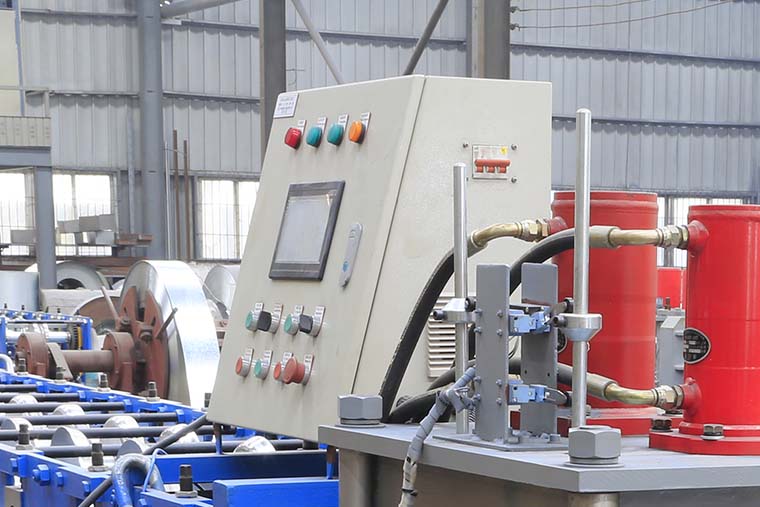

        1) YX112-300 Ridge Cap machine electronic control cabinet

        Brand: BMS    Original: China

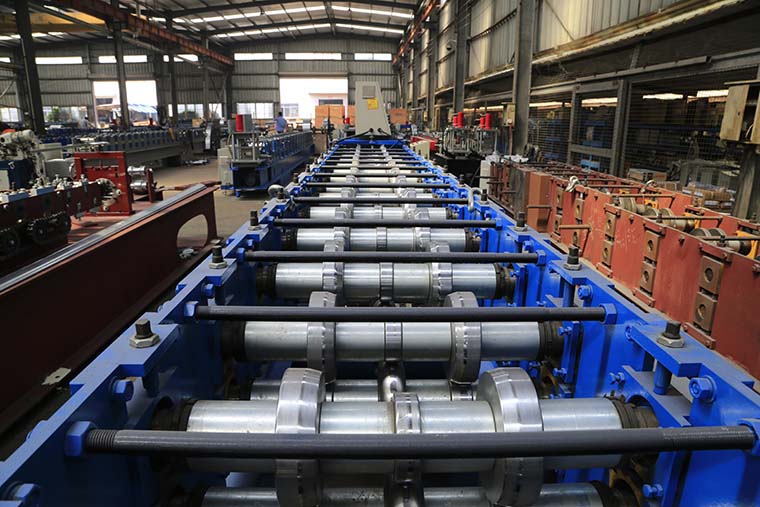

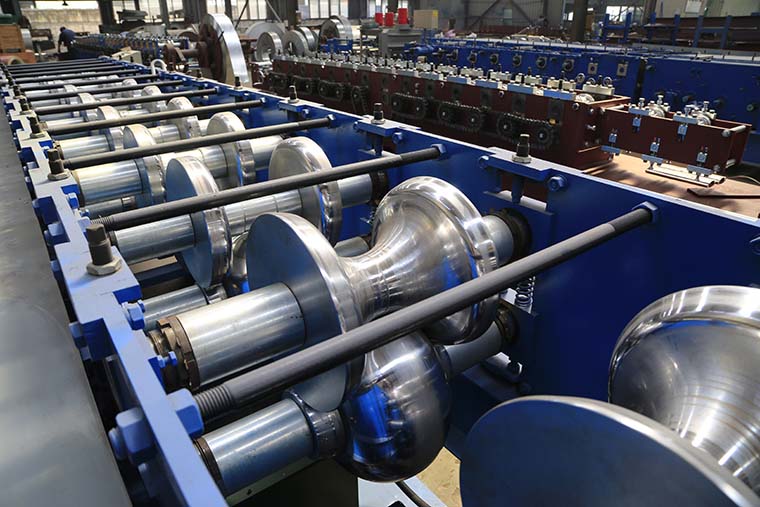

        2) YX112-300 Ridge Cap machine rollers

        Rollers manufactured from high quality 45# steel , CNC lathes, Heat Treatment.

        with black treatment or Hard-Chrome Coating for options.

        With feeding material guide, body framemade from 400# H type steel by welding

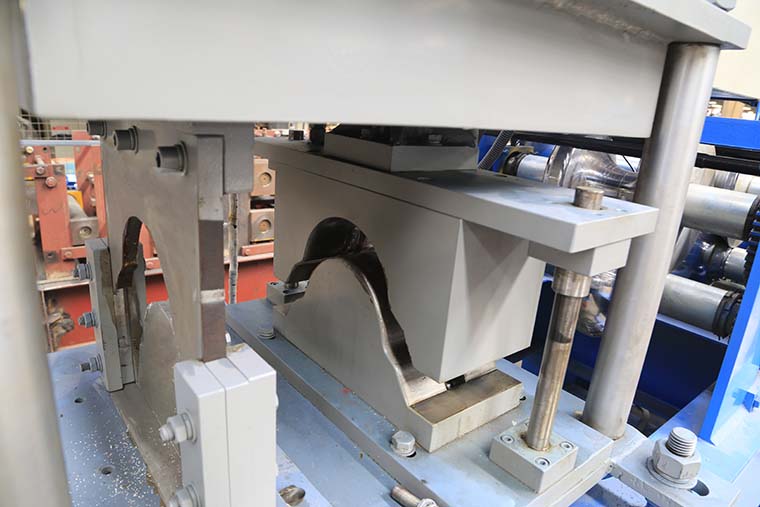

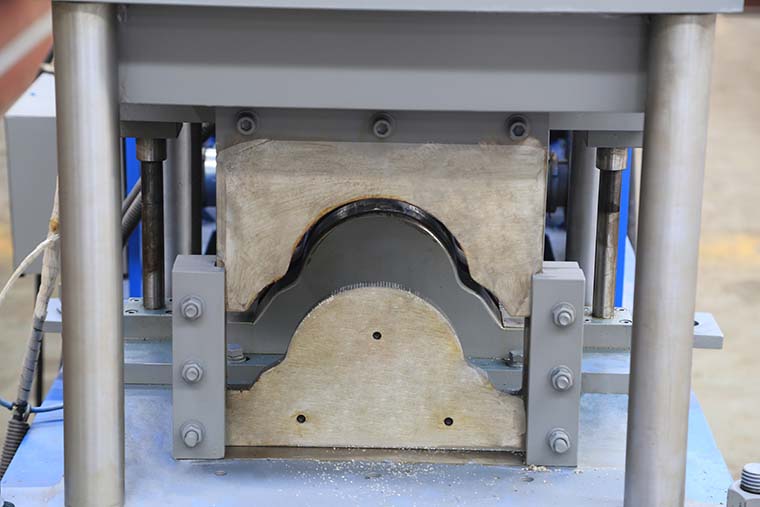

       3) YX112-300 Ridge Cap machine post cutter

        Made by high quality mold steel Cr12 with heat treatment

        Cutter frame made from high quality 20mm steel plate by welding
        Hydraulic motor:2.2KW, Hydraulic pressure range: 0-16Mpa





        4) YX112-300 Ridge Cap machine punching mold







        5) YX112-300 Ridge Cap machine decoiler

        Manual Decoiler: one set

        Un-powered,manually control steel coil inner bore shrinkage and stop

        Max. feeding width: 1250mm, coil ID range 470mm±30mm

        Capacity: Max. 8 Ton

        With 6 tons hydraulic decoiler for option


        6) YX112-300 Ridge Cap machine exit rack

        Brand: BMS    Original: China

        Un-powered,one unit






Other detailes of YX112-300 Ridge Cap machine



Suitable for material with thickness 0.4-0.6mm

Shafts manufactured from 45#,Main shaft diameter=φ75mm,precision machined

Motor driving,Gear chain transmission, 14 steps to form

Main motor=5.5KW , Frequency speed control. Forming speed approx.12-15m/min



PLC Control System (Touch screenbrand:German Schneider Electric/Taiwan WEINVIEW,

Inverter brand:Finland VOCAN/Taiwan DELTA/ALPHA,Encoder brand:Japan Koyo/OMRON)



Combined with: PLC, Inverter, TouchScreen, Encoder, etc

Cut-to-lengthtolerance≤±2 mm

Control Voltage 24V

User's manualin English



For the more detail click here to see the video:

http://www.rollforming-machinery.com/Quick-change-Type-C-Purlin-Roll-Forming-Machine_n26



After-sale service of Ridge Cap machine



1. The warranty of YX112-300 Ridge Cap machine

    is one year after the client receives the machine.

    Within the one year, we will courier the replacement parts to the client free of charge.

2. We offer technical support for the entire life of our machines.

3. We can send our technicians to install and train the workers in the clients' factories with extra cost.



Terms of trade



1. Minimum order quantity (MOQ): 1 piece

2. Delivery time: about 30 workdays

3. Port of loading: port of Xiamen

4. Type of payment: by T/T or by L/C

5. Export: Australia, UK, Ireland, Mexico, Brazil ,Israel ,Dubai, Russia ,India, Taiwan, Singapore,

    Malaysia ,Thailand,  Philippines, Myanmar ,Vietnam, South Africa, Mozambique,

    Zambia, Zimbabwe, Nigeria, Egypt, Sudan, etc.
