Roof Solar Panel Horizontal Flat Tile Hook For Roof Mounting System

Common accessories for photovoltaic brackets.



  • Payment :T/T,Paypal

  • Product Origin : China

  • Color : Natural

  • Shipping Port :Xiamen

  • Brand : Egret Solar

  • Certification :ISO/SGS/CE

  • Material :SUS304

  • Lead Time:
  • Quantity (sets) 1-5000 >5000
    EST. Time(days) 10 To be negotiated





Product name 03# Horizontal Flat Tile Hook
Model Number EG-TR-SH06
Installation Site Tile Roof
Surface Treatment Sandblasted
Warranty 12 years
Snow Load 1.4KN/M²
Wind Speed 60M/S
OEM Service Avaliable



Product Description

The horizontal flat tile hook is suitable for flat tile roofs and can be used with H-shaped rails or 40 rails. Its single adjustment can be better suitable for different flat tile roofs and adjust the installation error. Different bolts and widths are selected according to the type of bottom beam Choose different hooks.

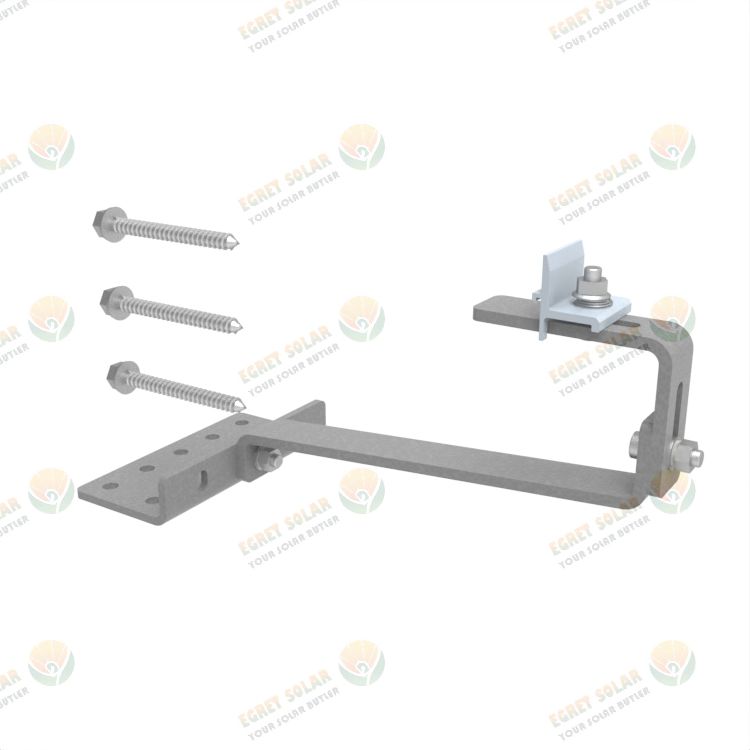

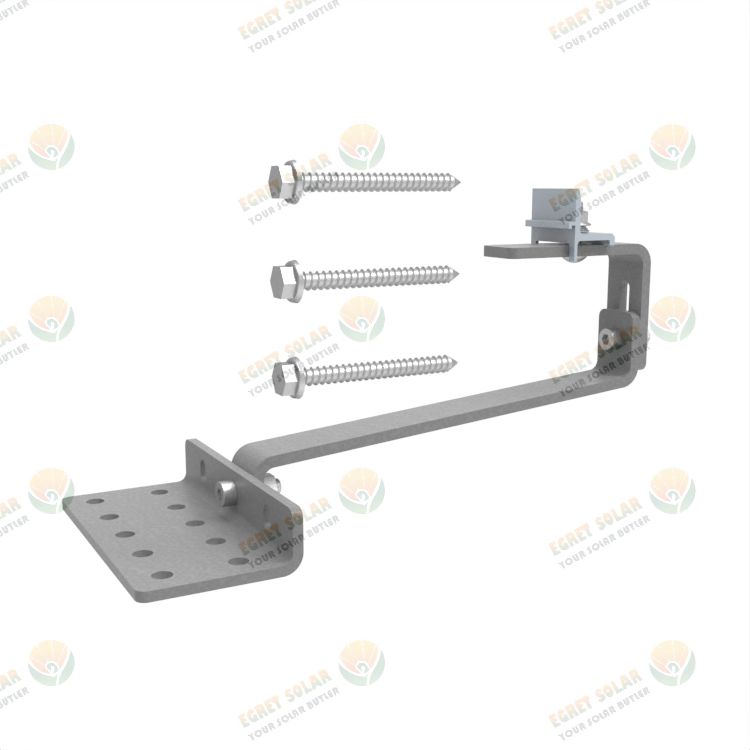

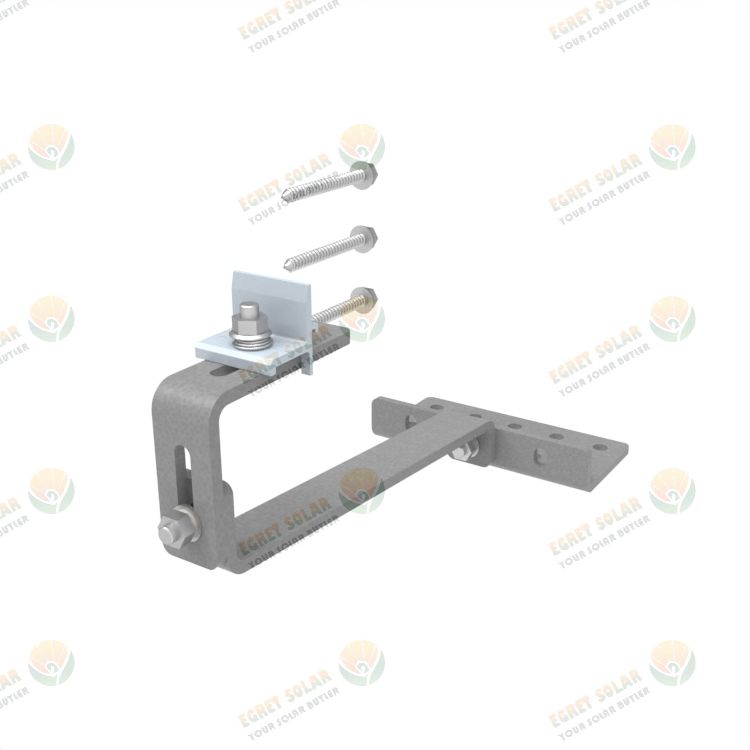

Product Show

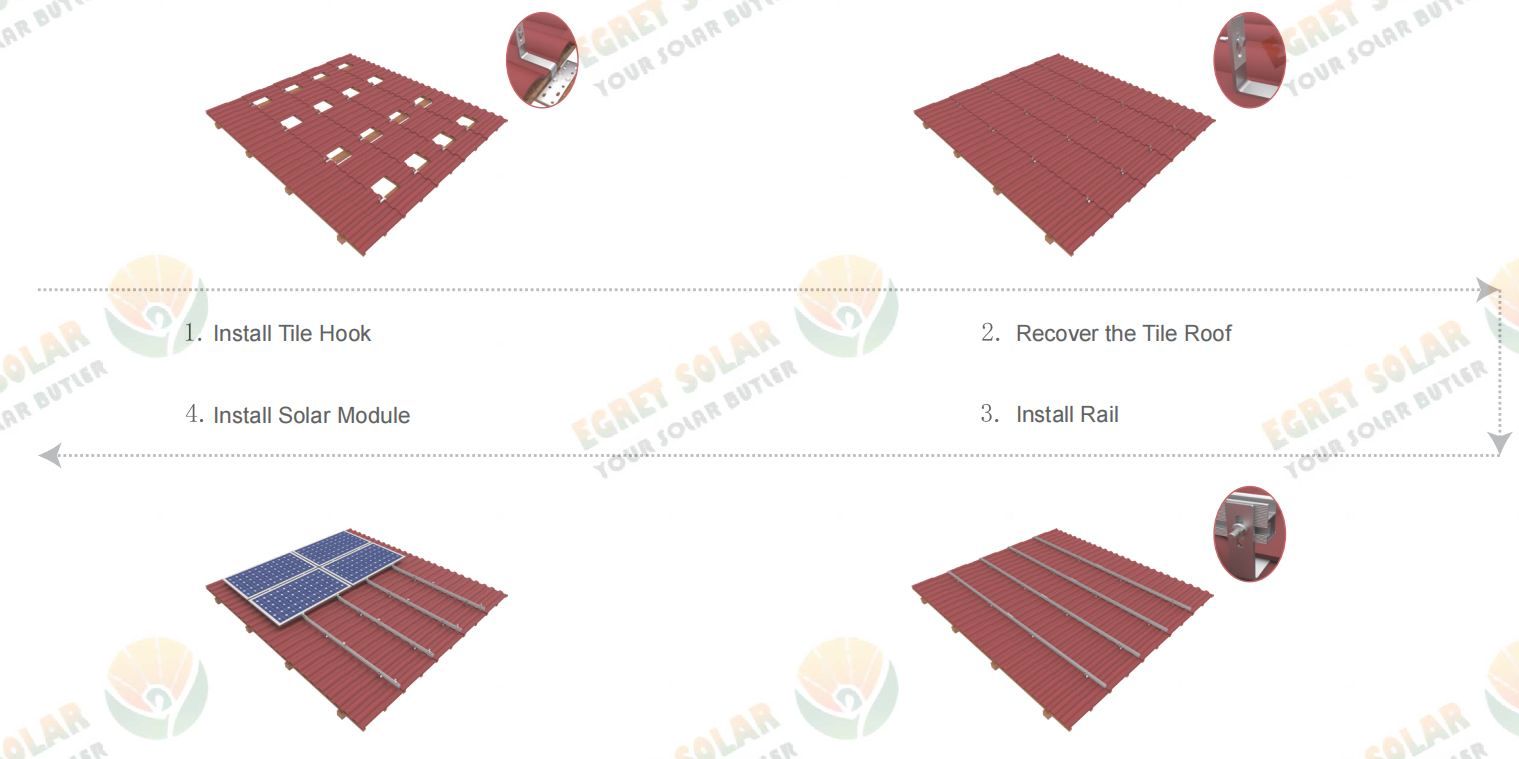

Installation Steps

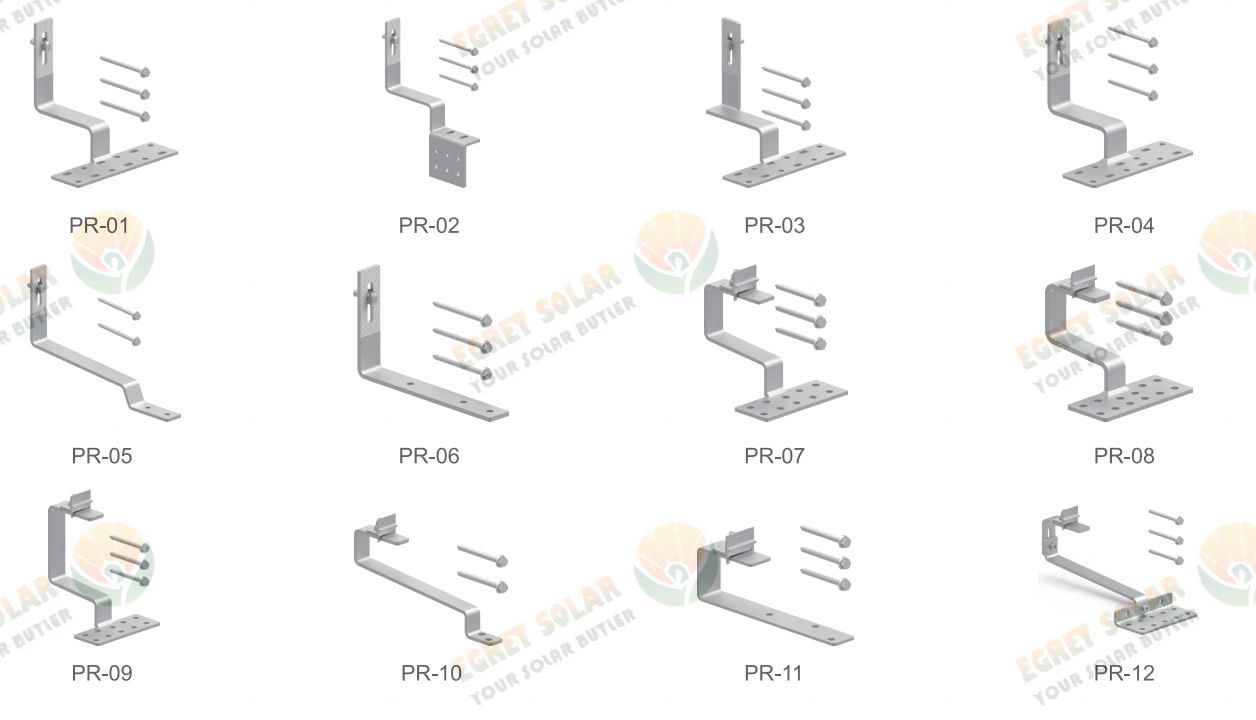

Others Model Hook



FAQ

1.The information of the solar panel:L:______mm,W:______mm,T:_____mm;Power:______w,Frame or Frameless?Panel array:row______column______

2.Wind Load:______m/s 3.Snow Load:______cm 4.Installation Angle:______degree,Portrait or Landscape? 5.Where is Solar panel installed? Salinity control or not?

1)Ground

Structure Type:Common Ground,Carport or Solar Farm?

Foundation:Concrete,Ground Screw,C Pile or U Pile?

Minimum Ground Clearance:______mm

Earth report or not

2)Roof

Roof Type:Tin Roof,Tile Roof or Concrete?

Fixed Solution:Hook,L foot,Clamp,Ballast or Tripod?

Purlin Span:______mm
