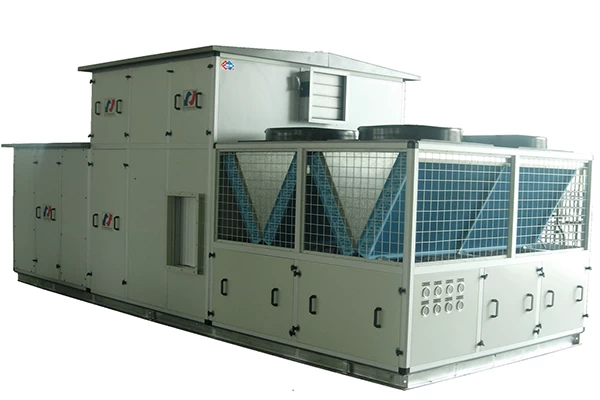

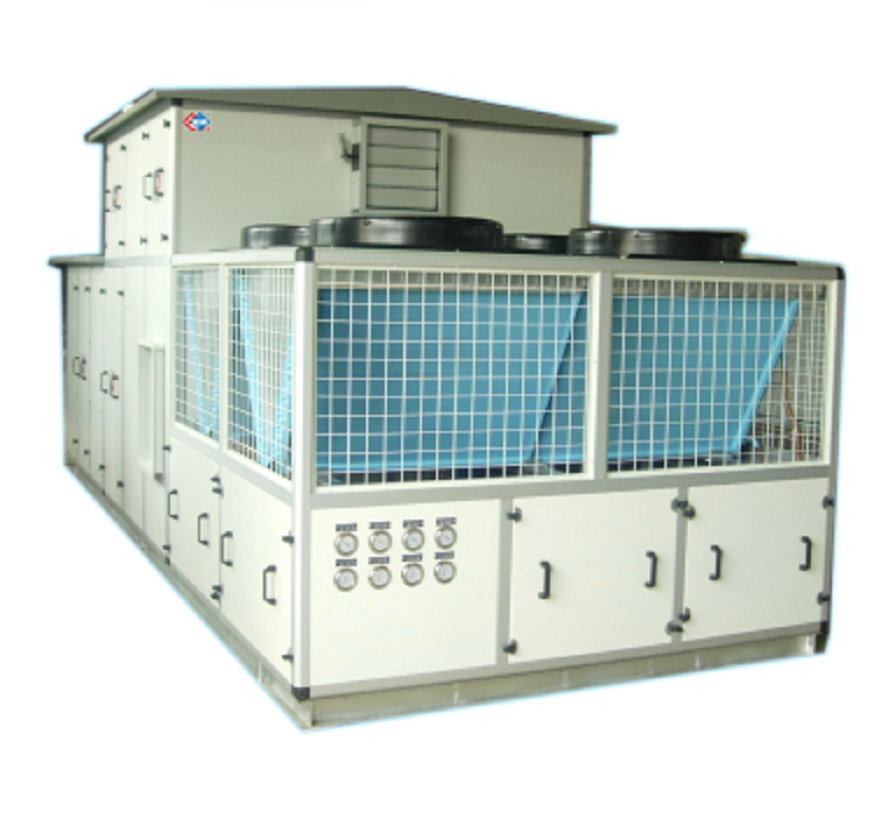

Air Cooled Packaged Industrial Air Conditioning Units for Electrical/ Chemical Factory etc.
Main Features
•Air cooled packaged industrial air conditioning unit designed for Electrical/ Chemical Factory/ Textile application
•Outdoor installation to save indoor space
•All-in one Compact air conditioning unit
•Multi-circuits for part load energy saving
•Large air quantity low speed and low noise air fan to supply comfort cooling
•Higher Cu/Al Condenser coil with ant-corrosion coated fin assembly to avoid rubbish blockage to coil lower part
•Easy removable service panels
•Microprocessor controller with all data display and setting function (memory function, auto start function and timing on-off function)
•Factory built-in Base Channel frame:
-protects unit shipment transportation,
-save installation cost and time
Advantage: Energy saving/ Low noise/ Large coil area
Frame
•Extra high strength Aluminum frame
•Anodizing surface treatment, anti-corrosion
•Cold bridge free design to ensure lowest air leakage
•Stainless steel frame available
Panel and Insulation
•POSCO color steel plate, no extra coating, anti-corrosion
Panel and Insulation
•Tolerant 500Hrs salt spray test
•Galvanized steel(GI) and stainless steel(SS) available
•Double skin, 25~50mm PU insulation
Famous Brand Blower and Motor
•Sandwiched PU foam insulation material between the plates enable the best performance of insulation, intensity, rigidity, cleanliness and noise insulation
Famous Brand Blower and Motor
•Energy saving Fan with low speed and low noise
•Type: Direct driven / Belt driven
Forward curve and backward curve
Centrifugal fan and EC plug fan
•Brand: Nicotra, Kruger, Deton, Yilida available
•Low noise long life Motor
•Brand: Siemens, ABB and Teco available
Shock Absorber
•High quality spring isolators
•Protect the unit during transportation
•Guard lock for fan start up
•Eliminate shock and noise during operation
Cooling/ Heating Coil
•Large coil face area with low air speed
•Various anti-corossion coating for option, Electrophoresis and Heresite coating available
•Type: Copper tube with Aluminium fins (Cu/Al), GI/SUS frame
Copper tube with Copper fins (Cu/Cu), GI/SUS frame
•Rows: 4R/6R(can be 2R+4R design)/8R (can be 4R+4R design)
Stainless Steel Drain Pan
•Slop type design, no drain water carryover
•Avoid the micro-organisms growth inside the drain pan
Antimicrobial Drain Pan available upon application
•SteriTouch technology Dust Free Drip Pan Coating
•Antimicrobial surface
•Good exterior durability and corrosion resistance
•Non-toxic, comply with BS476 part 7
Our services:
Solutions
H.Stars offers One Stop Solutions for
•Pharmaceuticals industry
•Electronics industry
•Automobile industry
•Printing and food industry
•Commercial building
•VOC treatment and environment protection
•Indoor air quality
•Marine ventilation
Services
•Consultancy
•System Design
•Technical support
•Customized manufacturing
•General testing before delivery
•Spare parts supply according to order quantity
•Long warranty period
•OEM service available
Welcome co-operation of energy saving products development
H.Stars supplies A/C units to oversea and domestic markets
•Stable and timely supply guaranteed
•Carton box and wooden case packing available
•Customized packing acceptable
