Product Information
1. Description
Custom LSI and hybrid circuitry makes this driver ultracompact and power efficient. Therefore, by
utilizing a DC power supply of 24V or 36V (as is common to solenoid valves, etc.), several units can
be connected to a simple programmable controller or personal computer with great economy of
wiring.

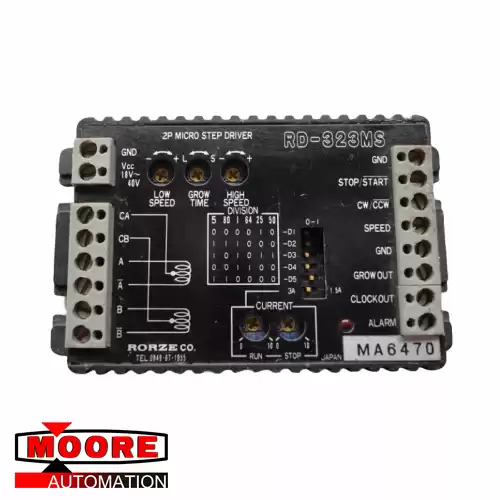

The RD-323MS is high resolution step motor driver featuring selectable microstep. The user can
select from 50, 64, or 80 microsteps/step using dip switches D1 to D5.
Also, the unique feature of this driver is its user selectable clockout for 1 to 80 pulses/step (1 to 80
pulses output per basic step angle).
2. Features
･ High power (3A/Phase max.)
･ Large supply voltage range (18 to 40VDC)
･ Selectable microstep (50, 64, or 80 microsteps/step)
･ Selectable clockout (1 to 80 pulses/step)
･ Because of built-in oscillator, RD-323MS can combine with PLC, micro computer, etc. as well as Rorze controller easily.
･ Can change RPM by analog voltage of SPEED terminal
･ Circuit protections to protect against overheating, over current and low supply voltage
･ Auto. current down to reduce heat generation when motor is stationary
