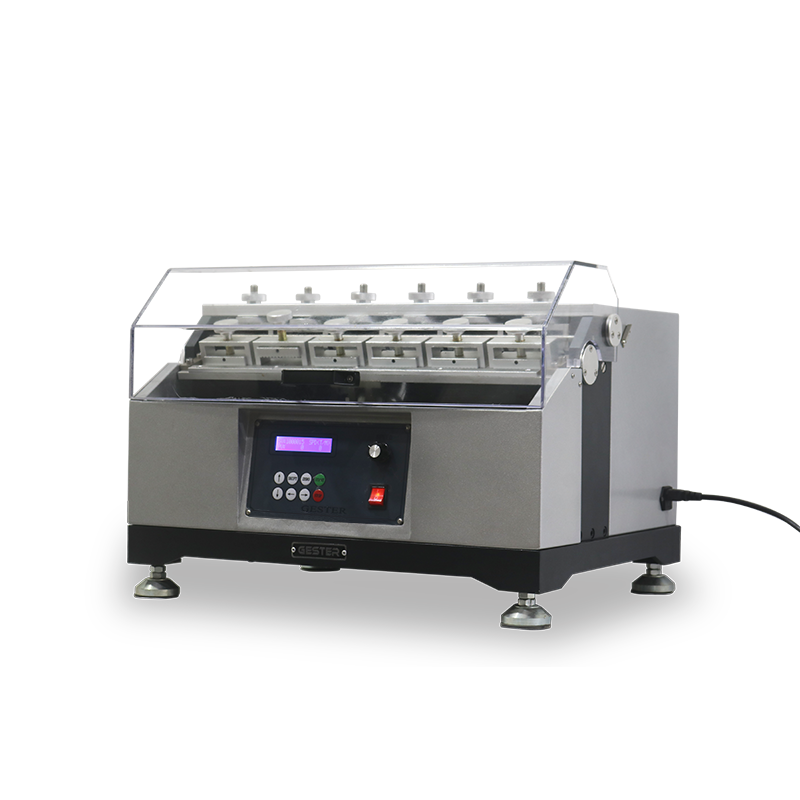

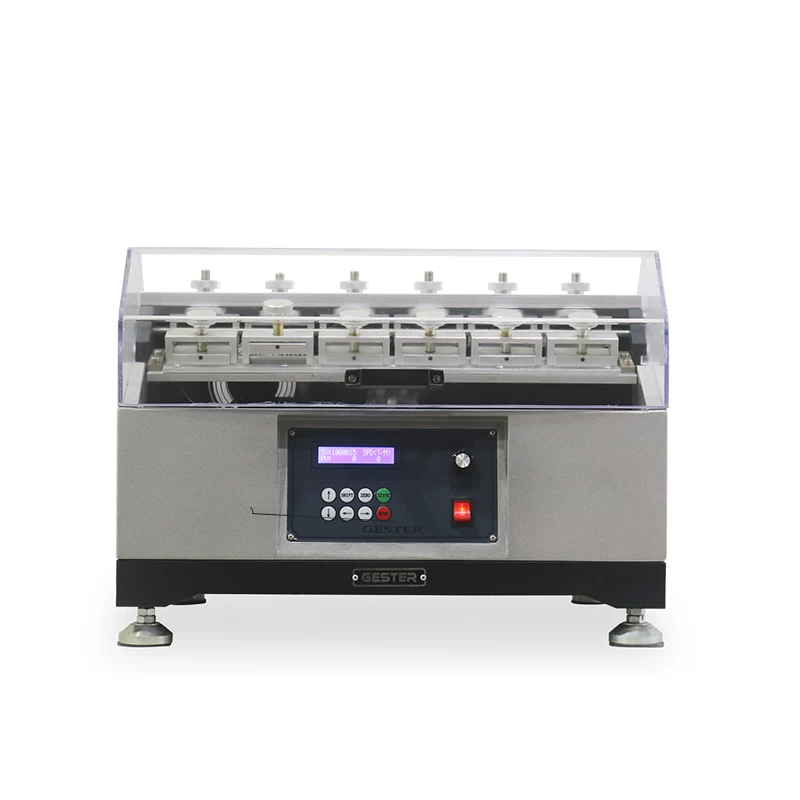

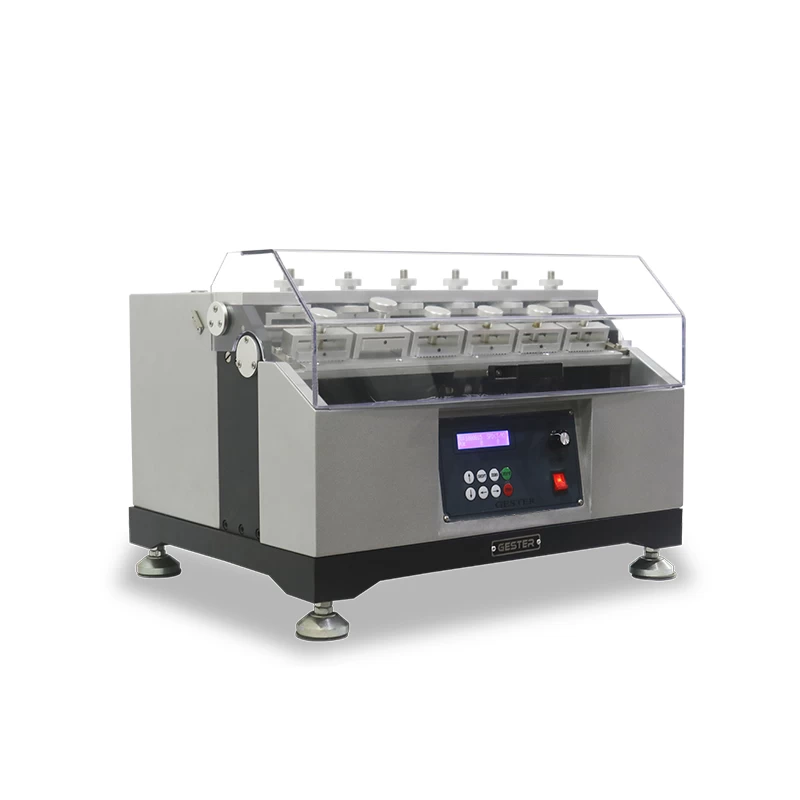

ROSS Flexing Tester GT-KB05A
Product Introduction
|
Application:
ROSS Flexing Tester is uesd to determine rectangular bending test of rubber products, shoe soles, PU, PVC, TPR foam and other materials. And inspect its degree of damage, cracking and reduced decline by continuously stretch and bending.
Standards:
ASTM D1052, SATRA TM60, BS5131 : 2.1, GB 20265, ISO 5423, HG/T2411,
ISO 20344 Section 8.5
|

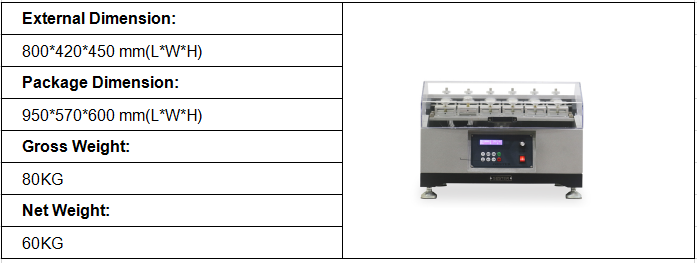

Dimensions

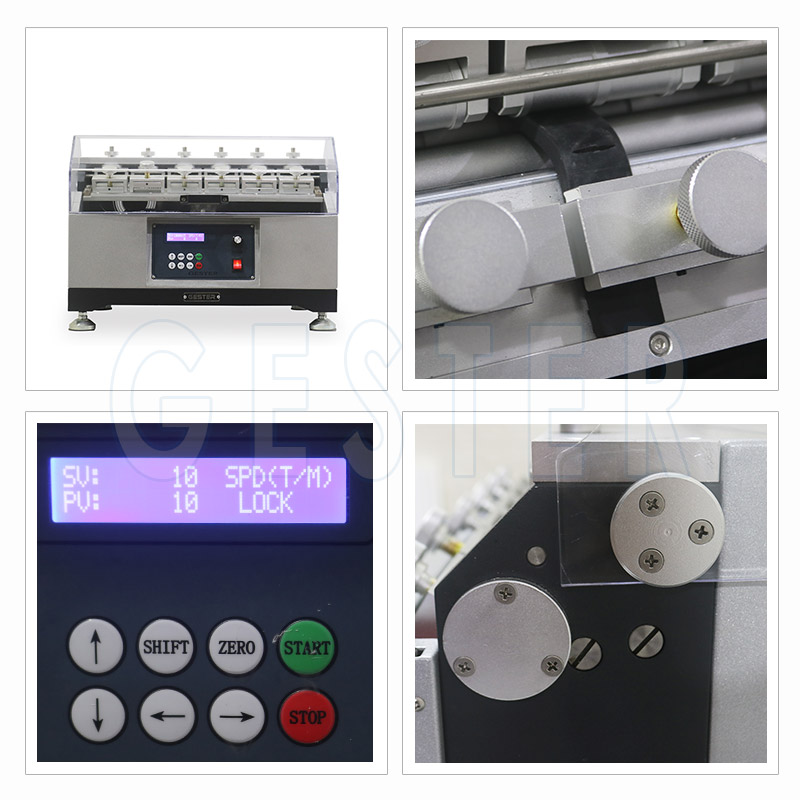

Feature
1. Body paint baking processed, easy for maintenance.

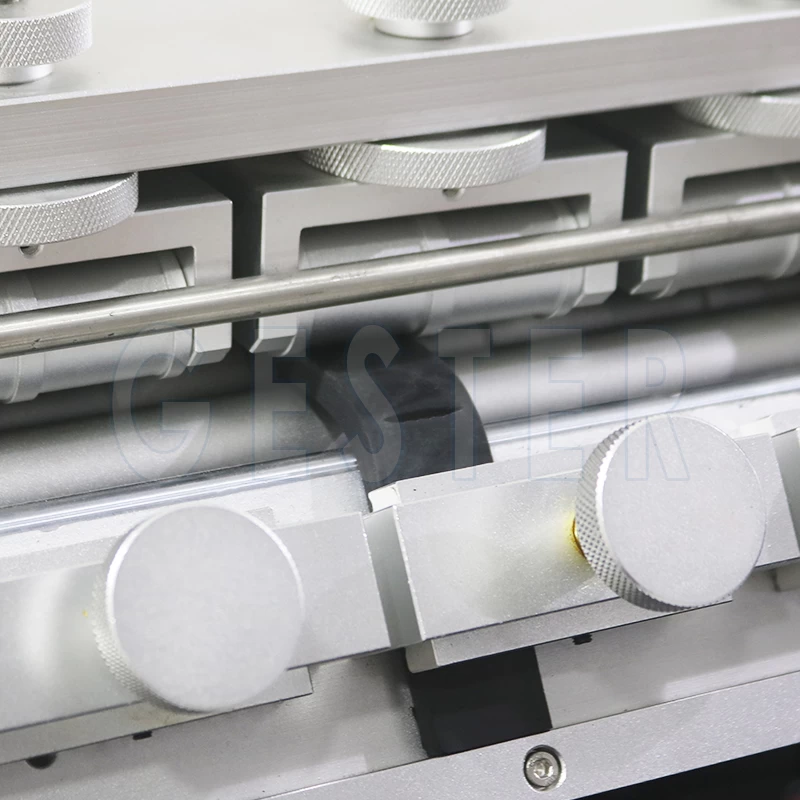

2. Fixture in aluminum material and surface processed with oxidation.

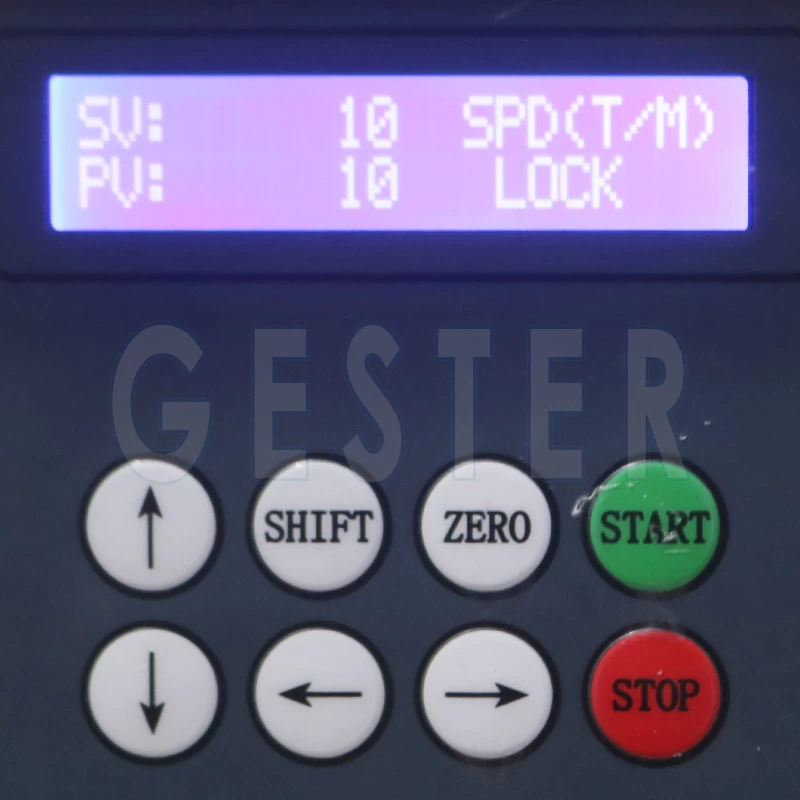

3. Equip with digital counter, automatically stop after test finished.
Key Specifications
Model
|
GT-KB05A-1
|
GT-KB05A-2
|
Fixture
|
6 sets, can test 12pcs samples
|
Bending angle
|
90±2°
|
Bending speed
|
100± 3 cpm
|
60± 5 cpm
|
Winding shaft radius
|
5± 0.3mm
|
Specimen dimension
|
152 * 25mm
|
150±5 * 25±2mm
|
Counter
|
LCD, 0~99,999,999
|
Dimension(W×D×H)
|
80×42×45cm
|
Weight (about)
|
60 kg
|
Power supply
|
1∮AC 220V 50/60HZ 3A
|
Standards
|
ASTM D1052
|
SATRA TM60, BS5131 : 2.1,
GB 20265, ISO 5423, ISO4643
HG/T2411, ISO 20344 Section 8.5
|
Standard accessories
|
1pc
|
Chisel cutter(2.5mm) for GT-KB05A-1
|
|
1pc
|
Chisel cutter(2mm) for GT-KB05A-2
|
|
1pc
|
Power line
|
Application Industry
All the material blow can be tested on the ROSS Flexing Tester
Product Video

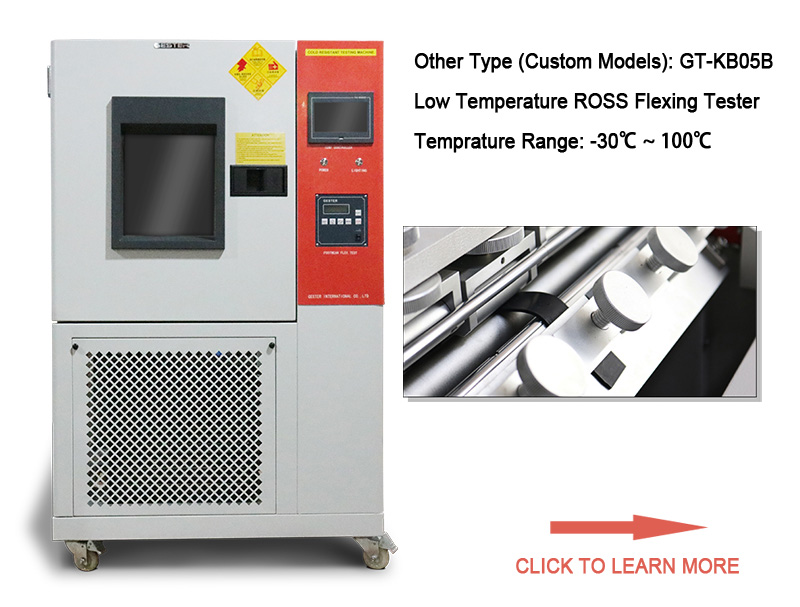

Custom Models for Ross Tester
