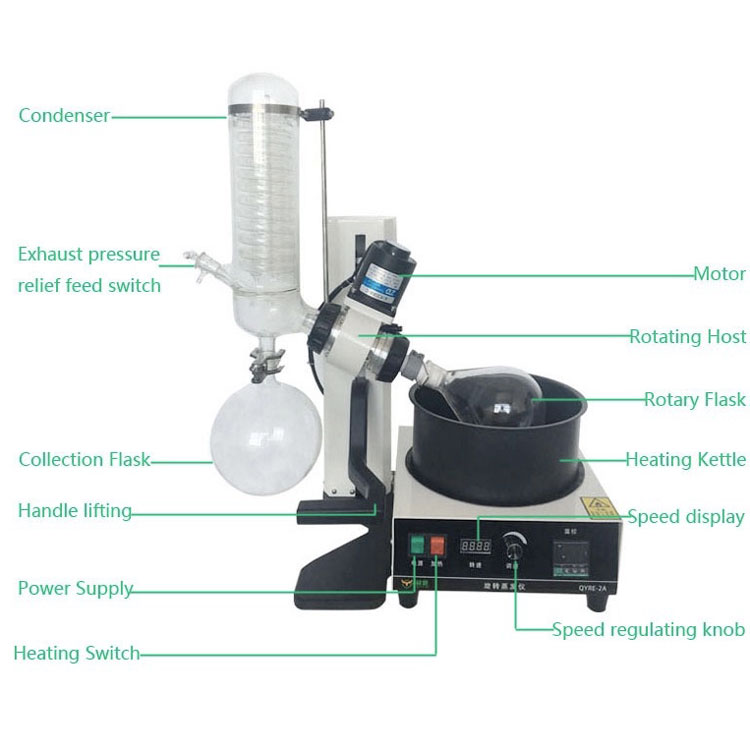

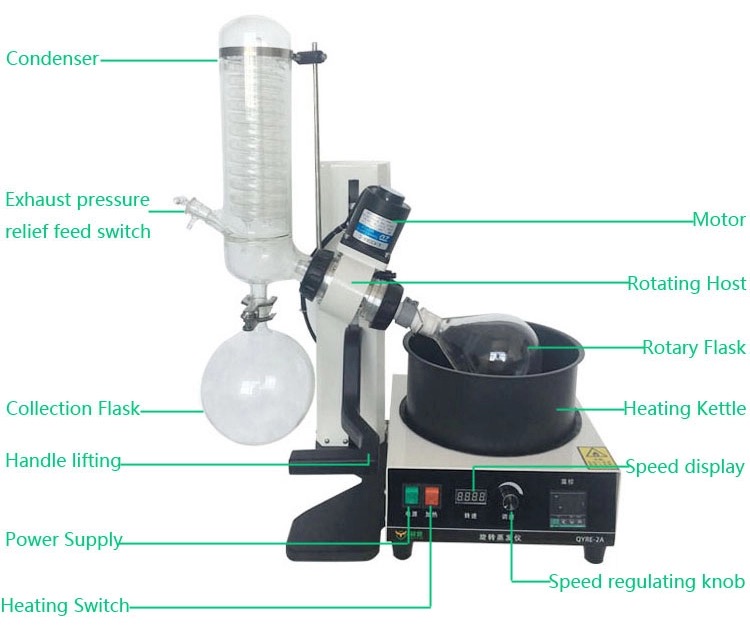

Rotary evaporator is mainly used for concentration, crystallization, drying, separation and solvent recovery in pharmaceutical, chemical and pharmaceutical industries. The principle is: constant temperature heating under vacuum condition makes the rotating bottle rotate at constant speed, and the material forms large area film on the wall of the bottle and evaporates efficiently. The solvent steam is cooled by a high efficiency glass condenser and recovered in the collection bottle, which greatly improves the evaporation efficiency, especially for the concentration and purification of the biologic which are easily decomposed at high temperature.
|
Model
|
OLT-RE-6
|
|
Speed regulation range(rpm)
|
20~120
|
|
Evaporation capacity(ml/min)
|
20
|
|
Vacuum degree(Pa)
|
399.9(3mmHg)
|
|
Range of temperature
regulation(℃)
|
Normal atmospheric temperature ~99
|
|
The precision of
temperature control(℃)
|
±1
|
|
Temperature setting display
|
Key input Digital display
|
|
Speed setting display
|
Rotation setting Digital display
|
|
Security function
|
Over-current protection, grounding fault protection
|
|
Working principle of
lifting device
|
Weight balancing Sliding mode+Manual Assist
|
|
Rotary motor(W)
|
30
|
|
Heating power(W)
|
950
|
|
Bath material
|
304 stainless steel spraying Teflon
(Anticorrosion and waterproof scale)
|
|
Condensing form
|
Vertical serpentine coil
|
|
Rotating bottle(mL)
|
1000(Optional)
|
|
Collecting bottle(mL)
|
1000
|
|
Sealed form
|
Teflon+Fluorinated rubber double sealed
|
|
The height of the rise
and fall(mm)
|
140
|
|
Ambient temperature
used(℃)
|
5~35
|
|
Dimensions(L*W*H)
(mm)
|
480*380*850
|
|
Voltage(V)
|
108V-240V
|

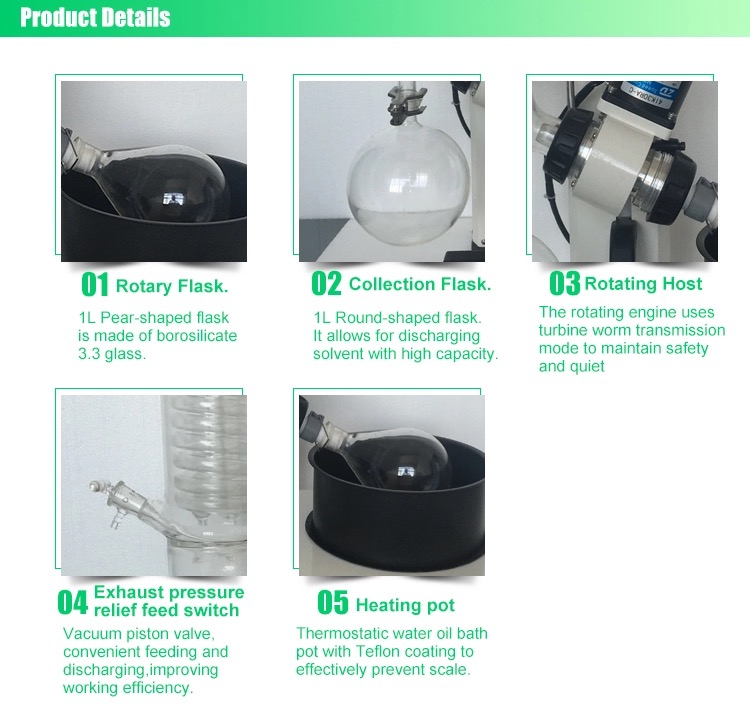

(1) Adopt the advanced EL air tight system in the world to maintain high vacuum. Gas-liquid separation, no reflux.
(2) The rotating bottle is connected with the nut for ease of loading and unloading.
(3) Collecting bottles with a discharge valve at the bottom, and recovering the solvent quickly.
(4) Vacuum system is equipped with vacuum gauge to adjust the best working vacuum degree for low boiling point material.
(5) The water bath pot is controlled by electronic constant temperature and can be lifted up or down.
(6) The structure is reasonable and the material is exquisite.
Packing and Shipping
-The main parts will be wrapped with foam,then put into the carton; the mainbody portion will be packed in wooden cases;
-Both neutral and customized packaging can be available.
-We can ship the goods to you by International Express such as DHL,UPS,TNT,EMS and so on, you can also choose the appropriate one based on your timeline and budget. Besides,you can choose to use your own shipping agent
