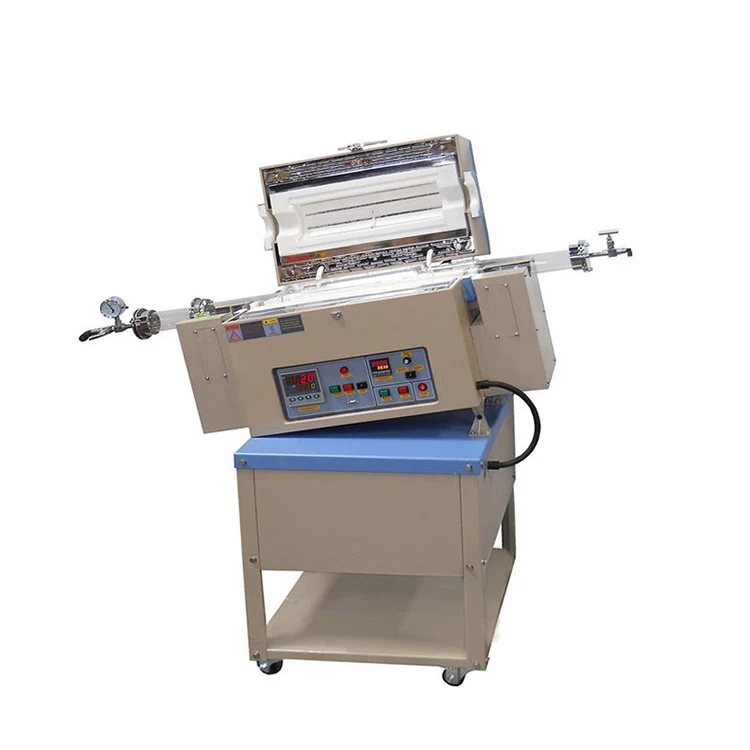

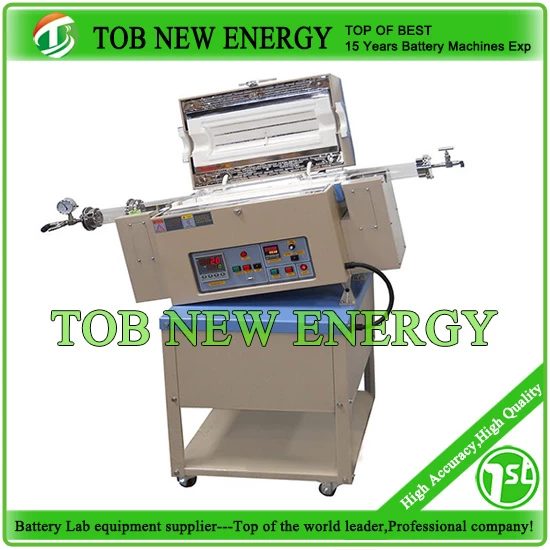

Single Zone Rotary Tube Furnace with 100mm OD Quartz Tube, 1200C Max
SPECIFICATIONS
TOB-SHYT-1200X is a single zonerotary tube furnaceis designed for calcining inorganic compound with better uniformity, especially excellent for preparing Li-Ion battery cathode materials with conductive or protective coating on powder, such as LiFePO3, LiMnNiO3, etc in R&D Laboratory.
|
Model
|
Rotary Furnace TOB-OTF-1200X-4-R
|
|
Furnace Construction
|
Double shell casing with three cooling fans
High purity Alumina fibrous insulation for max. energy saving
Gear DC motor drives quartz tube with variable speed 0 - 7 RPM
The furnace can be tilted up to 35° by electric lift
Split cover enable faster cooling and easy operation
|
|
Heating Zone length
|
One zone: 16" (400 mm)
Constant temperature zone: 120 mm within +/-1°C
|
|
Gas Fittings
|
Inlet Fitting: Elbow Push-in connector for 6mm O.D tube;
Outlet Fitting: Elbow Push-in connector for 12mm O.D tube
|
|
Max. Working
Temperature
|
1100°C for continuously
1200°C Max for < 2 hours
|
|
Temperature Controller
|
30 segments programmable PID digital temperature controller
|
|
Rotating Time &
Speed Controller
|
Continuous Mode: The tube will be continuously rotated if the rotating mode switch
is set on “Continuous Operation”
Intermittent Mode: “Intermittent Operation” allows you use the time controller to program
the desired rotating and dwell time
Tube Rotating Speed: 0~7 RPM variable
|
|
Temperature Uniformity
|
+/- 1°C in heating Zone
|
|
Tube rotating Speed
|
0 - 7 RPM variable
|
|
Furnace tilt angle
|
0 - 30°
|
|
Max. Vacuum level
|
4.5x10-2 torr (<0.1mtorr/s leaking rate if close all the valves to airtight the tube chamber)
|
|
Production yield
|
2 kg per batch
|
|
Power
|
2.5 KW Max
|
|
Voltage
|
110V - 240V single phase (20 A Breaker required)
|
|
Warranty
|
One year limited with lifetime support
|
|
Product net weight
|
100kg
|
|
Dimensions
|
1520mm(L) x 600mm(W) x 1200mm(H)
|
|
Shipping dimensions
|
49"(L) x 40"(W) x 70"(H)
|
|
Shipping weight
|
500 lbs
|
|
Warning
|
The tube furnaces with quartz tube are designed for using under vacuum and low
pressure < 0.12 MPa (absolute pressure). never use it under higher pressure.
Vacuum limit definition for all quartz tube furnaces: * Vacuum pressures may only
be safely used up to 1000°C
|
