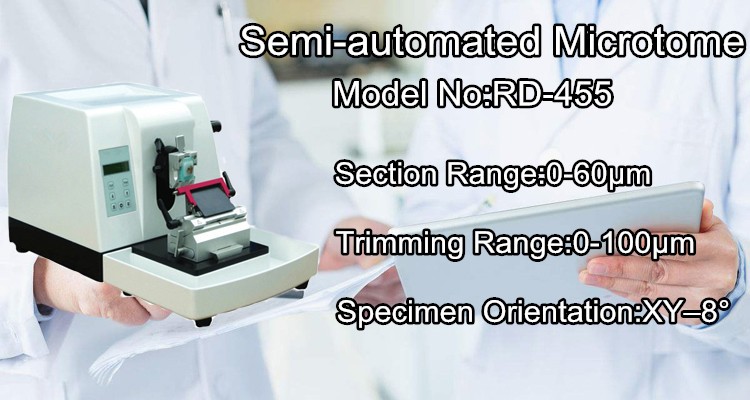

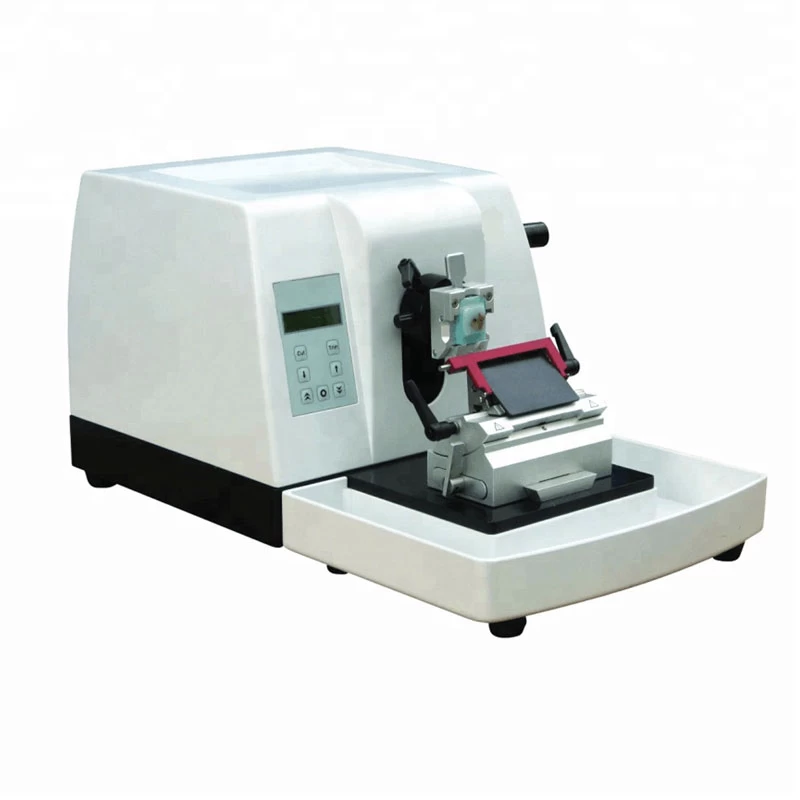

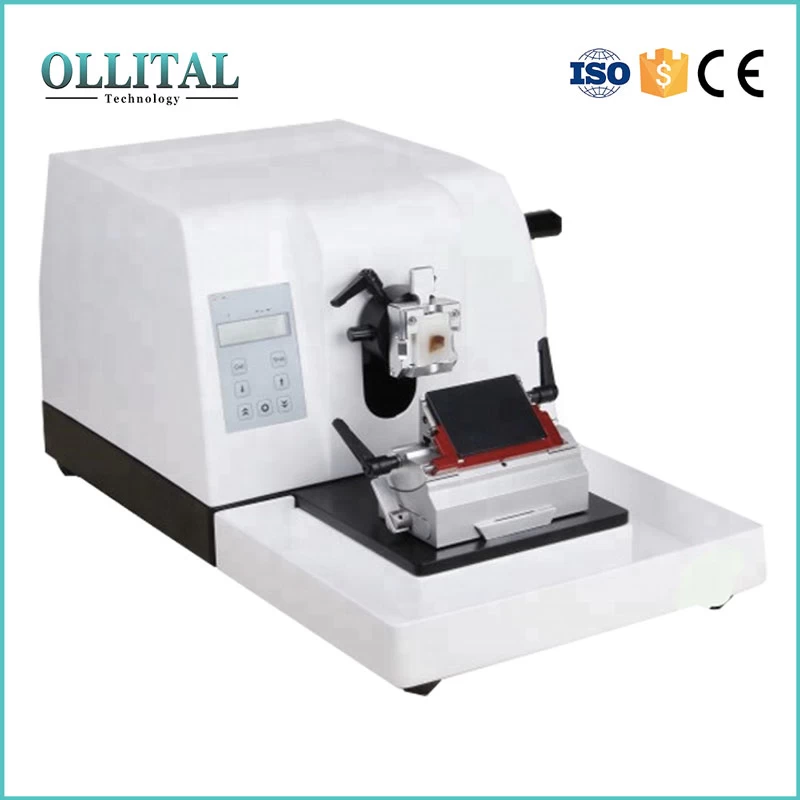

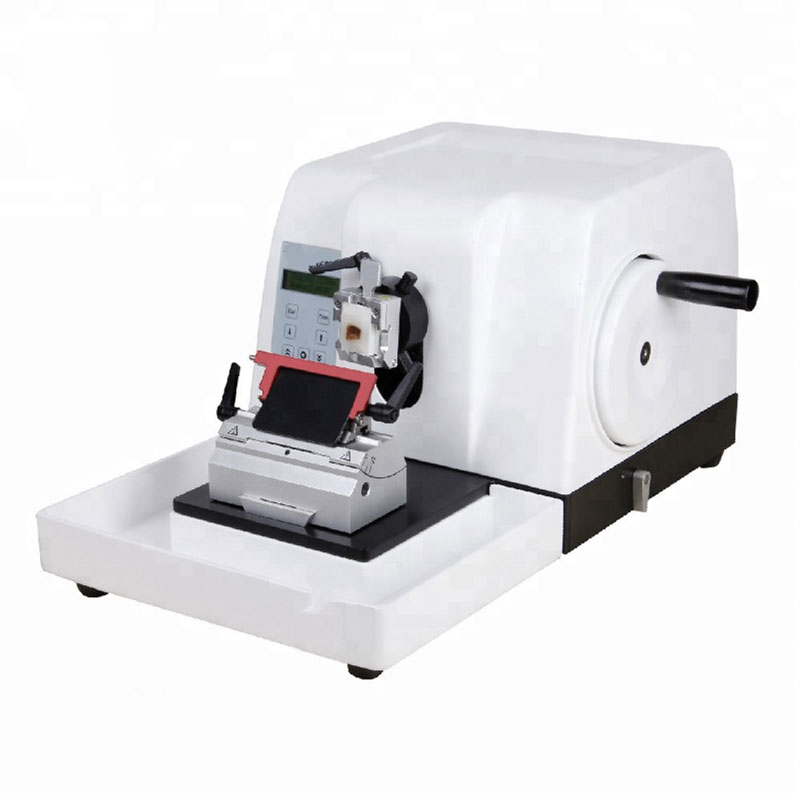

RD-455 microtome this product adopts a streamline design, and possesses advanced features with stable performance and easy operation .Adopts imported cross-roller guide rails and a screw motion mechanism to ensure precision, thus achieving superior sectioning performance.It's prefectly suited for those who expect precision sectioning.
|
Product Name
|
Rotary Microtome For Histology Instrument Semi Automated Microtome
|
|
Model No
|
RD-455
|
|
Section Thickness Setting Range
|
0 - 60μm
|
|
Trimming Thickness Setting Range
|
0 - 100μm
|
|
Section thickness adjustment
|
0 - 1μm increment 0.25μm
1 - 10μm increment 1μm
10 - 20μm increment 2μm
20 - 60μm increment 5μm
|
|

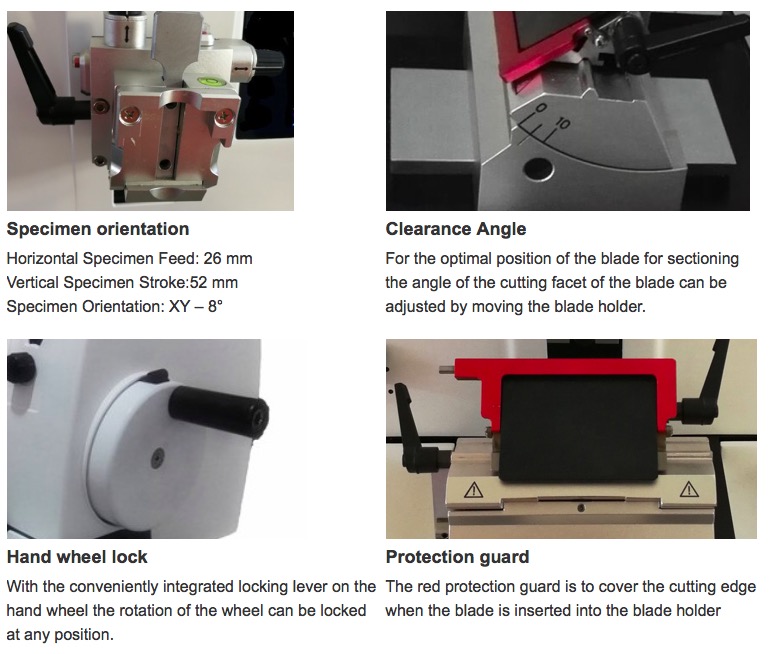

Total Horizontal Specimen Feed
|
26 mm
|
|
Vertical Specimen Stroke
|
52 mm
|
|
Specimen Clamp Rotation
|
any angle within 360 degrees
|
|
Specimen Orientation
|
XY – 8°
|
|
Minimum Setting of Sectioning Thickness
|
0.25μm
|
|
Maximum Specimen Size
|
50×50mm
|
|
Precision Error
|
±1%
|
|
Working Voltage
|
AC 220V±10% 50Hz (standard model); AC110V±10% 60Hz
|
|
Power
|
100W
|
|
Dimensions
|
580×410×305mm(W×D×H)
|
|
Net weight
|
29kg
|
Packing and Shipping

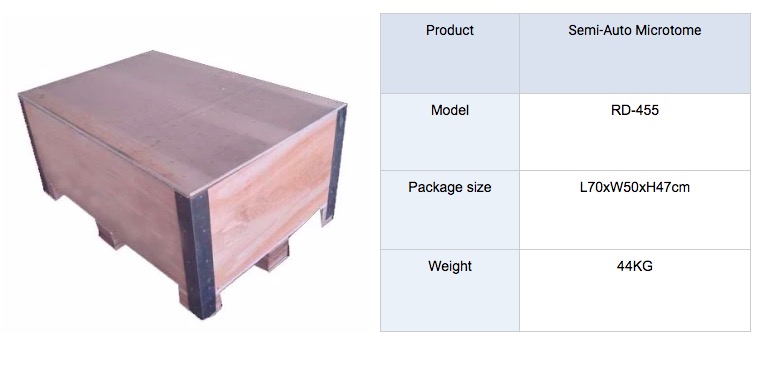

-The main parts will be wrapped with foam,then put into the carton; the mainbody portion will be packed in wooden cases;
-Both neutral and customized packaging can be available.
-We can ship the goods to you by International Express such as DHL,UPS,TNT,EMS and so on, you can also choose the appropriate one based on your timeline and budget. Besides,you can choose to use your own shipping agent
