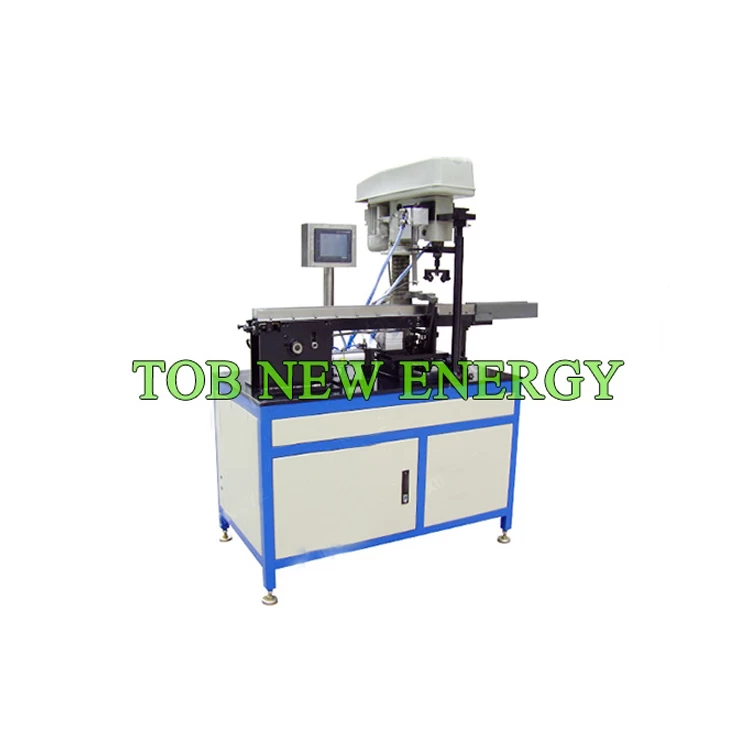

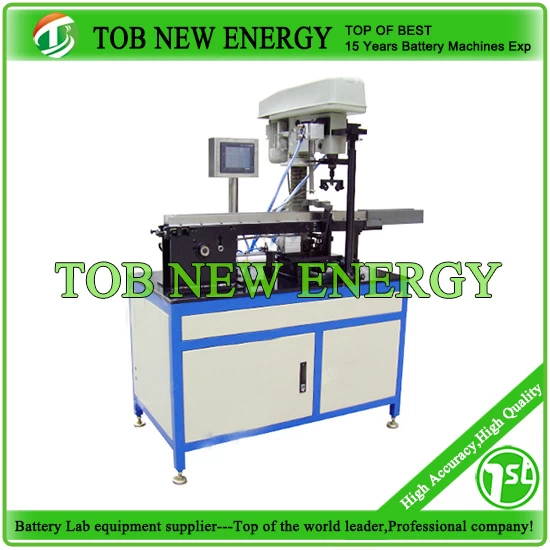

Rotary pressure sealing machine
SPECIFICATIONS
Functional overview
The machine is suitable for cylindrical battery, supercapacitor seal. The machine uses a touch screen, PLC communication control,through the implementation of pneumatic components feeding, the more bits, the seal, the material discharing etc.
Available sizes according to customer.
Technical parameters
|
For case diameter
|
φ20 to 120mm(customer specified)
|
|
For case height
|
50 ~ 250mm (customer specified)
|
|
Production capacity
|
about 10 pcs/ min
|
|
Gas source
|
0.4 ~ 0.7MPa
|
|
Operating voltage
|
Three-phase 380V / 50HZ
|
|
Total power
|
2KW
|
|
Dimensions (L * W * H)
|
1300 * 550 * 1350mm
|
