Histology Instruments Tissue Paraffin/Wax Microtome:
Model Number: RD-315;
Feature:

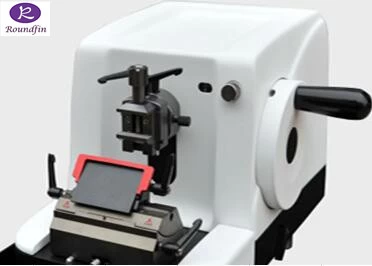

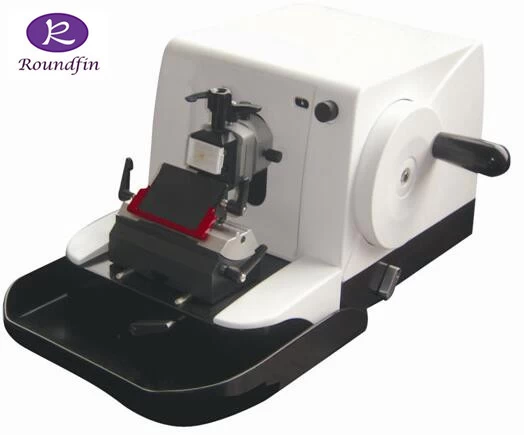

---- RD-315 microtome is an rotary microtome , which is samily as the LEICA 2126 .
--- -It have clipper built case , the user can put blade , wax block ,or other consumable one the top of case . it is easy .
--- It donot need to lubricate and maintain the microtome frequently .
----The handwheel in the right can be locked in any position , and the handle can be locked in highest position , it is double safe for changing blade or tissue block .

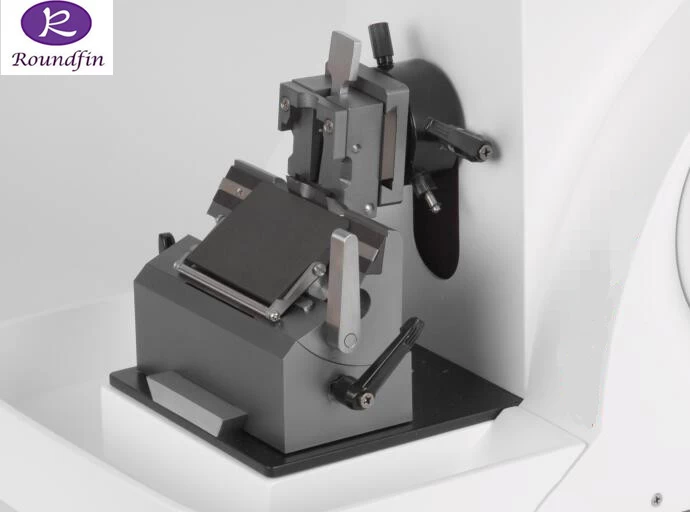

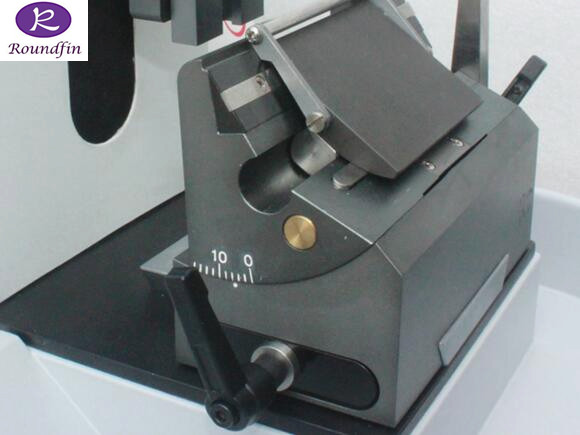

----The specimen Orienting system: axes X and Y 8°, axis 180°.

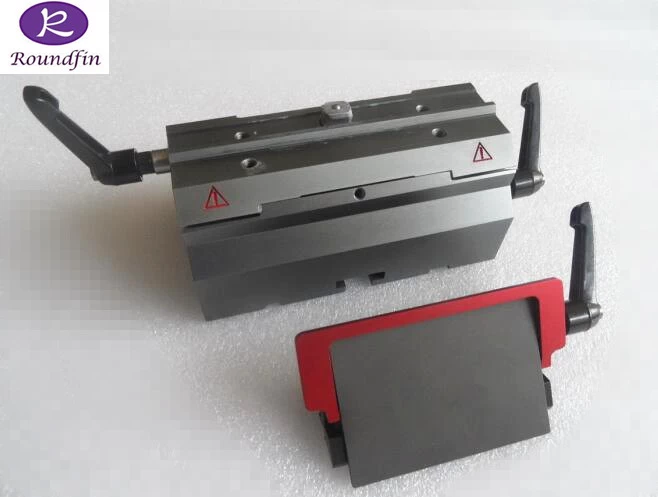

----It adopt the special blade holder , it is more safe and convenient to use the disposable blade directly . it also can to longer the user life of disposable blade
Technical Data:
---- Slice thickness range: 0- 60um
----Setting values :
From 0-2 um in 0.5 um increments
Form 2-10um in 1 um-increments
Form 10-20 um in 2 um-increments
Form 20-60um in 5 um-increments
---- Horizontal specimen stroke :28 mm
----Vertical specimen stroke : 60mm
---- Slip precision: ± 5%
----Maximal slice section: 50 × 45mm
