Agricultural Machinery Bearing are bearings which can use in Agricultural Machinery ,such as disc harrows, planters, mowers,seeding and forage harvester equipment, combines, and other agricultural equipments.
Round Bore Bearing W214PPB9 Specification :
Bearing Number:W214PPB9
Brand：Neutral or OEM
Size (mm)：
70.256 x 125 x 44.45 / 28mm
Material GCr15 Chrome steel
Cage：Steel cage
Weight (Kg):1.76
Country of Origin：CHINA
Agricultural Machinery Bearing W214PPB9 Features And Benefits:
1.With high quality Chrome steel GCR15, bearing can bear high capacity..
2. High quality Chrome steel GCR15 balls ,th balls have better roundness and long bearing working life.
3. Raceway design,the AG bearing have long life and load carrying capacity.
4. Seal designs ,the bearings can work at different operating conditions, loads and speeds.
Round Bore Ag Bearings Application :
W214PPB9 Bearing can be used at different agriculture equipements ,such as:
Agriculture - Combines, Tillage equipment, Hay Balers, Mower Conditioners, Cotton Strippers, Augers, Planters/Grain Drills, wheel bearings, disc bearings.
Lawn & Garden - Lawn Mowers wheels and spindles.
Conveyors - Grain, Aggregate
We Can Produce Different Type Of AG bearing:
-
Round bore Non-relubricable AG bearing
-
Square bore Non-relubricable AG bearing
-
Round & Square bore Non-relubricable AG bearing
-
Round bore Relubricable Farm Machinery Bearing
-
Square bore Relubricable Farm Machinery Bearing
-
200 series Bearing
-
Disc Harrow Disc Harrow
Here Are Some Our Agricultural Bearing Number For Your Reference:
|
Bearing NO.
|
Dimensions(mm)
|
|
|
H
|
D
|
S
|
B
|
C
|
|
W208PP5
|
29.97
|
80
|
|
36.53
|
18
|
|
W208PP6
|
26.13
|
80
|
|
36.53
|
18
|
|
W208PP8
|
29.97
|
80
|
|
36.53
|
30.18
|
|
W208PP9
|
26.13
|
80
|
|
36.53
|
30.18
|
|
W208PP20
|
29.97
|
80
|
|
36.53
|
18
|
|
W211PP5
|
38.89
|
101.6
|
|
44.45
|
36.53
|
|
W208PPB12
|
29.97
|
85.738
|
87.3
|
36.53
|
30.18
|
|
W208PPB11
|
22.97
|
85.738
|
87.3
|
36.53
|
30.18
|
|
GW208PP17
|
29.97
|
85.738
|
|
36.53
|
30.18
|
|
GW210PP4
|
29.97
|
90
|
|
30.18
|
30.18
|
|
W210PP4
|
29.97
|
90
|
|
30.18
|
30.18
|
|
GW211PP17
|
38.89
|
100
|
|
44.45
|
33.34
|
|
GW211PP3
|
38.89
|
100
|
|
33.34
|
33.34
|
|
W211PP3
|
38.89
|
100
|
|
33.34
|
33.34
|
|
W216PP2
|
58.57
|
140
|
|
63.5
|
30
|
Round Bore Agricultural Bearing Part Number:

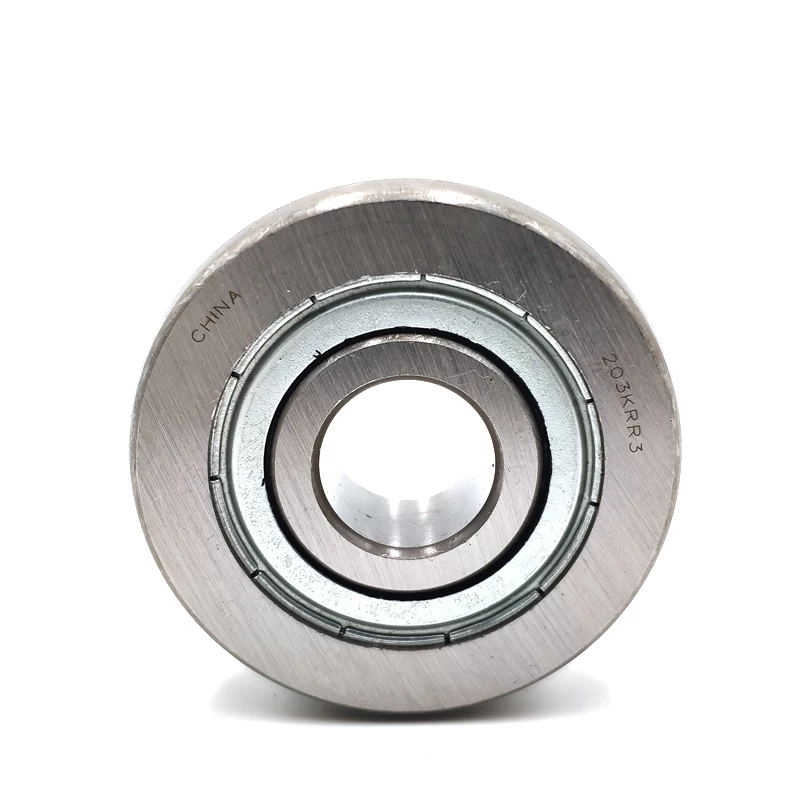

203KRR5 203KRR2 203KR2 203KR2-16 203KRR2-5/8
203JD 203KRR6 203KRR7 203NPP9 203KRR3
204FREN 204RY2 204KR2 204KRR3 204KR
Hex Bore Agricultural Bearing Part Number:
204KRR2 205KRR2 205PPB2 205PP13 205PPB13
206KPP3 206KPPB3 G206KPP4 G206KPPB4 206KRR6
206KRRB6 G206KPPB6 207KPP3 207KPPB3 207KRR9
207KRR12 207KRR17 G207KPPB2 207KPPB 207KRRB9
For more other bearings ,contact with us now !
