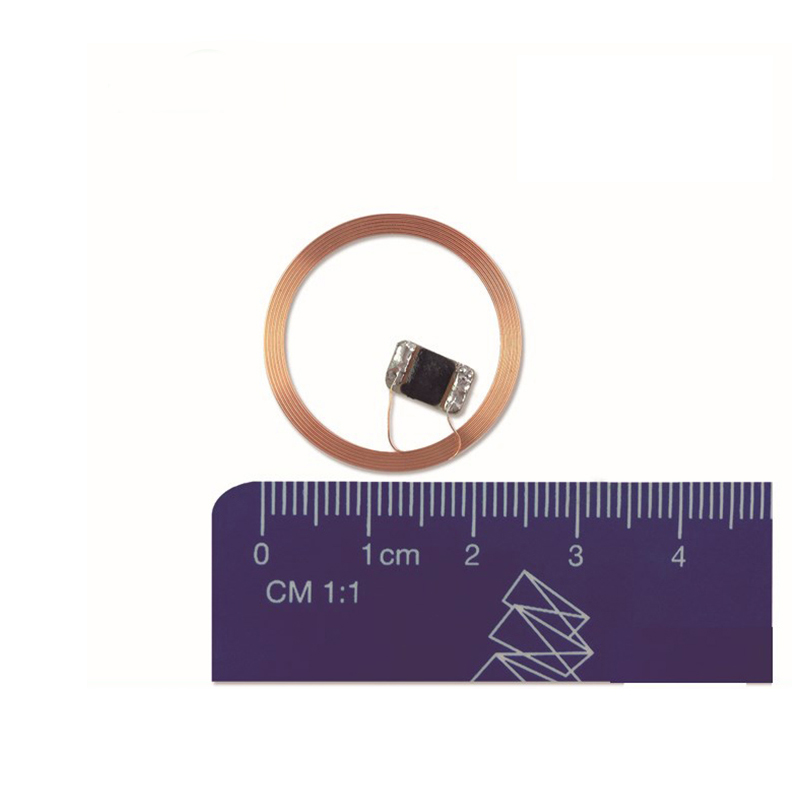

Round TK4100 LF Copper Coil 125KHz RFID
Sticker Labels

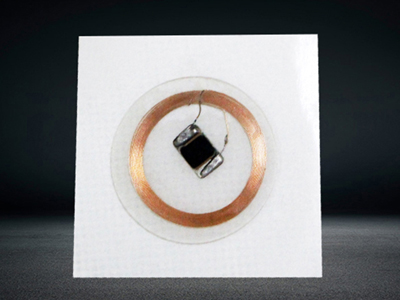

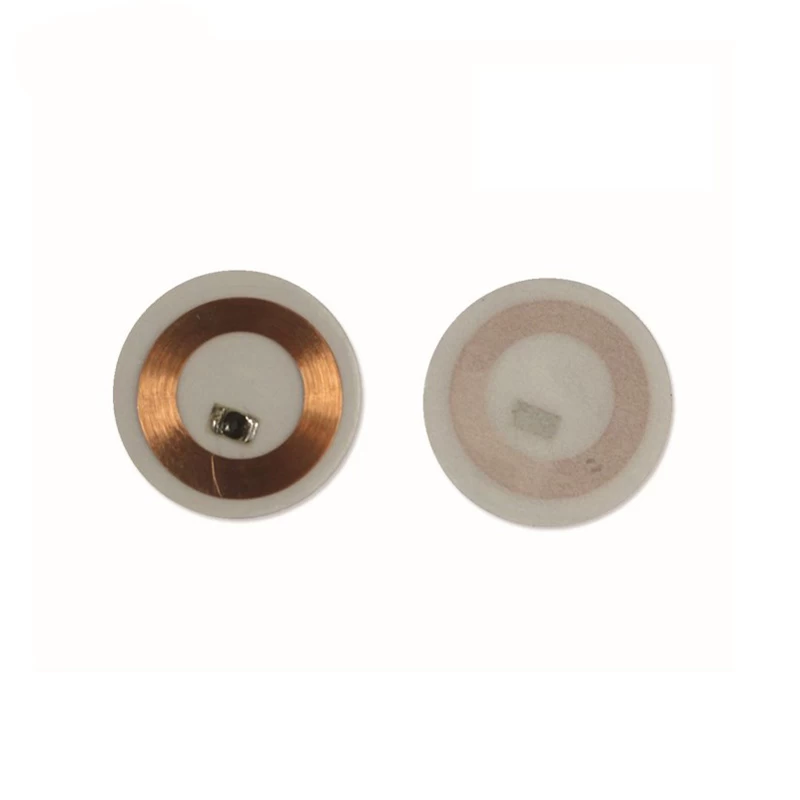

Round read only TK4100 125KHZ RFID Sticker
Labels are specially designed with a sticker on the backside. It usually
directly can be stuck on wood, plastic, door...
A smart solution for 125khz rfid sticker
application, such as livestock, electronic products, luggage, jewelry, book,
garment, shoe, bag, access control...
Products Display :
Product Name: RFID Label/Tag
Material: Paper/PET/PVC
Antenna material: copper coil
Printing: Plain White/Color Printing/Silk
Printing/Logo Printing
Protocol: ISO18000-2
Frequency: 125Khz
Reading Range: 2CM-5CM for HF (Relative
with reader and working environment).)
Reading/Writing Endurance: ≥100000 cycles
Chip type: TK4100,EM4200,T5577...
Dimension
|
Round: 15/18/20/22/23/25/29/30/32/38/40/50mm etc
|
Square: 19/25/29/30/35/38/50mm etc
|
Rectangle: 15*20,24*34,25*38,30*35,42*26,44*55,50*80,54*85.5,55*85(mm)
|
Micro size: 8.7*8.7mm, round 9mm, round 15mm, 10*17mm, 8*15mm, 12*12mm, 7.7*14.88mm, 8*14mm, 8*18.5mm, 5.4*19mm, 8*19.5mm, 9.8*16.45mm etc or customized
|
Available Crafts
|

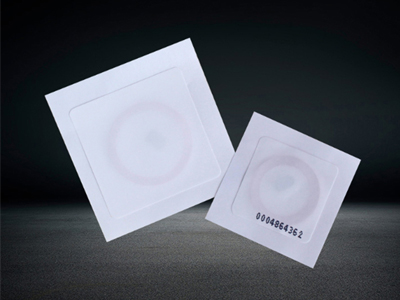

Number printing (Serial No & Chip UID etc), QR, Barcode etc
|
Chip program/encode/lock/encryption will be available as well (URL ,TEXT ,Number and Vcard)
|
Epoxy, Customize size and shape, Hole punch etc
|
FQA :
Q1. What material and glue of RFID tag we have?
These are some materials widely used:
1. ABS: Aging resistance, heatproof, long lifetime.
2. PVC: Waterproof, flexible, easy to print on.
3. PCB: High temperature resistance, waterproof, smooth appearance.
4. Epoxy: High transparency, waterproof, fracture resistance.
5. PPS: Anti-corrosion, waterproof, high temperature resistance.
6. Silicone: Waterproof, flexile, high cost.
7. 3M Glue: For applications need adhesive. Higher cost but strong viscosity, good temperature
tolerance & anti-corrosion.
Q2. What chip should I use? And Inlay?
We have LF, HF and UHF chips with various memory and reading distance. If you are not sure, please inform our sales with project details.
PS: LF (0-5cm), HF (0-15cm), UHF (1-10m).
Q3. What the data can I encode to each Tag?
We can encode different serial numbers, URL/website, Text to each Tag as your request.
Q4. What file of printing image should I offer to you?
Design Files of AI, PDF, Corel Draw, Photoshop, CAD format are supported. If no, then send us JPG or BMP, we can design for your confirmation, it takes longer time though.
Q5. What about sizes?
All the size and the shape of the final product can be customized as your request.
Q6. RFID Anti-metal material thickness?
We have 0.15mm, 0.2mm, 0.35mm and 0.5mm thick absorbing material for your reference.
