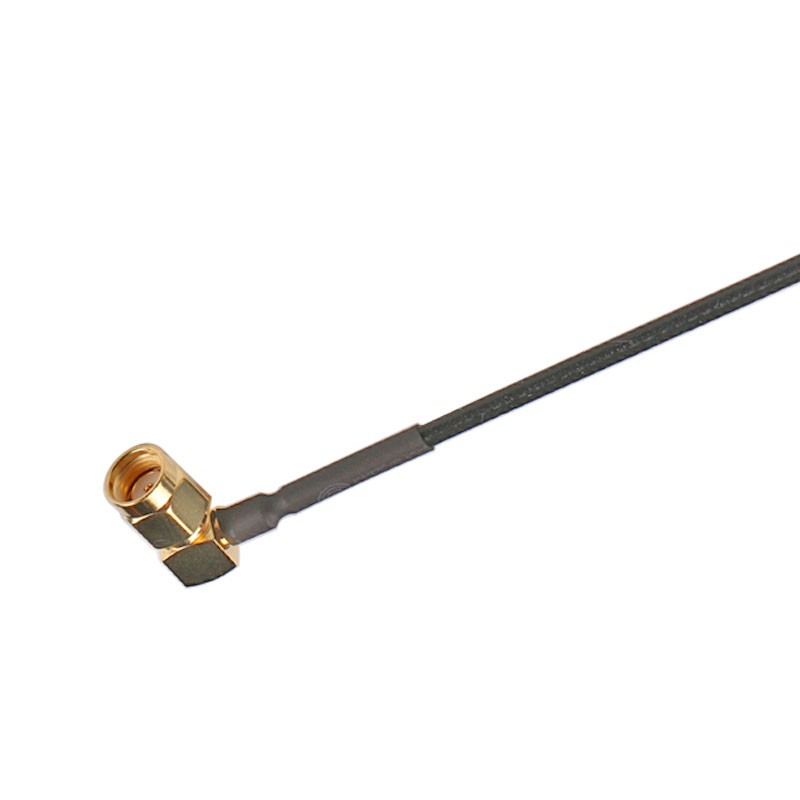

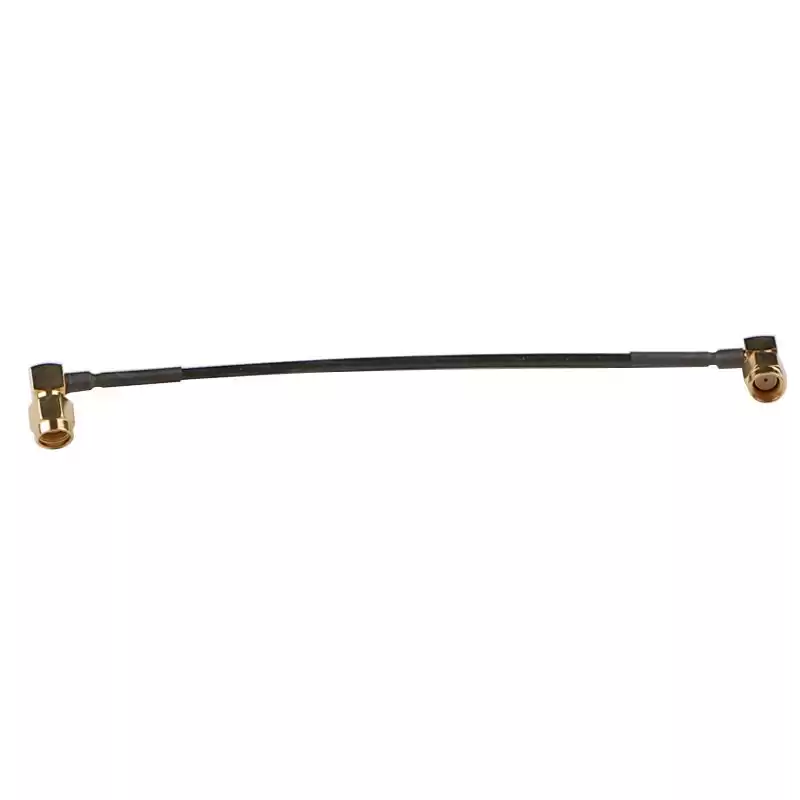

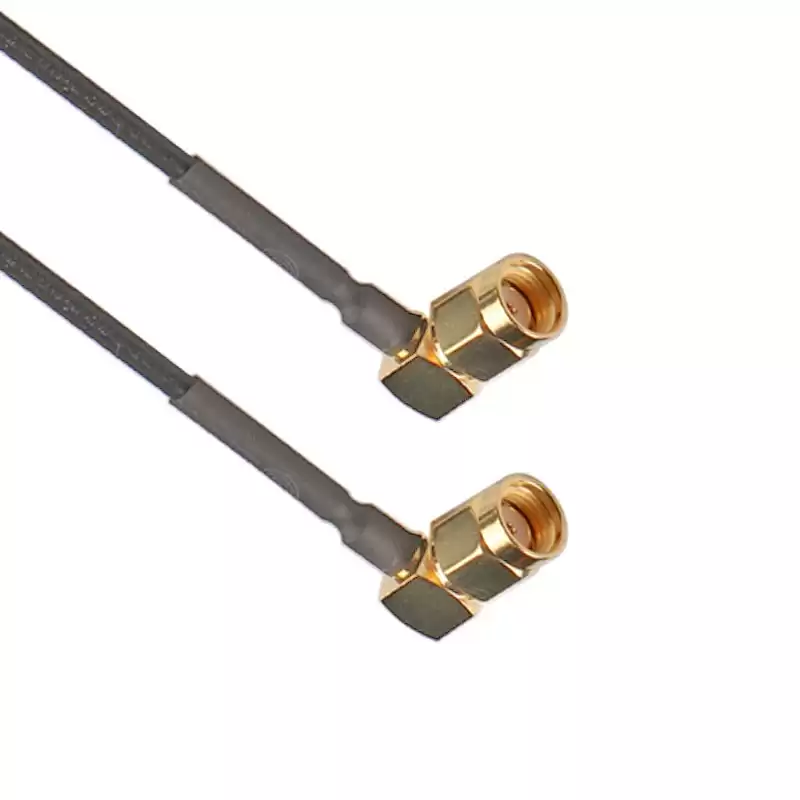

RP SMA Male Right Angle to RP SMA Male Right Angle Connector RF Coaxial Cable Assembly with RG174 Cable
The SMA cable assembly can use corrugated, flexible, formable or semirigid coaxial cablesuch as 0.81mm, 1.13mm, 1.37mm, 1/4" Superflexible, LMR100, LMR-195, LMR200, LMR-240, LMR400, RG141, RG142, RG174, RG178, RG179, RG180, RG187, RG188, RG196, RG213, RG214, RG223, RG303, RG316, RG393, RG400, RG401, RG402, RG405, RG55, RG58, RG59, RG62, RG8, TFT-402 or Tinned 047 cable; the body of SMA to SMA cable assembly is right angle or straight connectors which is female to female, female to to male or male to male gender. This RP SMA male to RP SMA male cable assembly uses a 50ohm right angle RP SMA for connector 1 and a 50ohm right angle RP SMA for connector 2, Cable is 50ohm RG174.
Specifications
| ELECTRICAL DATA |
|
| Connector 1 Series |
RP SMA |
| Connector 1 Style |
RA Male |
| Cable Type |
RG174 |
| Connector 2 Series |
RP SMA |
| Connector 2 Style |
RA Male |
| Contact Termination |
Solder |
| Shield Termination |
Crimp |
| Impedance (Ohms) |
50 |
| Low PIM |
No |
| Max Frequency |
6GHz |
| Working Temperature |
-65°C to +165°C |
| MATERIAL DATA |
|
Body Material
|
Brass |
Body Finish
|
Nickel/Ternary alloy |
Contact Material
|
Phosphor Bronze/Beryllium Copper |
Contact Finish
|
Gold/Silver |
| Insulator Material |
PTFE |
Applications
- Used as an RF Test Probe to 6 GHz
- RF PCB board measurements
- Signal injection
