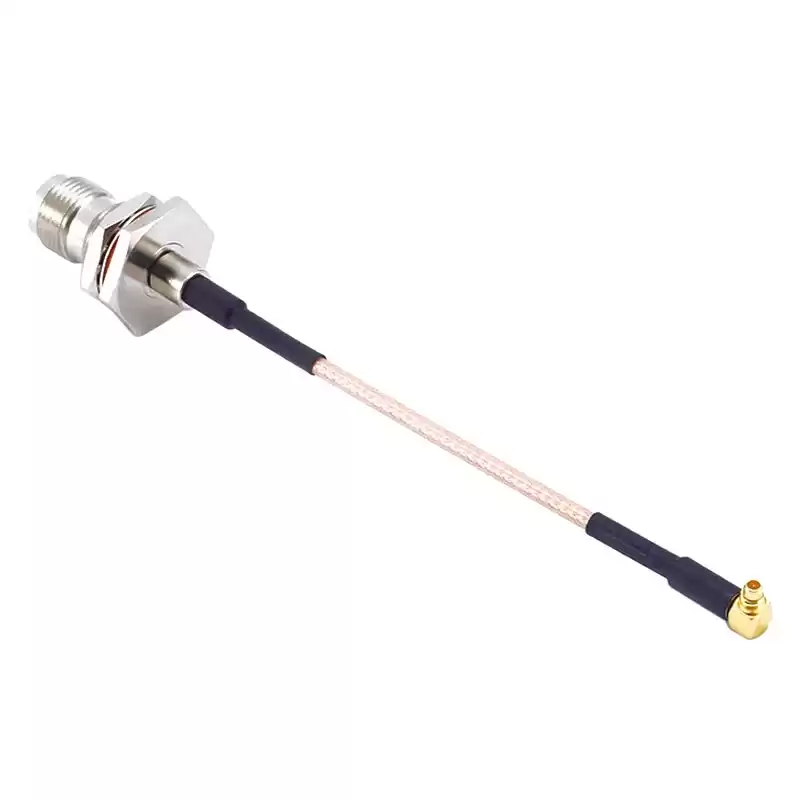

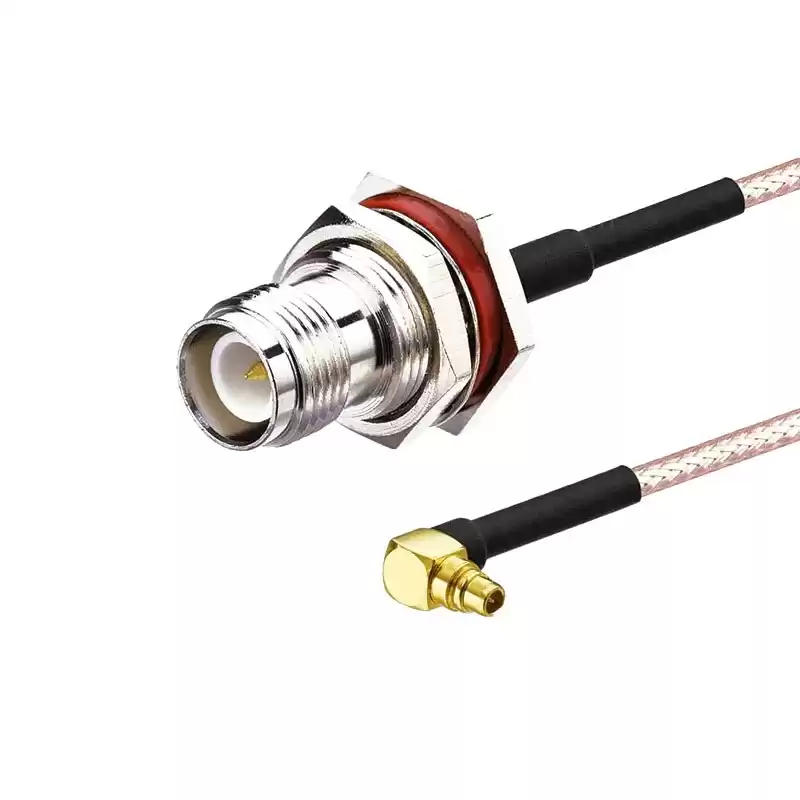

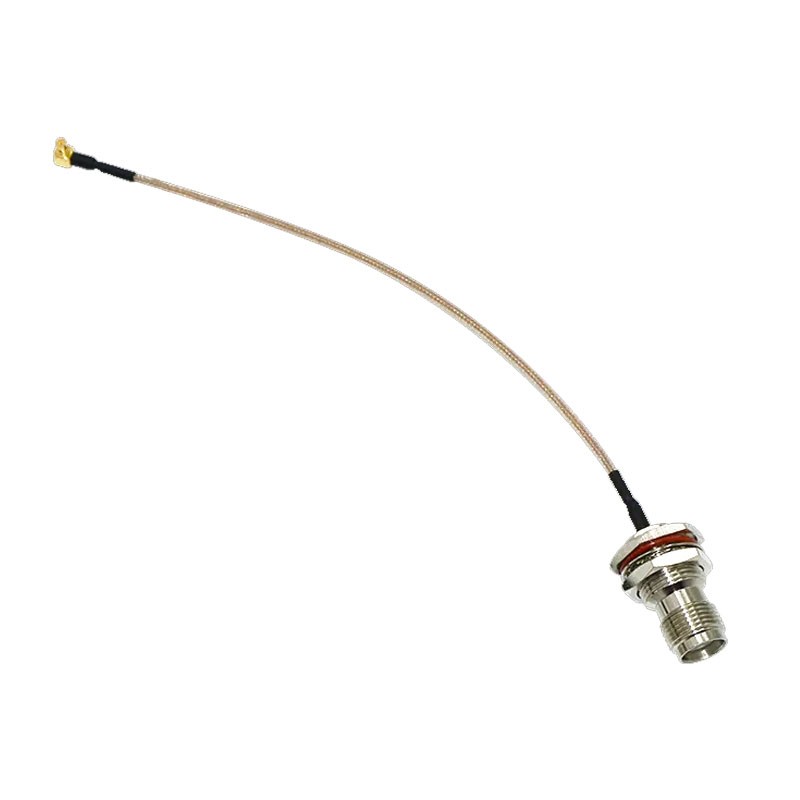

RP TNC Female Bulkhead to MMCX Plug Male Right Angle Connector Cable Assembly with RG316 Coaxial Pigtail Cable
The TNC cable assembly can use flexible, formable or semirigid coaxial cable such as LMR195、LMR240、LMR400、RG142、RG174、RG178、RG188、RG213、RG214、RG223、RG316、RG393、RG400、RG401、RG402、RG58、RG8; the body of TNC to MMCX cable assembly is right angle or straight connectors which is female to jack, female to plug, male to jack or male to plug gender. This RP TNC female to MMCX plug cable assembly uses a 50ohm straight TNC for connector 1 and a 50ohm right angle MMCX for connector 2, Cable is a 50ohm flexible RG316.
Specifications
| ELECTRICAL DATA |
|
| Connector 1 Series |
RP TNC |
| Connector 1 Style |
Str Male |
| Cable Type |
RG316 |
| Connector 2 Series |
MMCX |
| Connector 2 Style |
RA Plug |
| Contact Termination |
Solder |
| Shield Termination |
Crimp |
| Impedance (Ohms) |
50 |
| Low PIM |
Yes |
| Max Frequency |
3GHz |
| Working Temperature |
-65°C to +165°C |
| MATERIAL DATA |
|
Body Material
|
Brass |
Body Finish
|
Nickel/Ternary alloy |
Contact Material
|
Phosphor Bronze/Beryllium Copper |
Contact Finish
|
Gold/Silver |
Insulator Material
|
PTFE |
Applications
- Automated Test Systems
- Airborne Systems
- Phased Arrays
- EW and Countermeasures
