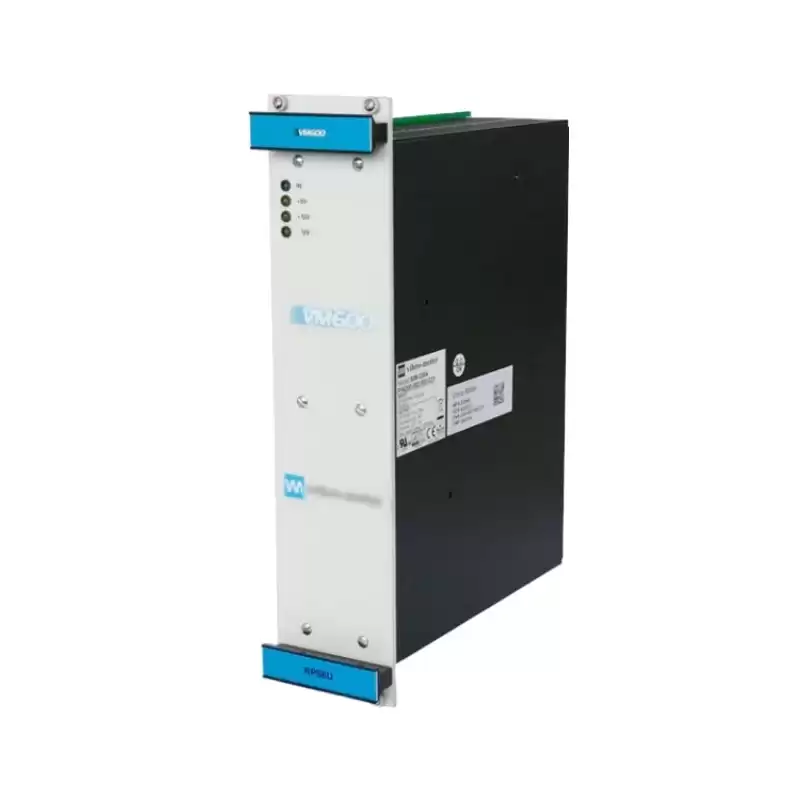

RPS6U 200-582-200-013 Rack Power Supply

The RPS6U rack power supplies are designed for use in the VM series of machinery protection systems and condition and performance monitoring systems.





RPS6U 200-582-200-013 Rack Power Supply



• From the VM® product line



• Power supply for VM ABE04x 19″ system racks with a height of 6U



• Input: AC-input and DC-input versions



• Outputs: +5 VDC and ±12 VDC



• Output over-voltage, short-circuit and overload protection



• Status indicators



• High-power, high-performance, highefficiency



• Minimal derating within the operating temperature range



Applications:



• VM machinery protection and or condition monitoring systems



• One RPS6U rack power supply powers a full rack of modules (cards)



• Two RPS6U rack power supplies enable rack power supply redundancy





Functional Description:



The RPS6U rack power supplies are designed for use in the VM series of machinery protection systems and condition and performance monitoring systems.



A VM RPS6U rack power supply is installed in the front of a VM ABE04x system rack (19″ system racks with a standard height of 6U) and connects via two high-current connectors to the VME bus of the rack's backplane.



The RPS6U power supply provides +5 VDC and ±12 VDC to the rack itself and all installed modules (cards) in the rack via the rack's backplane.



Either one or two VM RPS6U rack power supplies can be installed in a VM ABE04x system rack. A rack with one RPS6U power supply (330 W version) supports the power requirements for a full rack of modules (cards) in applications with operating temperatures up to 50°C (122°F).



Alternatively, a rack can have two RPS6U power supplies installed in order to either support rack power supply redundancy or in order to supply power to the modules (cards) non-redundantly over a wider range of environmental conditions.



A VM ABE04x system rack with two RPS6U power supplies installed can operate redundantly (that is, with rack power supply redundancy) for a full rack of modules (cards). This means that if one RPS6U fails, the other will provide 100% of the rack's power requirement so that the rack will continue to operate, thereby increasing the availability of the machinery monitoring system.



A VM ABE04x system rack with two RPS6U power supplies installed can also operate non-redundantly (that is, without rack power supply redundancy). Typically, this is only necessary for a full rack of modules (cards) in applications with operating temperatures above 50°C (122°F), where RPS6U output power derating is required.



Technical Specifications

Manufacturer VM
Part Number RPS6U
Ordering Information 200-582-200-013
Product Catalog Vibration Monitoring
Description Rack Power Supply

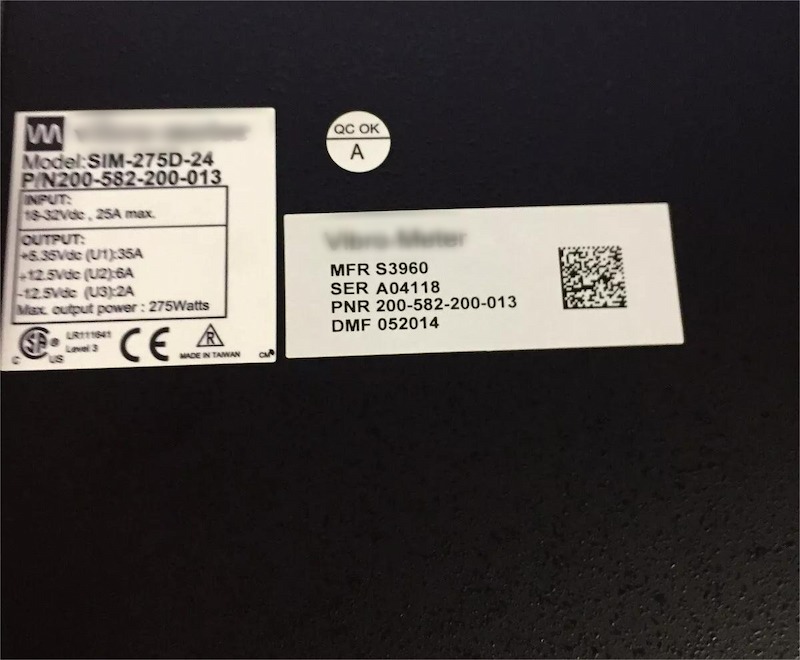

Voltage 32 Vdc
Power 275 W
Dimensions 60.6 mm × 261.7 mm × 190 mm
Weight 2.4 kg



RPS6U 200-582-200-013
