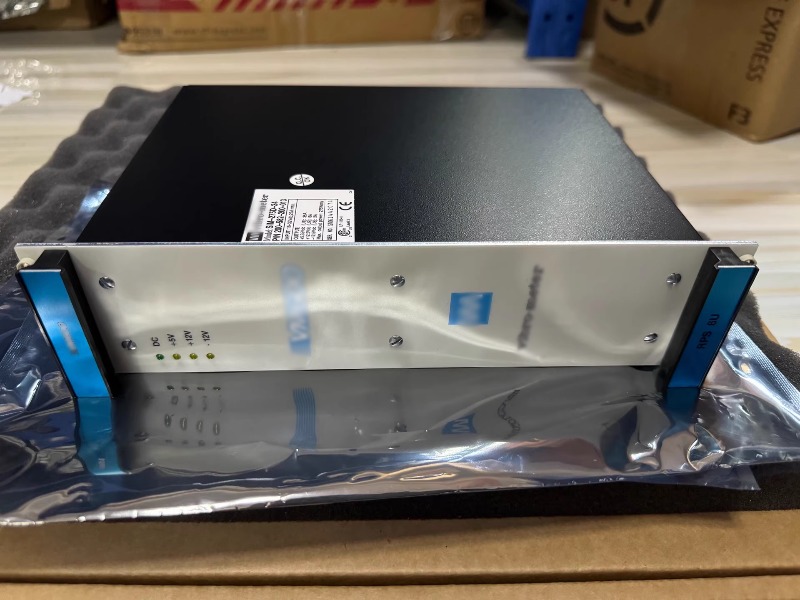

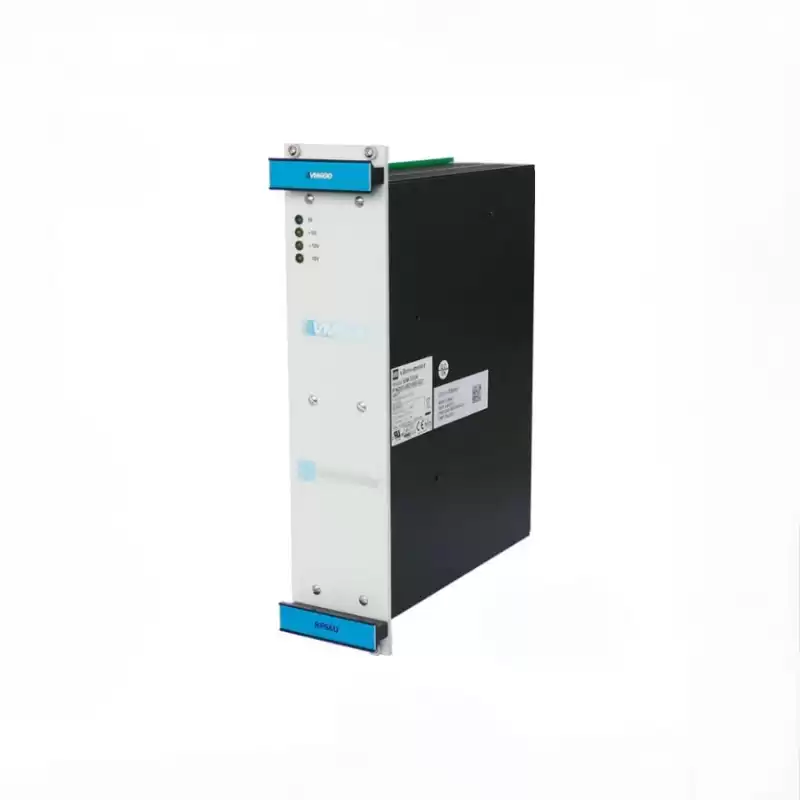

RPS6U 200-582-200-021 Rack Power Supply
The RPS6U 200-582-200-021 is installed in the front of a vibration monitoring system rack (ABE04x) with a standard height of 6U and connects directly to the rack backplane via two connectors. The power supply provides +5 VDC and ±12 VDC power to all cards in the rack via the rack backplane.
One or two RPS6U power supplies can be installed in a vibration monitoring system rack. A rack can have two RPS6U units installed for different reasons: to supply power to a rack with many cards installed, non-redundantly, or to supply power to a rack with fewer cards installed, redundantly. Typically, the cutoff point is when nine rack slots or fewer are used.
When a vibration monitoring system rack is operating with two RPS6U units for power supply redundancy, if one RPS6U fails, the other will provide 100% of the power requirement and the rack will continue to operate, thereby increasing the availability of the machinery monitoring system.
Various versions of the RPS6U exist, allowing a rack to be powered from external AC or DC mains supplies with a range of supply voltages.
A power supply check relay, available at the rear of a vibration monitoring rack, indicates that the power supplies are operating normally. Refer to the ABE040 and ABE042 vibration monitoring system rack and ABE056 slimline rack data sheets for additional information on power supply check relays.
In applications where the vibration monitoring rack is powered by an AC mains supply, an auxiliary sensor power supply (ASPS) can also be included in the rack. The ASPS provides +24 VDC outputs which can be used by external hardware such as front-end transducers, signal conditioners and galvanic separation units.
Key Features

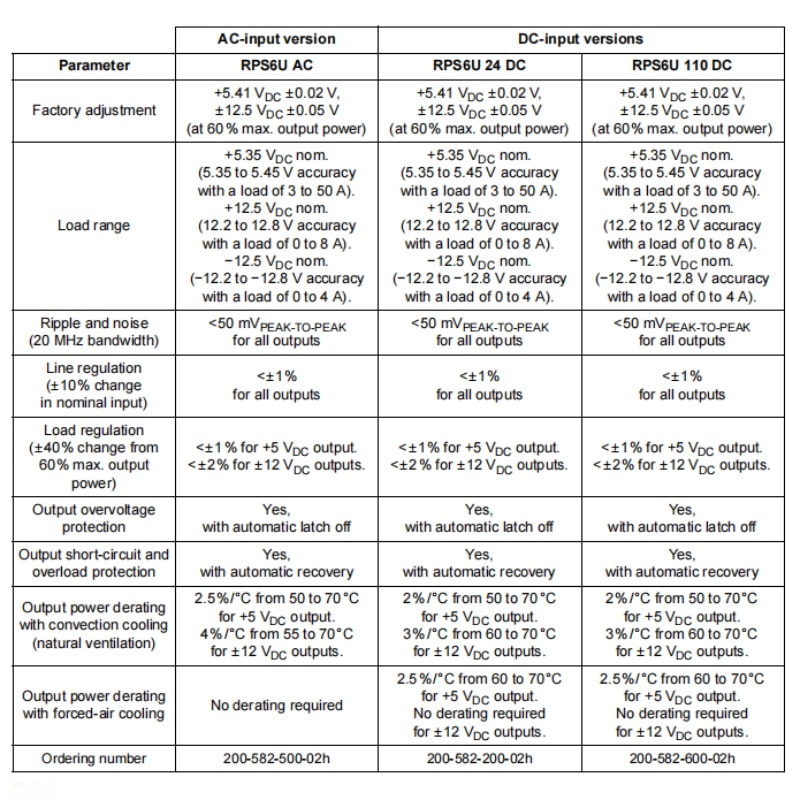

· AC-input version (115/230 VAC or 220 VDC) and DC-input versions (24 VDC and 110 VDC)
· High-power, high-performance, high-efficiency design with status indicator LEDs (IN, +5V, +12V and −12V)
· Over-voltage, short-circuit and overload protection
· One RPS6U rack power supply powers a full rack of modules (cards)
· Two RPS6U rack power supplies enable rack power supply redundancy
Ordering Information
