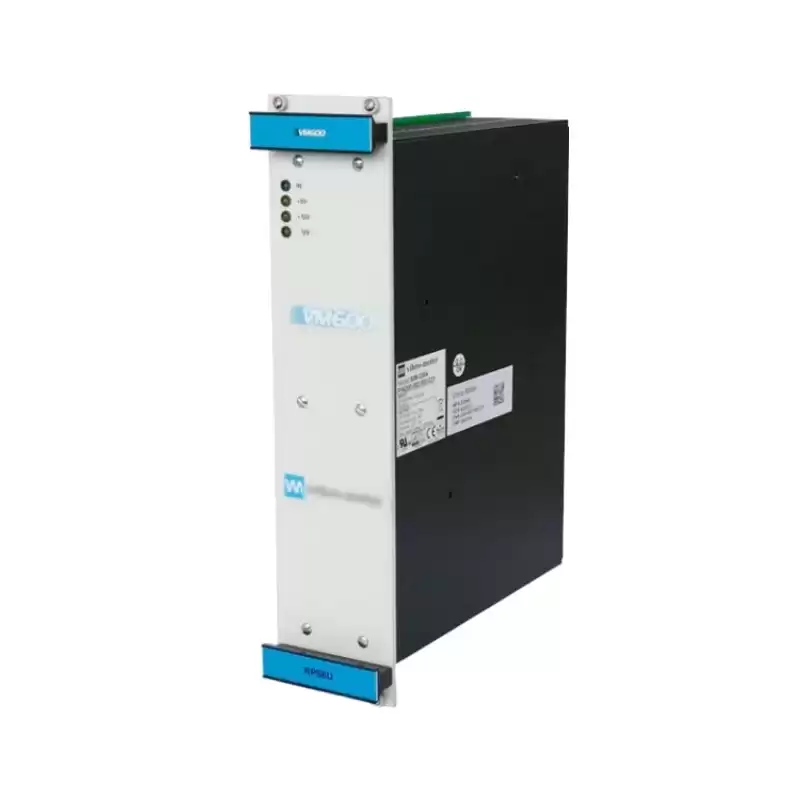

RPS6U 200-582-500-013 Rack Power Supply
The RPS6U rack power supplies are designed for use in the VM series of machinery protection systems and condition and performance monitoring systems.
The RPS6U is installed in the front of a VM system rack (ABE04x), which has a standard height of 6U, and connects via two high-current connectors to the VME bus of the rack's backplane. The rack power supply provides +5 VDC and ±12 VDC to all VM cards in the rack via the backplane.
One or two RPS6U rack power supplies can be installed in a VM system rack. A rack can have two RPS6U rack power supplies installed for different reasons: in order to support rack power supply redundancy or in order to supply power to the cards (non-redundantly).
A VM rack with one RPS6U power supply installed operates non-redundantly (without rack power supply redundancy) and can support a full rack of cards, such as 12 x MPC4 / IOC4T card pairs or 12 x XMx16 / XIO16T card pairs.
Technical Specifications
| Manufacturer |
VM |
| Part Number |
RPS6U |
| Ordering Information |
200-582-500-013 |
| Product Catalog |
Vibration Monitoring |
| Description |
Rack Power Supply |
| Voltage |
110/230 Vac |
| Power |
275 W |
| Dimensions |
60.6 mm × 261.7 mm × 190 mm |
| Weight |
2.4 kg |
100% brand new and original,All the goods will be tested before shipment.
For the in stock items, we will send the order out within 5-7 days after receive the payment.
Global supplier of quality automation and control components.
Topteng offers a 12-month warranty from the date of delivery.
In the event of non-conforming product ( if damaged or incorrect product is received ),
Any nonconformity must be reported within 7 days of receipt of goods.
Questions? Call +86 18050017653 or Email sales4@nseauto.com
