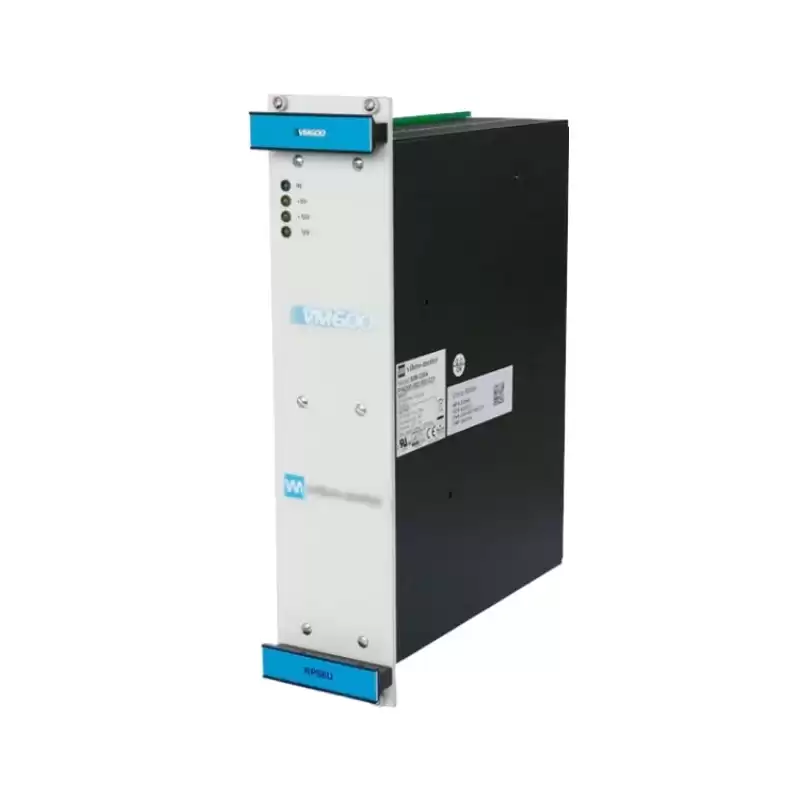

RPS6U 200-582-500-021 Rack Power Supply
Functional Description:
A VM rack with two RPS6U power supplies installed can operate redundantly (with rack power supply redundancy) for a full rack of cards. This means that if one RPS6U fails, the other will provide 100% of the power requirement and the rack will continue to operate, thereby increasing the availability of the machinery monitoring system.
Alternatively, a VM rack with two RPS6U power supplies installed can operate non-redundantly (without rack power supply redundancy). Typically, this is only necessary for a full rack of cards in applications where the operating environment requires RPS6U output power derating.
The number and type of RPS6U power supplies installed in a VM rack, together with the number of cards installed and the environmental conditions, helps determine the mode of operation of the RPS6U power supplies as either redundant or non-redundant.
Various versions of the RPS6U rack power supply exist, allowing a rack to be powered from external AC or DC mains supplies with a range of supply voltages.
A power supply check relay, available at the rear of a VM rack, indicates that the power supplies are operating normally. Refer to the ABE040 and ABE042 VM system rack data sheet for additional information on power supply check relays.
In applications where the VM rack is powered by an AC mains supply, a VM auxiliary sensor power supply (ASPS) can also be included in the rack. The ASPS provides +24 VDC outputs which can be used by external hardware such as front-end transducers, signal conditioners and galvanic separation units.
Features:
» Power supply for VM system racks
» Input: AC-input and DC-input versions providing a wide input voltage range
» Output: +5 VDC and ±12 VDC
» Output over-voltage, short-circuit and overload protection
» Status indicators
» High-power, high-performance, high-efficiency
» Minimal derating within the operating temperature range

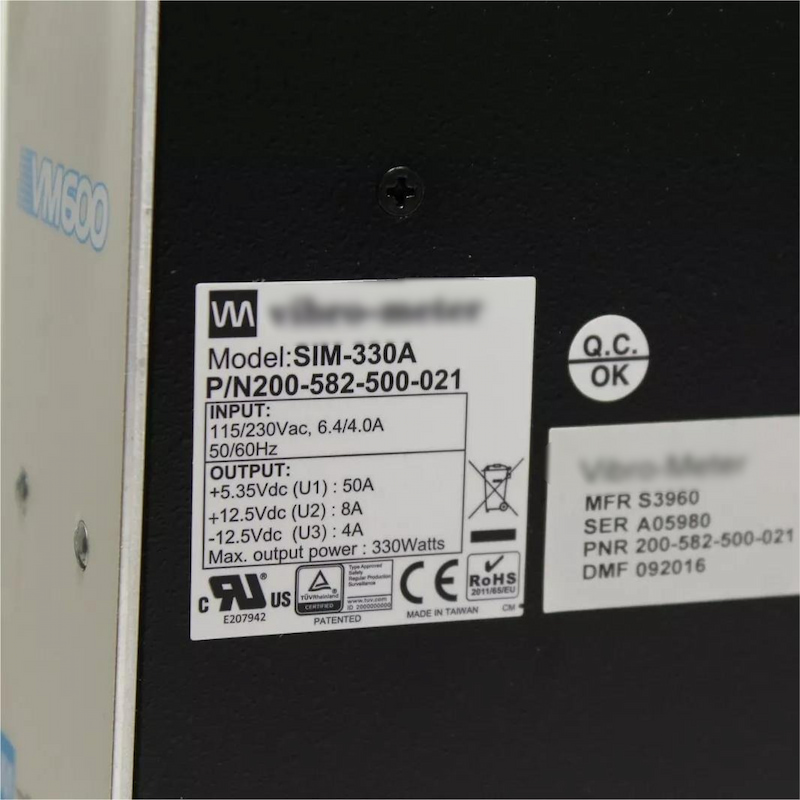

Technical Specifications
| Manufacturer |
VM |
| Part Number |
RPS6U |
| Ordering Information |
200-582-500-021 |
| Product Catalog |
Vibration Monitoring |
| Description |
Rack Power Supply |
| Voltage |
115/230 Vac |
| Current |
4 A |
| Dimensions |
60.6 mm × 261.7 mm × 190 mm |
| Weight |
2.4 kg |
