| Manufacture |
Vibration |
| Model |
RPS6U |
| Product ID |
200-582-600-013 |
| Catalog |
Vibration Monitoring |
| Description |

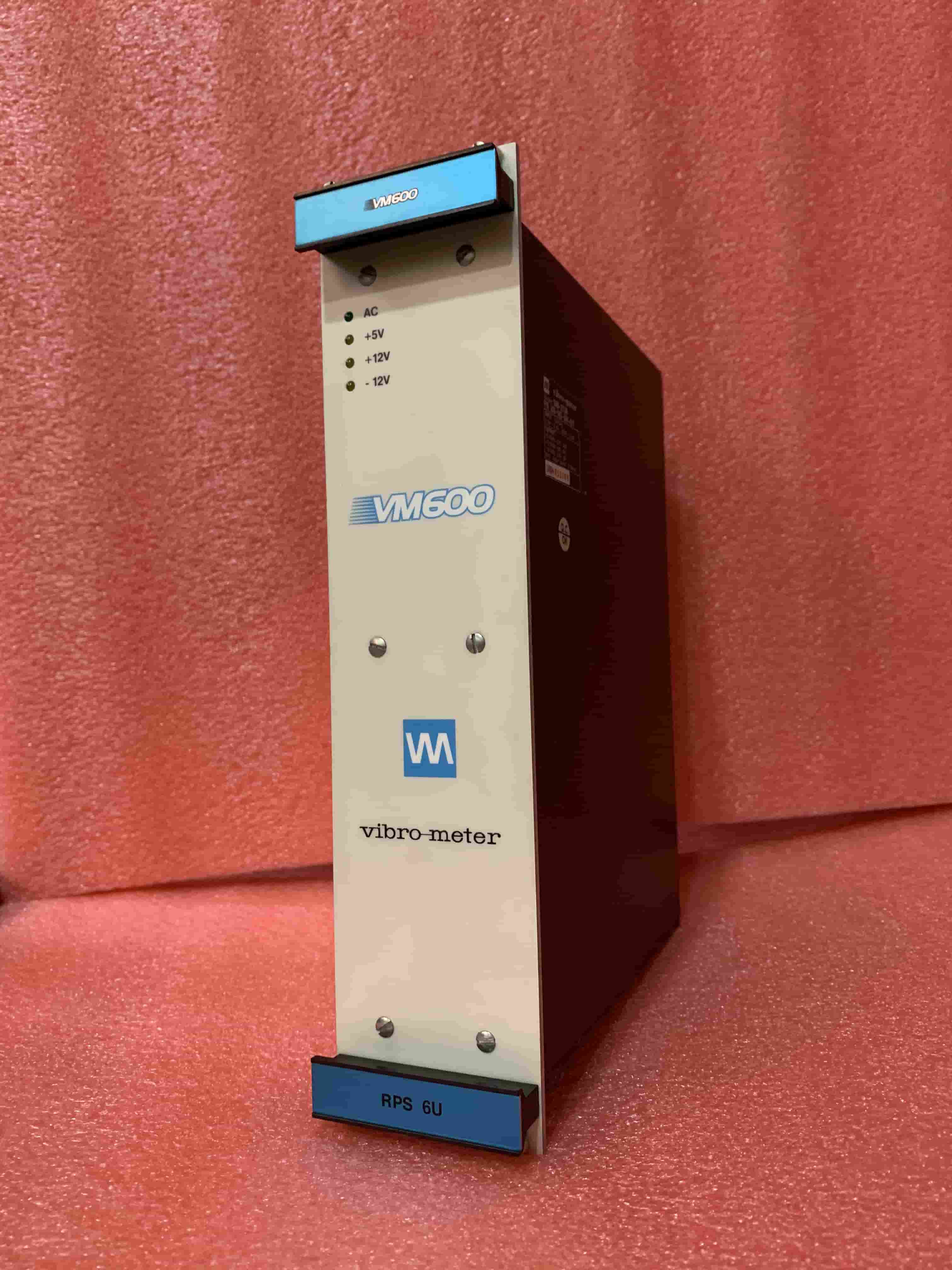

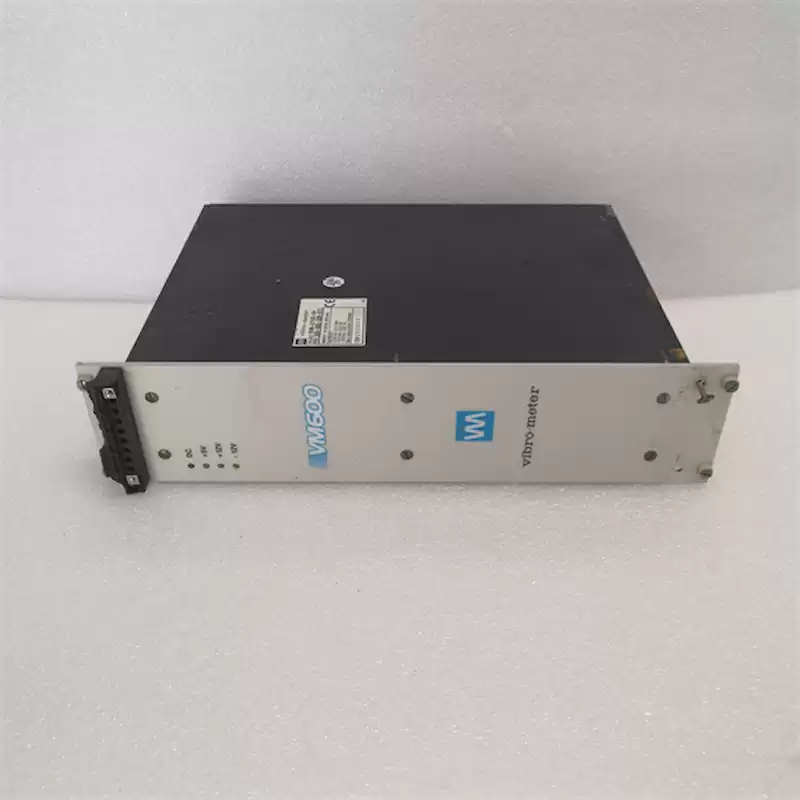

RPS6U 200-582-600-013 rack power supplies
|
| Country of Origin |
Swizerland |
| Dimension |
262mm*60.6mm*190mm |
| Weight |
2.4kg |
1. In 2016, the RPS6U rack power supply was improved to provide a higher output power of 330 W with higher-performance
and higher-efficiency, which required a redesign of the underlying power supply circuitry.
Accordingly, the different versions of the RPS6U rack power supply in use are:
• Later versions of the RPS6U (PNR 200-582-x00-02h or later) that define the power as a total maximum output power
of 330 W, with nominal output (supply) voltages of +5 VDC up to 50 A, +12 VDC up to 8 A and −12 VDC up to 4 A.
Note: The total maximum output power of 330 W is a combination load for all outputs as the +5 VDC and ±12 VDC outputs
are usually not simultaneously loaded to the maximum in practice. For example, if the +5 VDC output is at its maximum
rated load (5.35 V × 50 A = 267.5 W), then the combined loads on the +12 VDC and −12 VDC outputs must not
exceed 62.5 W.
• Earlier versions of the RPS6U (PNR 200-582-x00-01h or earlier) that define the power as a rated power of 300 W,
with nominal output (supply) voltages of +5 VDC up to 35 A, +12 VDC up to 6 A and −12 VDC up to 2 A.
2. In 2021, VM600Mk2 (second-generation) machinery monitoring systems were launched with improved rack modules,
notably the MPC4Mk2 + IOC4Mk2, RLC16Mk2 and CPUMMk2 + IOCNMk2. VM600Mk2 systems use the same system infrastructure
as first-generation VM600 systems, that is, VM600Mk2 is backward compatible with existing VM600 (VM600Mk1) racks and
power supplies.
However, VM600Mk2 versions of the ABE040 system rack (PNR 200-040-100-016) and RPS6U rack power supplies
(PNRs 200-582-200-12h, 200-582-500-12h and 200-582-600-12h) are also available. The VM600Mk2 versions are the same as the
latest VM600 versions, except for the specific artwork/branding/finish. More specifically, the front panels of RPS6U rack
power supplies are bare aluminium for the VM600Mk2 versions (PNRs 200-582-200-12h, 200-582-500-12h and 200-582-600-12h)
and painted for the VM600 versions (PNRs 200-582-200-02h, 200-582-500-02h and 200-582-600-02h).
-
Quality
100% brand new and original
All the goods will be tested before shipment.
-
Warranty
Topteng offers a 12-month warranty from the date of delivery
In the event of non-conforming product (if damaged or incorrect product is received),
Any nonconformity must be reported within 7 days of receipt of goods.
-
Delivery Time
For the in stock items, we will send the order out within 5-7 days after receive the payment.
We can shipping all over the world via DHL,UPS,Fedex and EMS
