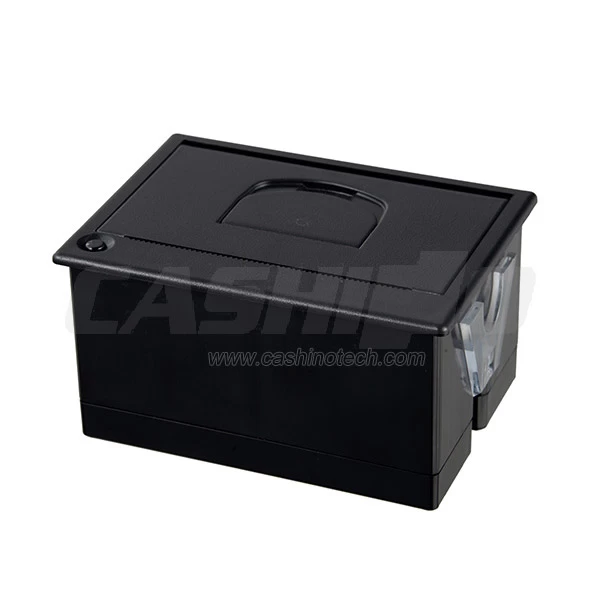

RS232+USB DC5-9V 58mm mini panel thermal receipt printer
Feature:
Interface:RS232+USB
Power supply: DC5-9V
Color:Black/White
Specification:
Print
|
Printing Method
|
Thermal Line
|
Printing Speed
|
50-80mm/s
|
Resolution
|
8 dots/mm, 384 dots/line
|
Effective Printing Width
|
48mm
|
Character
|
Character Set
|
ASCII,GB2312-80(Chinese)
|
Print Font
|
ANK:9x17,12×24,
GBK: 24×24
|
Paper Spec
|
Paper Type
|
Thermal paper
|
Paper Width
|
57.5± 0.5mm
|
Paper Thickness
|
60-85µm
|
Paper Roll Diameter
|
Max: 30mm
|
Reliability
|
MCBF
|
5 million lines
|
Interface
|
RS-232/TTL/USB
|
Insert Depth
|
43 mm
|
Power Supply (Adapter)
|
DC5V-9V / 12V
|
Physical
|
Outline Dimension (WxDxH)
|
82x58x45 mm
|
InstallationPortSize
|
77x53 mm
|
Color
|
Beige / black
|
Environment
|
Operating Temp
|
0°C ~ 50°C
|
Operating Humidity
|
10% ~ 80%
|
Storage Temp
|
-20°C ~ 60°C
|
Storage Humidity
|
10% ~ 90%
|
FAQ:
Q: About samples
A: Samples are available for testing.
Q: Delivery date.
A: All the printers for samples are in stock, can ship it within 2 days after payment received. For bulk order
delivery date approximately 2 weeks.
Q: Payment terms
A: Paypal, western union, T/T in advance, or order in aliexpress.
Q: Warranty
A: One year warranty. During warranty period, the damage caused by non-human factor, CASHINO will be
responsible for the free repair. Overdue warranty period, CASHINO will continue to provide services with
reasonable price to the customer.
