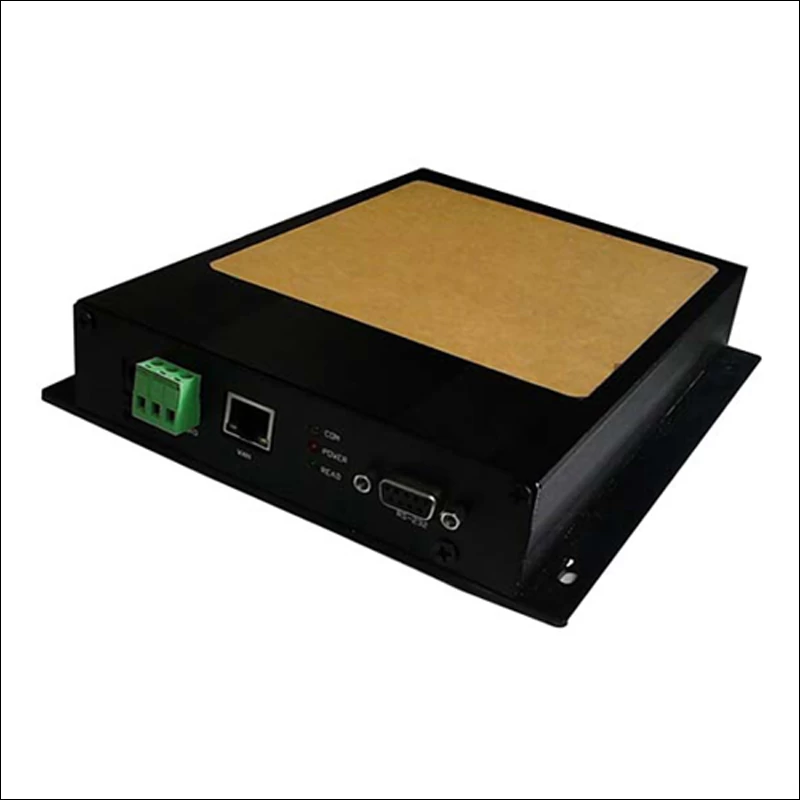

RS232/RS485/WG UHF DESKTOP READER
JT-8200B
1. Reading and writing in equipment limited area above 0-50 CM of the narrow space;
2. Compatible with 6 C or 6 B agreement;
3. Provide setups SDK, and can provide C++, C#, Java VB,VC development routines;
4. Provides automatic reading card and write CARDS DEMO software, very convenient customer hairpin and write CARDS;
5. Support a serial port the firmware update, convenient customization demand special when upgrade firmware update;
6. EPC area, reservations, the user area support locking unlock function, can be used for privacy and security requirements of high occasion;
7 Support adjacent discriminant function, can prevent with a card in short time (1-255 seconds adjustable) upload repeat inside;
8. Supports fast write operation, convenient for reading and writing;
|
Working frequency
|
902～928 MHz or 865~868MHz
|
|
Protocol
|
ISO18000-6C（EPC G2）
|
|
Software
|
Provide C #, VC ,VB,C++,JAVA development of routines
|
|
SDK
|
Provides SDK with programming samples
|
|
Communication port
|
RS232, RJ45, WG
|
|
Reading Range
|
0-50CM (test with 9662 card)
|
|
Power smoothness:
|
<0.5 DB
|
|
RF power range
|
0~30 dBm, Adjustable by software
|
|
Input/output
|
1 road trigger input
2 road relay output(Customized)
|
|
Working temperature
|
-45°C~+95°C (-49°F~ 167°F)
|
|
Storage Temperature:
|
30°C~+65°C (-58°F~ 185°F)
|
|
Power
|
DC 7.5V-12V,3A
|
|
Weight
|
2KG
|
|
Size
|
280×180×35MM
|
Vehicle intelligent management of hairpin, write CARDS effect: the parking lot, highway no parking charge, customs clearance, automatic weighing, etc
Personnel management of entrance guard or hairpin, write CARDS effect: the school gate in and out management, the factory in and out management.
