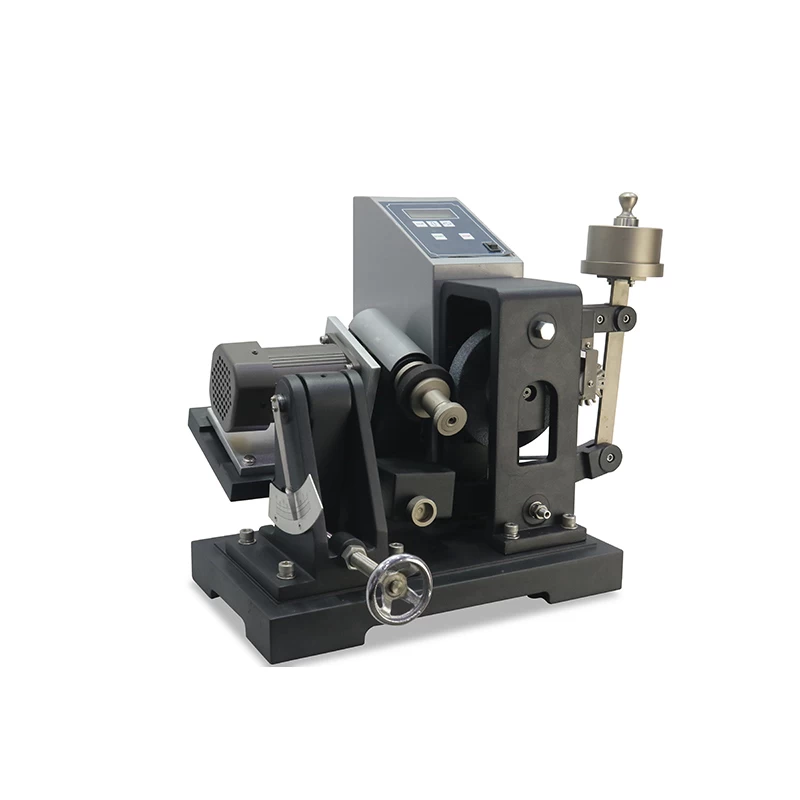

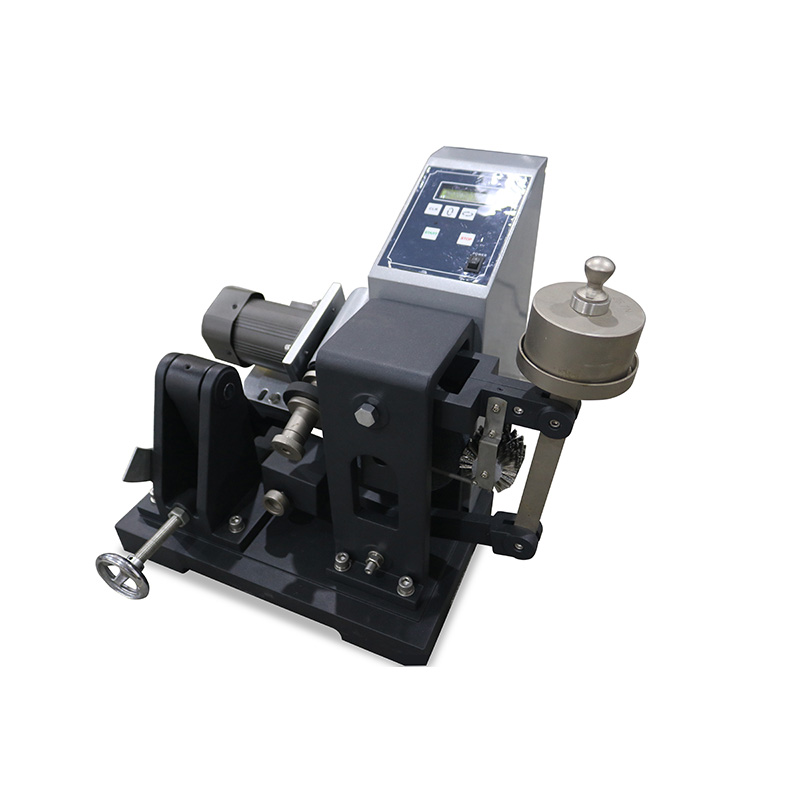

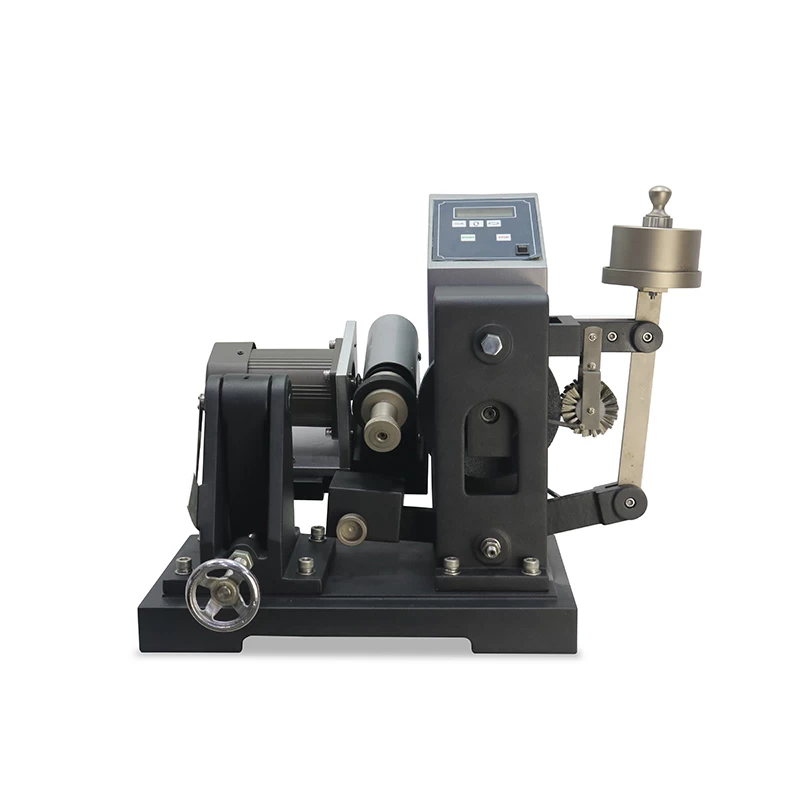

Rubber Akron Abrasion Tester GT-KB04
Product Introduction
|
Application:
The Akron Abrasion Tester is used to determine wear resistance of vulcanized rubber and elastic material products, like shoes sole, tires, vehicle tracks, by measuring its wear volume caused by rubbing between specimen and sandwheel. And it need to test with balance.
Standards:
GB/T1689, JIS K6264, BS-903-A9 Method B
|

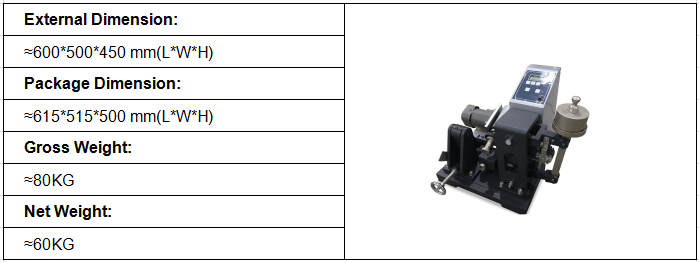

Dimensions
Feature
1. Body paint baking processed, easy for mainteance.
2. Electronic automatical counter can set wear revolutions and it will automatically stop when it reaches set revolutions.
Key Specifications
Model
|
GT-KB04A
|
GT-KB04B
|
GT-KB04C
|
Sand Wheel
|
Outer Diameter Φ150mm, 25mm(w), granularity 36#, Abrasive material: Alumina
|
Rubber wheel
|
Outer dia. 68mm,
Thickness 12.7mm,
Perimeter 220mm
|
Outer dia.60mm,
Inner dia.12.7mm,
Thickness 13mm
|
Outer dia. 63.5mm,
Inner dia.12.7mm,
Thickness 12.5mm
|
Rubber axle inclination angle range
|
0~35° adjustable（test angle 15° or 25°）
|
Rubber axle rotating speed
|
76±2 rpm
|
75±5rpm or 250±5rpm
|
250±5 rpm
|
Load
|
26.7±0.2N
|
27.0N or 44.1N
|
45N
|
Counter
|
LCD, 0~99,999,999
|
Dimensions ( L x W x H )
|
60 × 50 × 45cm
|
Weight
|
60 kg
|
Power
|
1∮, AC220V, 50/60Hz
|
Standards
|
GB/T1689
|
JIS K6264
|
BS-903-A9 Method B
|
Standards accessories
|
Rubber wheel 1pc
|
Grinding wheel 1pc
|
Weights 1set
|
Application Industry
All kind of the below materials can be tested on the Akron Abrasion Tester GT-KB04
