Rubber Band Machine Plastic Rubber Band Machinery

It is used to extrude rubber semi-finished products like tyre tread ,inner tube ,wires & cables , rubber strips ,capsule etc.

  • Automatic GradeSemi-automatic
  • ConditionNew
  • Weight5T
  • Power(W)20KW
  • ApplicationPipe, Profile
  • VoltageCUSTOMIZED
  • Dimension(L*W*H)15mx2mx3m
  • CertificationCE ISO
  • output35kg/h
  • Plastic ProcessedTPU, TPR, SBS
  • Screw DesignSingle-screw
  • Warranty1 Year
Facebook Twitter Pinterest LinkedIn 分享
Rubber Band Machine Plastic Rubber Band Machinery

Applied raw material: TPU PTR

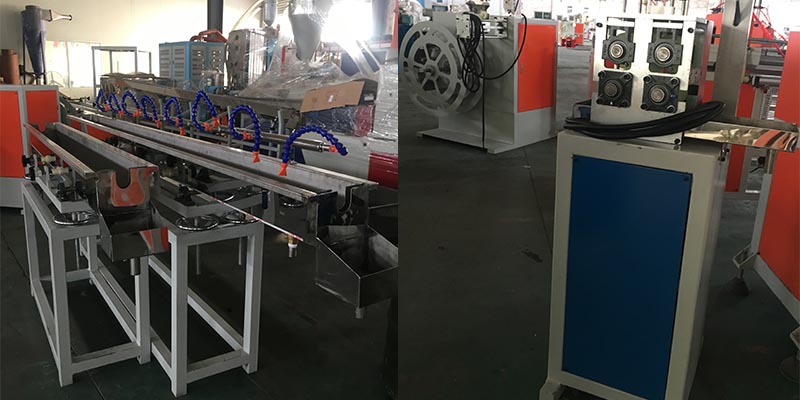

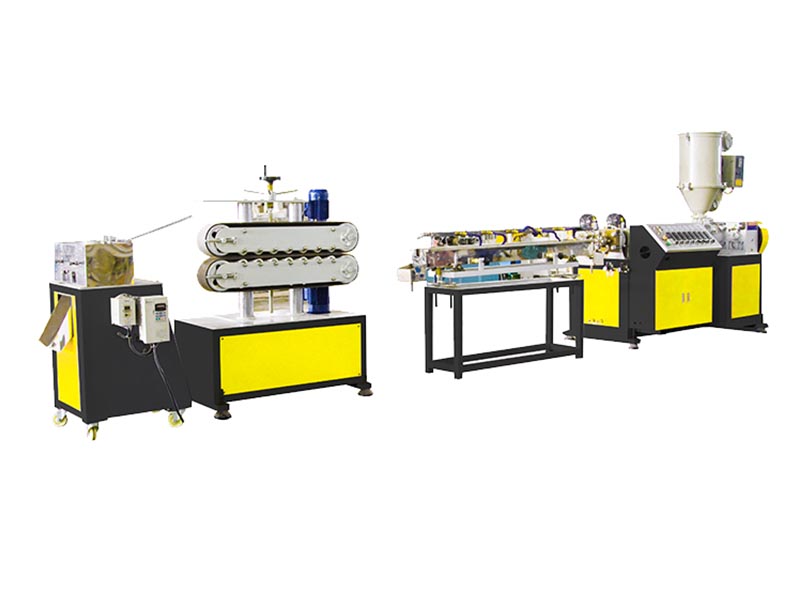

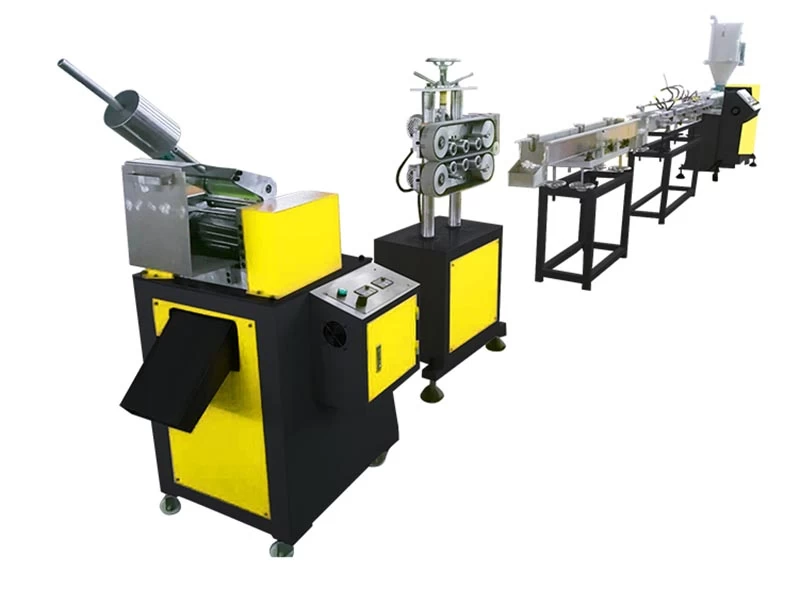

Production line including: main extruder, mould, water tank, paul-off machie, cutter.
Application : producing rubber band for package, hain
Key Selling Points: High Productivity
Screw diameter (mm): 55
After-sales Service Provided: Video technical support, Field installation, commissioning and tra
Machine color: Custmer's Requirement
Applicable Industries: ELASTIC BAND

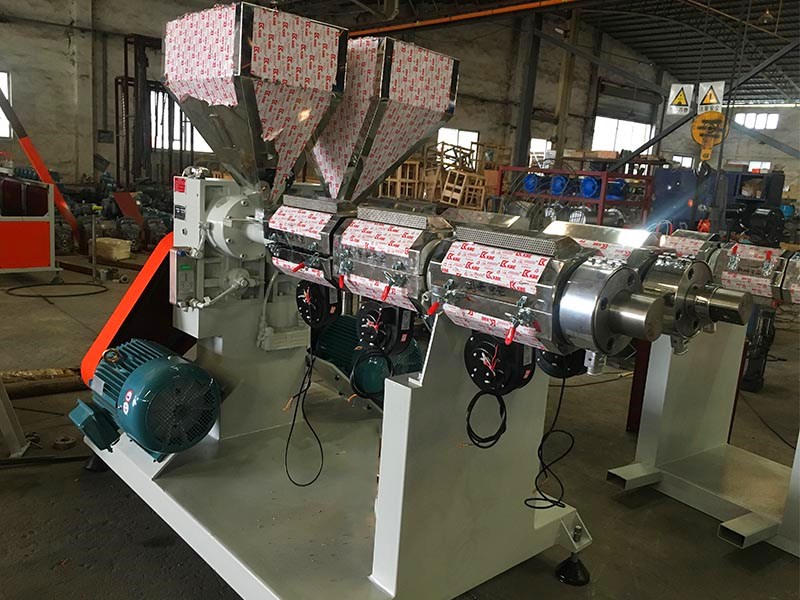

Rubber band extruder Features:
1.Speed reducer adopts arc gear driving and equipped with reinforced lubrication system ,with high drive efficiency and less noise .

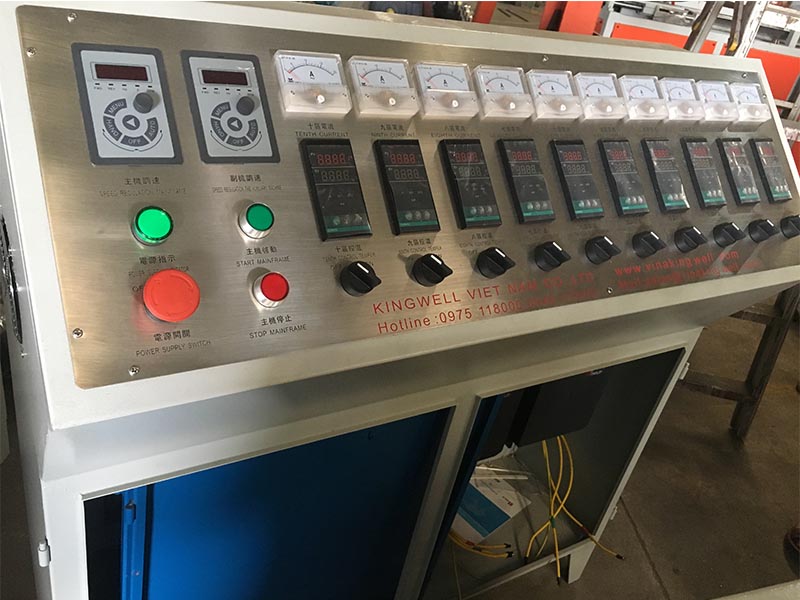

2.Temperature control is realized by hot water circulating device as auto sectional control.
3.This machine is driven by DC motor and speed regulation is fetured as continuous and stable .
4.This machine could match many heads for inner tube ,tread ,wires and cables,and rubber supply ,so user could mention special requirement in order as demand .
5.Machine body has spiral channel ,with good heat conductive effect .And in feeding section feeding roll is equipped to reinforce the feed capability.
6.Screw and bushing are all adopted nitrided steel and with nitrogen treatment ,so it has enough strength and good wear resistance.Screw structure is of the double threads main/subsidiary screw ,with excellent plasticizing and self-cleaning.
