Introduction

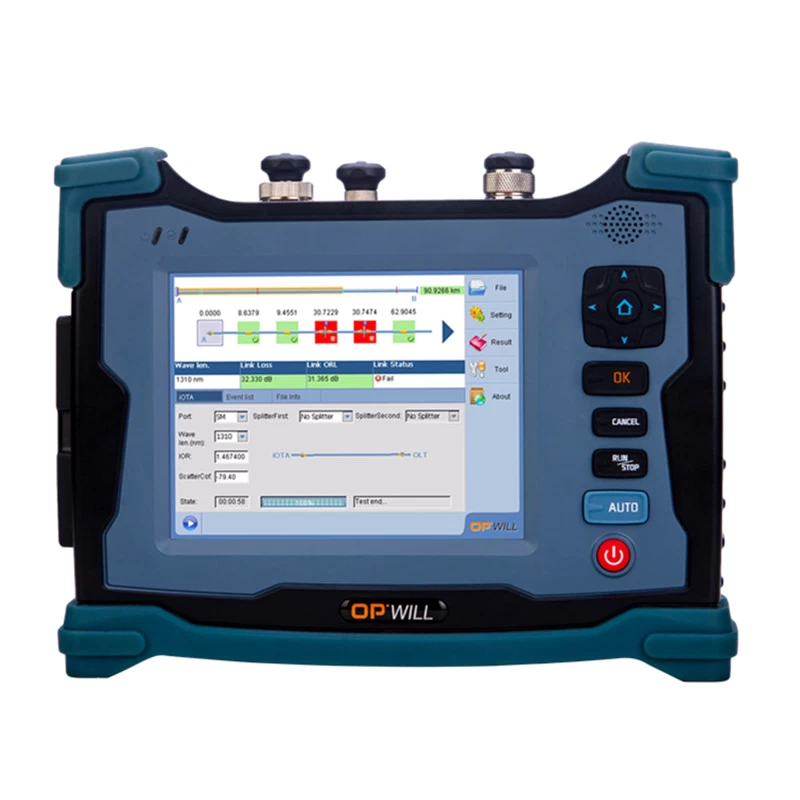

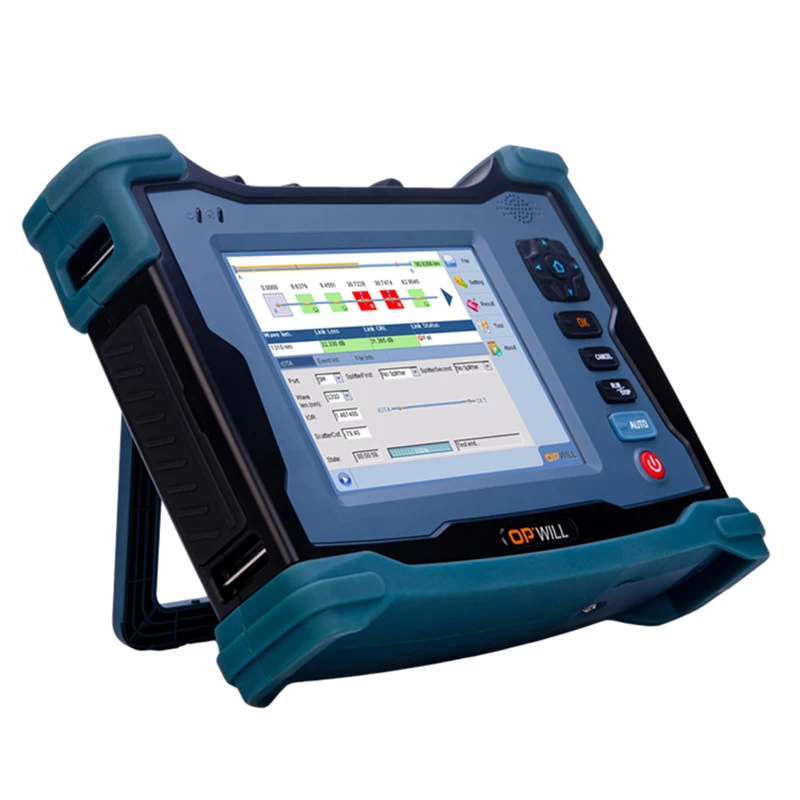

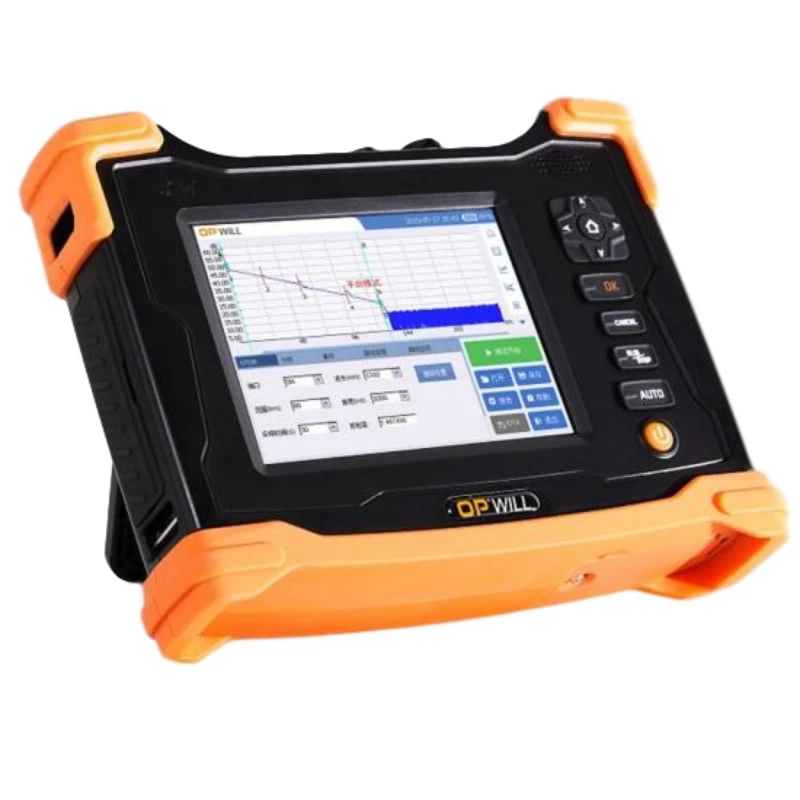

FTS510 Series OTDR Tester is entirely new pad product. It has rapid start technology and supports automatic and real-time test mode, which can guarantee engineers to examine and detect optical fibres or cables in core, metro, and access network with high flexibility, efficiency, and convenience. Meanwhile, its operation system interface has high similarity with Android GUI, significantly simplifies the test procedure
Features
-
ALL-IN-ONE with OTDR,
iOTA, iNET, PM, LS, VFL and Fibre Scope.
-
More comprehensive
test features with higher performance-to-price ratio.
-
5.6-inch touchscreen,
outdoor enhancement.
-

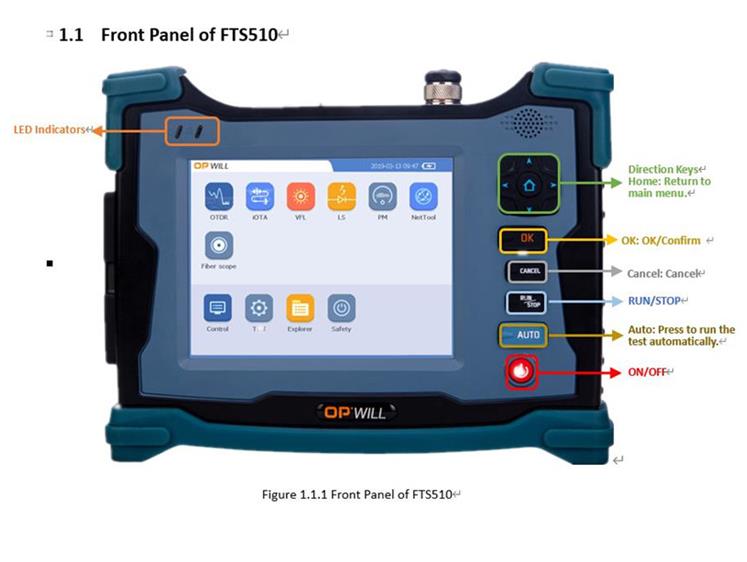

Friendly keystroke
designed for easy, friendly user interface and easy to use.
-
Lightweight, rugged,
flexible for field testing.
-
Fast start-up, high
resolution colour touch display.
-
Novice mode with automatic trace diagnostics, one-button setup and events detection.
-
Markers for distance, attenuation, reflectance, and splice loss.
-
Dynamic range up to 45dB.
-
SR-4731.sor file formats.
-

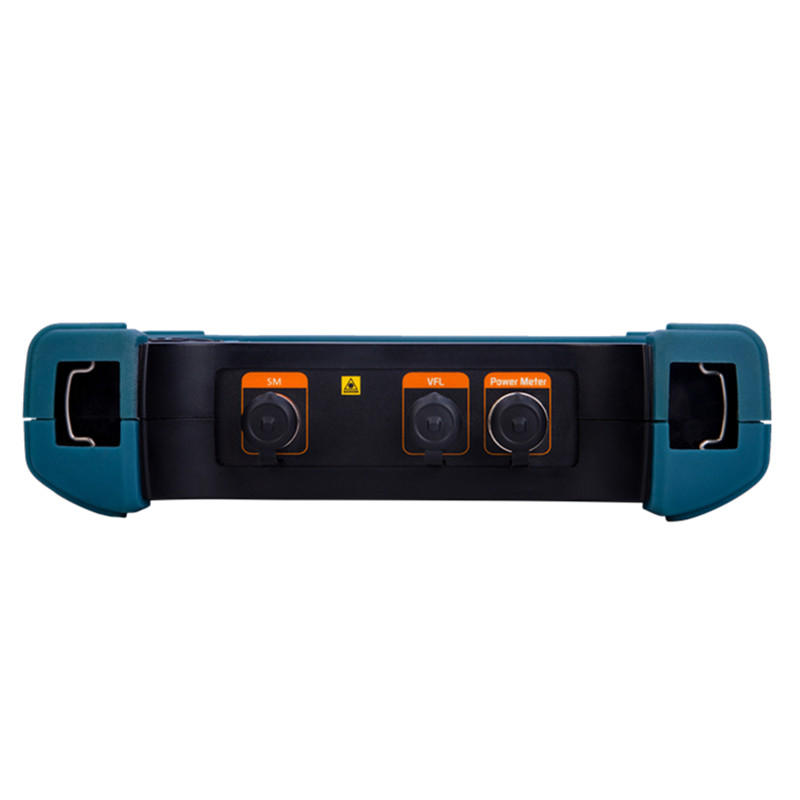

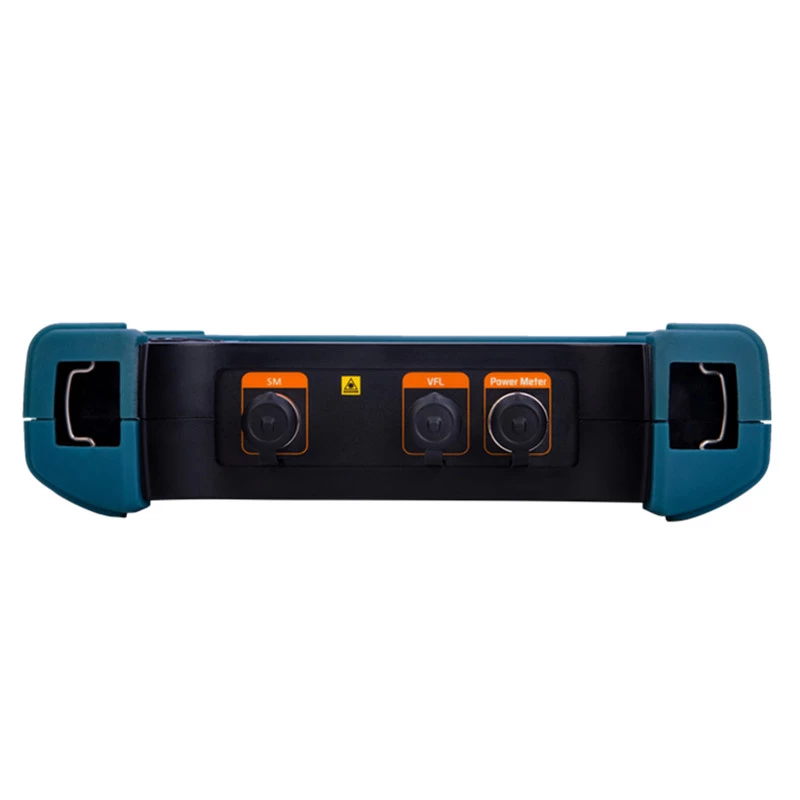

Support VFL.
-
Support iOTA (Optional).
-
Support power meter (Optional).
-
Support light source (Optional).
-
Event dead zone is less than 0.8m.
-
Attenuation dead zone is less than 4m.
-
The minimum sampling resolution is 4cm and the sampling points up to 256,000.
-
Remote measurement via RJ45 connection using OPWILL OTDR Desktop software.
Module
|
Product
|
Wavelength
|
Dynamic Range
|
|
Regular
OTDR
|
|
FTS510-E-ac
|
1310/1550nm
|
45/43dB
|
|
FTS510-M-ac
|
1310/1550nm
|
43/41dB
|
|
FTS510-H-ac
|
1310/1550nm
|
40/39dB
|
|
FTS510-N-ac
|
1310/1550nm
|
35/34dB
|
|
FTS510-L-ac
|
1310/1550nm
|
32/30dB
|
|
PON
OTDR
|
|
FTS510-H-acd
|
1310/1550/1625nm
|
40/39/38dB
|
|
FTS510-H-abcd
|
1310/1490/1550/1625nm
|
40/37/39/38dB
|
|
FTS510-H-ace
|
1310/1550/1650nm
|
40/39/38dB
|
|
FTS510-H-abce
|
1310/1490/1550/1650nm
|
40/37/39/38dB
|
Specifications
|
GENERAL SPECIFICATIONS
|
|
Screen
|
5.6 inch TFT touch screen (640×480)
|
|
Other Interface
|
|
USB
|
USB, type A port, 2
|
|
Ethernet
|
10/100M Base-T, RJ45
|
|
Other Parameters
|
|
Storage
|
16G
|
|
Size
and Weight
|
161(H) x 210(W) x 46(D)mm; 1.0kg
|
|
Temperature
|
Operating: -10°C to 50°C; Storage: -40°C to 70°C
|
|
Relative
Humidity
|
0% to 95% (non-condensing)
|
|
EMC
|
EN55022/CIPSR22; EN61000-3-2; EN55024
|
|
Battery and Power Supply
|
|
Battery
|
· Rechargeable Li-Lon
battery;
· Working time: 5 hours;
· Charging time: <3
hours (typical: 25°C)
|
|
Power Supply
|
· Input: 100-240V AC,
50-60Hz, 2A;
· Output: 15V DC, 2A
|
