Rutile Titanium Dioxide TiO2 single crystal substrate

Rutile (TiO2) large birefringence, large refractive index, is a method for spectral prism devices such as optical isolators and the polarization beam splitter and a very good material

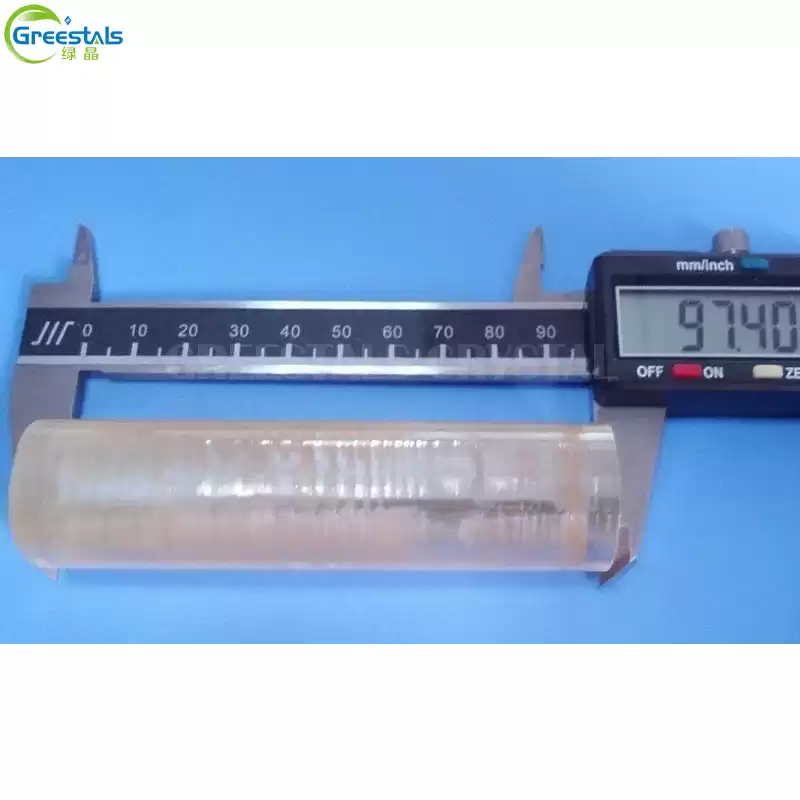

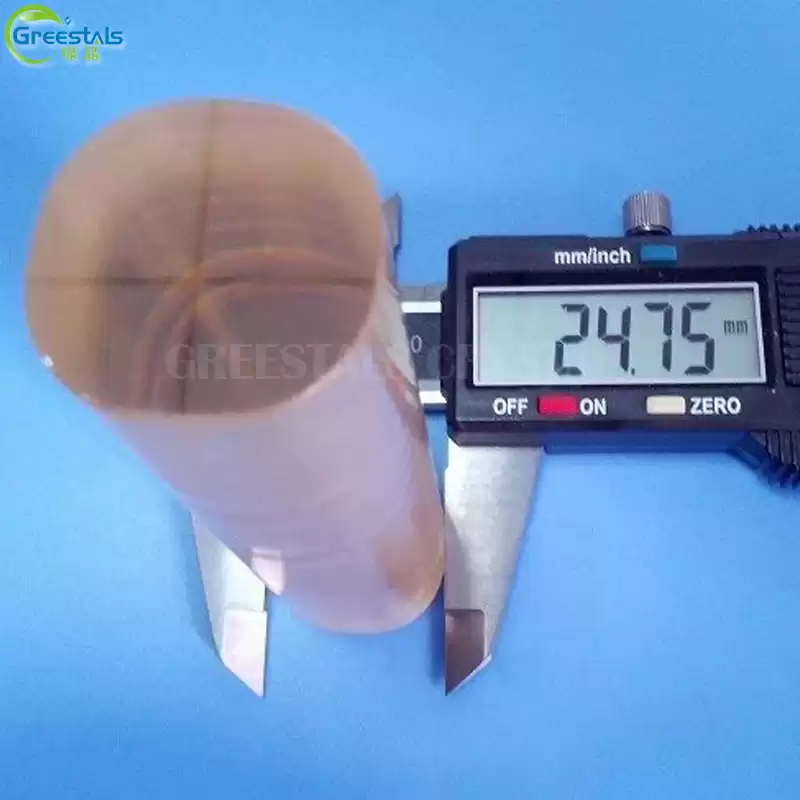

  • Max SizeDia25mm
  • Orientation<100>、<110>、<111>
  • Package100 clean bag，1000 exactly clean bag
Facebook Twitter Pinterest LinkedIn 分享
Product Name: Rutile (TiO2) crystal substrate

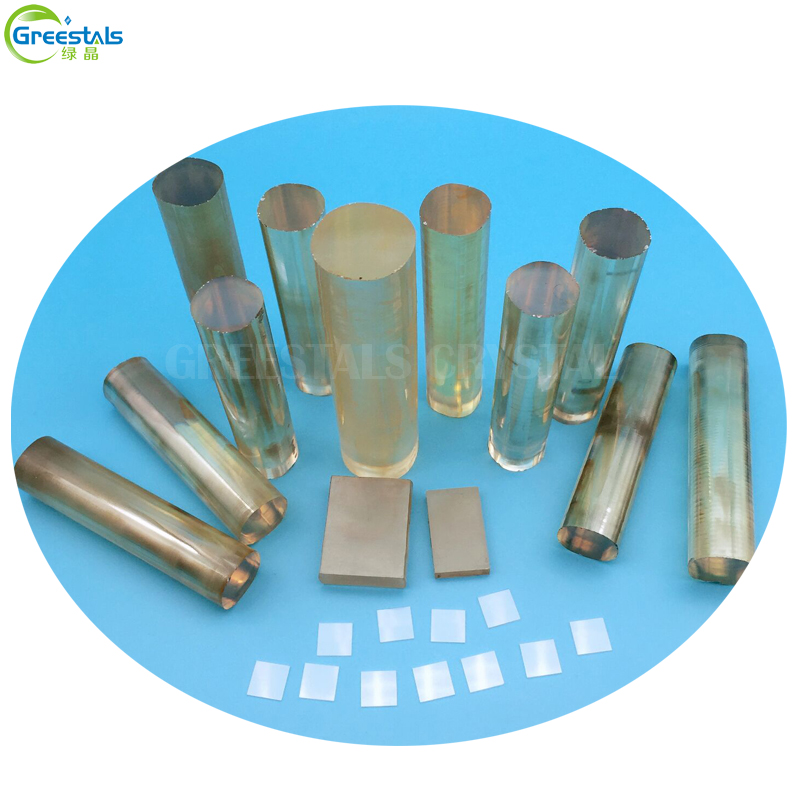

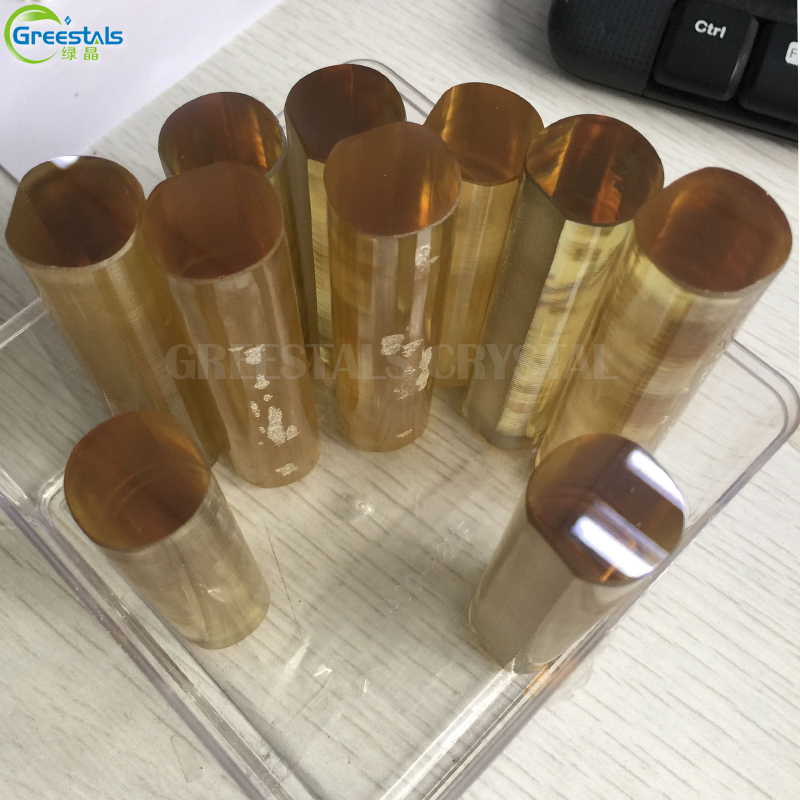

Product Description: Rutile (TiO2) large birefringence, large refractive index, is a method for spectral prism devices such as optical isolators and the polarization beam splitter and a very good material, compared with YVO4, TiO2 crystal better physical and chemical stability, Our high quality single crystal TiO2 rods and polished components widely used in optical isolators and special mirror.
Technical parameters:
Crystal structure
Quartet a = 4.5936 Å, c = 2.9582 Å,
Growth method
Floating zone method, the Japanese production
Mp 1840 o C
Density
4.26g/cm 3
Hardness
7 mohs
Heat capacity
0.17 (25 o C) Cal. / (G. Deg)
Coefficient of linear expansion
a: 7.14x10 -6 / k c: 9.19x10 -6 / k
Index of refraction
n 0 = 2.47 n e = 2.73 at 1.3 um
Through
0.5-4.5 um
Thermo-optic coefficient
dh / dT: a: -0.72 x10 -6 / K c:-0.42x10-6 / K
Specifications:

Typical dimensions: 2.6x2.6 x10 mm; 4x4x10 mm; 10x10x0.5 mm;

Size + / - 0.02 mm; flatness <l/10; roughness <10/5;

Parallelism <15 "; vertical <15"

Note: Can be customized according to the special orientation and size.

Standard Packaging: 1000 clean room, 100 clean bag or single box packaging
