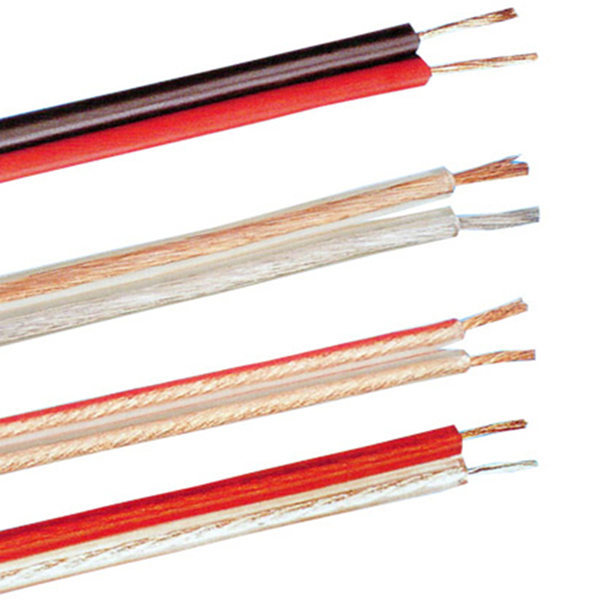

RVH Multi-Conductor High-Conductivity Copper Speaker Cable
PRODUCTS NAME
RVH Multi-Conductor High-Conductivity Copper Speaker Cable
PRODUCTS KEYWORDS
RVH, speaker cable, sound cable, golden and silvery cables, gold & silver copper sound cable,Hi-Fi audio cables, power amplifier connecting cable, wire and cables, factory whoesale price.
PRODUCTS APPLICATION
RVH Multi-Conductor High-Conductivity Copper Speaker Cable. Connect all parts of the audio system and transmit audio and video signals, this is the function of the audio cables.
Many people think that the audio cable is only an accessory in the audio system, and there is no need to be so particular. Just find a few. Of course, the sound system can also produce sound and pictures, but the effect has been discounted. Because, the transmission process of audio signals from the disc player to the power amplifier and then to the speaker, or the transmission process of video signals from the disc player to the TV and to the projector, has been affected by the poor transmission performance of the wire itself and external electromagnetic interference. These effects weaken and pollute these effects, so that the sound cannot produce high fidelity sound, and the TV and the projector cannot reproduce reality. Therefore, it is necessary for those who are using or will use the audio system to know more about the audio line, make reasonable investment in it, and use it correctly, so as to ensure the best effect of the audio system.
PRODUCTS STRUCTURE

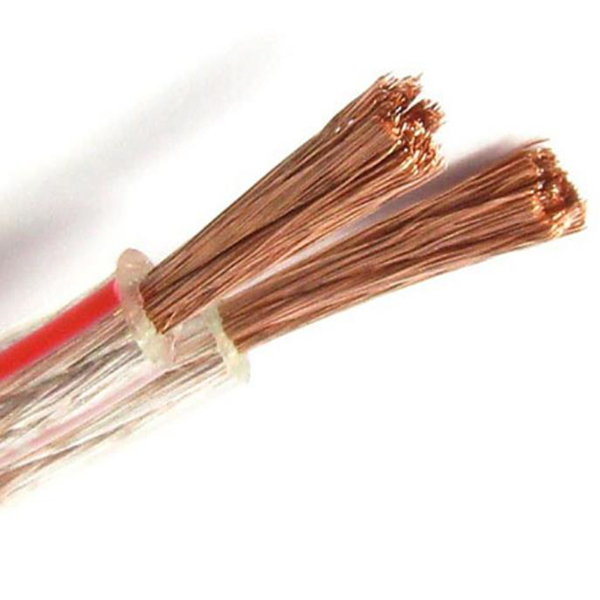

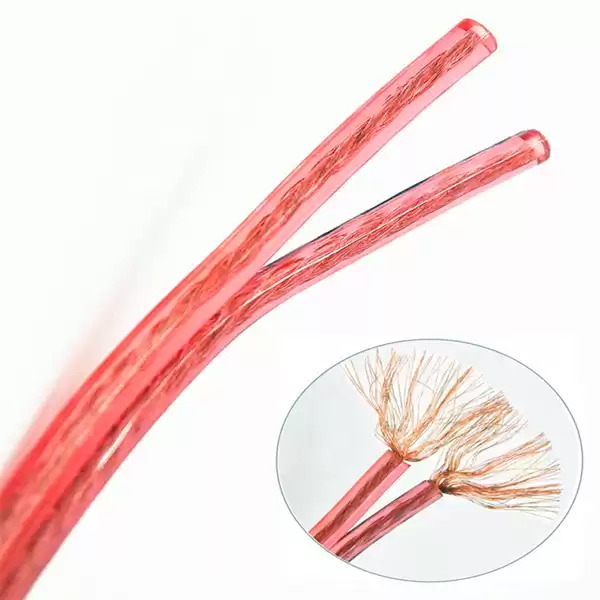

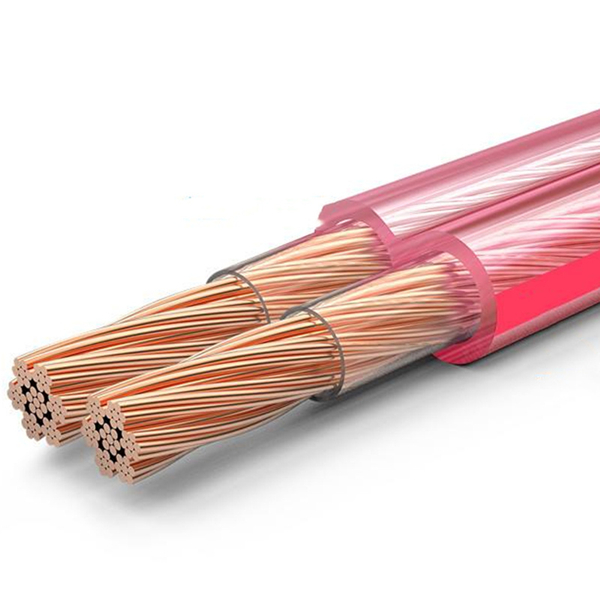

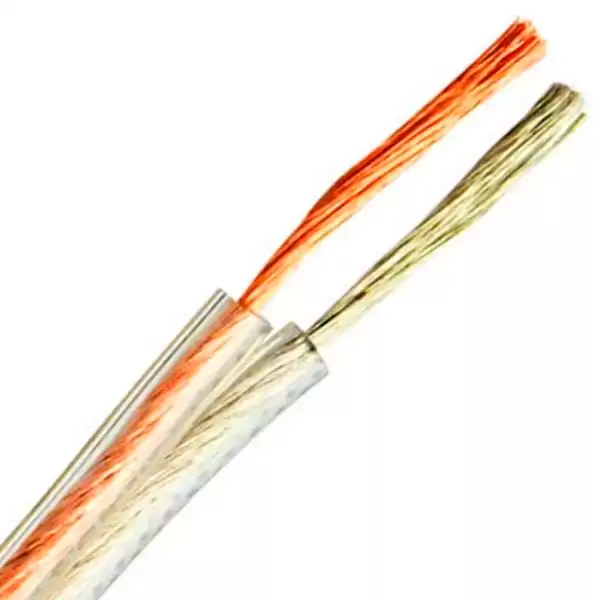

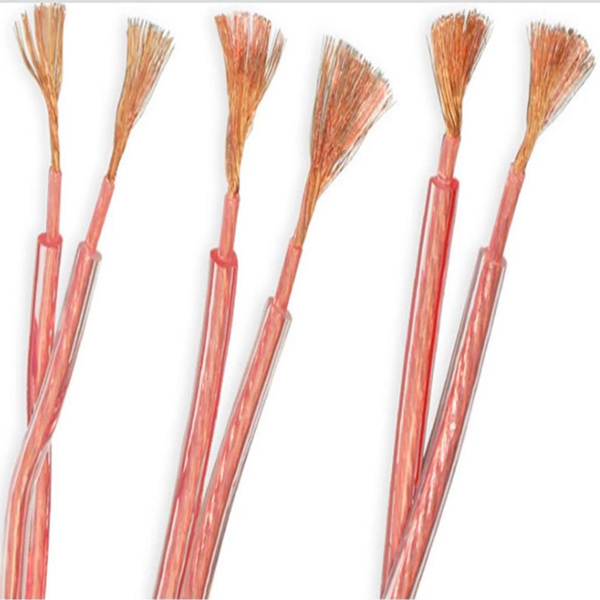

RVH Multi-Conductor High-Conductivity Copper Speaker Cable:
---Conductor Material
Plain annealed copper wire, stranded Class 6.
---Insulation Material
Transparent PVC (polyvinyl chloride).
---Sheath Material
Non-sheath.
aPRODUCTS DIMENTIONS
|
Description of Cable
|
Products Main Technical Sheet
|
|
Products Name
|
RVH Multi-Conductor High-Conductivity Copper Speaker Cable
|
|
Conductor Material
|
Plain annealed copper wires, stranded Class 6.
|
|
Conductor Structure
|
2C x 300/0.10 mm.
|
|
Insulation Material
|
85P Flexible PVC (Polyvinyl Chloride).
|
|
Insulation Thickness
|
0.9 mm.
|
|
Insulation Colour
|
Transparent.
|
|
Sheath Material
|
Non-sheath.
|
|
Conductor Cross-section
|
2 x 2.5 mm2.
|
|
Core Number
|
Two cores, 2 cores, 2C.
|
|
Out Diameter
|
4.2 x 8.4 mm.
|
|
Voltage Rate
|
300/300V (U0/U).
|
|
About Net Weight
|
48 kg/km.
|
|
Production Standard
|
YD/T 1019-2014, JB/T 8734-2016, GB/T 5023-2008, IEC 60227, .
|
|
Products Packing
|

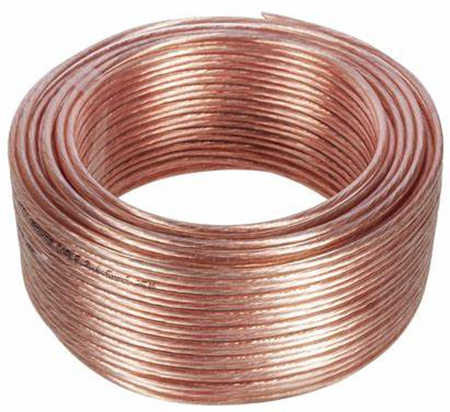

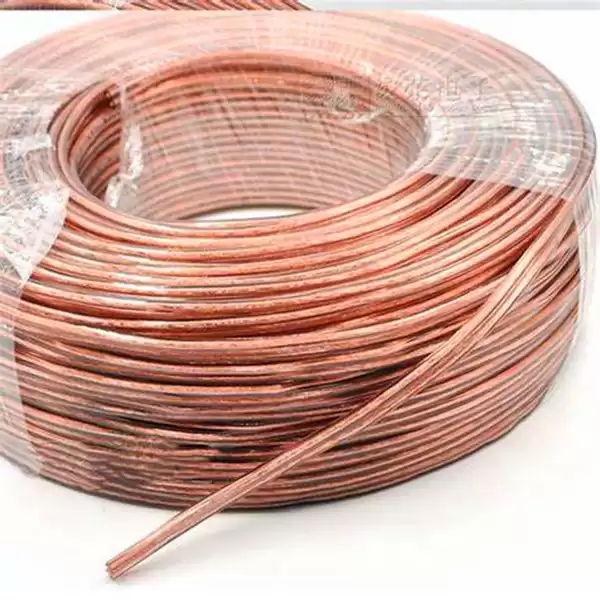

100 Meters per roll, or according to the customers requirement.
|
