RVVP Flexible PVC Insulated with Screened and
Shielded Electrical Wire and Cables
PRODUCTS NAME
RVVP Flexible PVC Insulated with Screened and Shielded Electrical Wire and Cables.
PRODUCTS KEYWORDS
RVVP, H05VVC4V5-F, YSLY-CY, shielded cables, screened cables, flexible cable, tranded copper wire, pvc insulated cable, electrical wire, electric cable, wire and cables.
PRODUCTS APPLICATION
RVVP Flexible PVC Insulated with Screened and Shielded Electrical Wire and Cables, the cables are used inside as power or control cables for installations and connections on machine tools or static or dynamic apparatus, suitable for communication, audio, broadcasting, sound system, anti-theft alarm system, intelligent automation system, automatic meter reading system, fire control system.
RVVP Flexible PVC Insulated with Screened and Shielded Electrical Wire and Cables, Flexible signal cable used for surveillance and control of static or mobile devices in industry, electric plants or offices. Screen of braided copper wires serves as protection against electromagnetic impacts and signal disturbances. Resistant to medium mechanical loads, used for fixed or limitedly mobile installations (not permanently mobile) without strain. Installed in dry or damp premises, outdoor application only under protection against UV-irradiation. Not intended for laying in ground or water.
PRODUCTS STRUCTURE

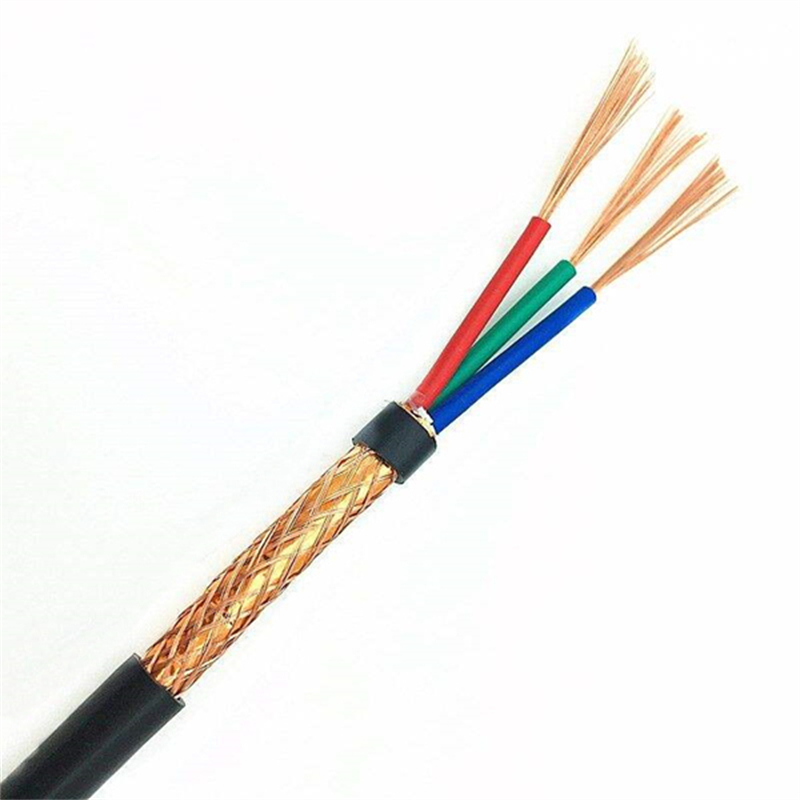

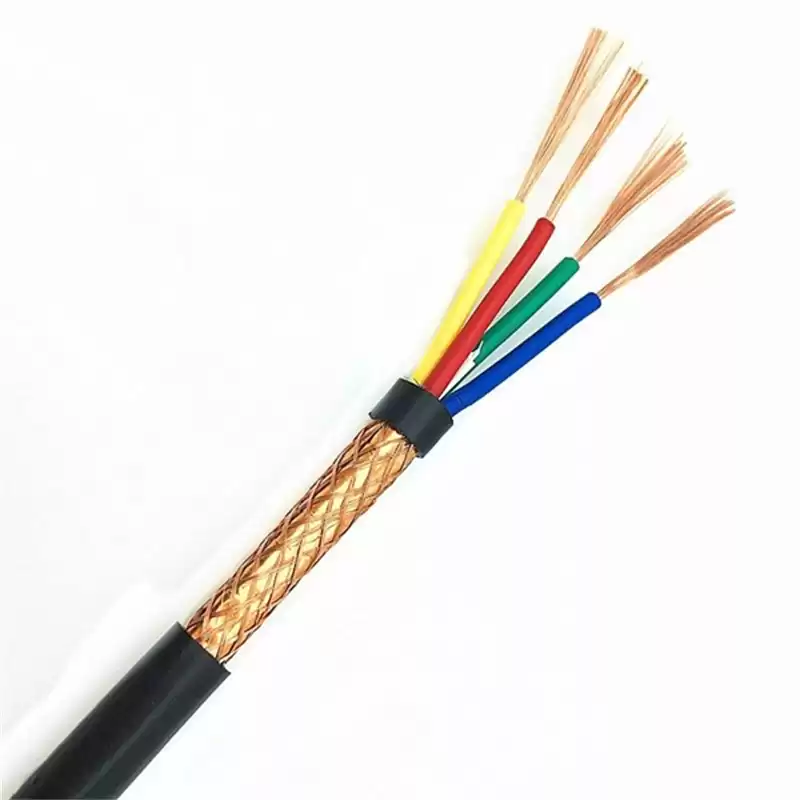

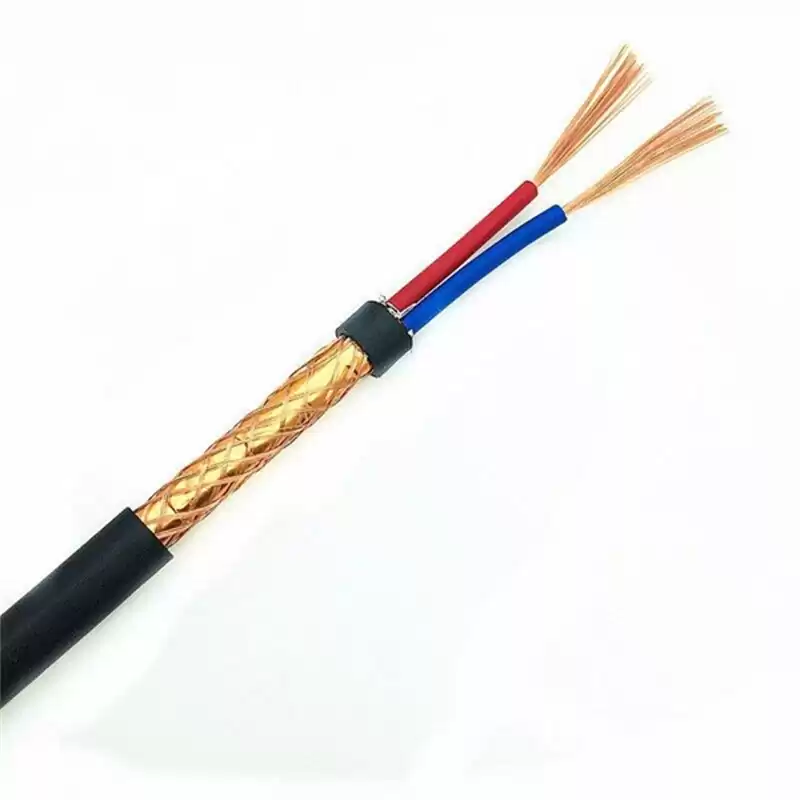

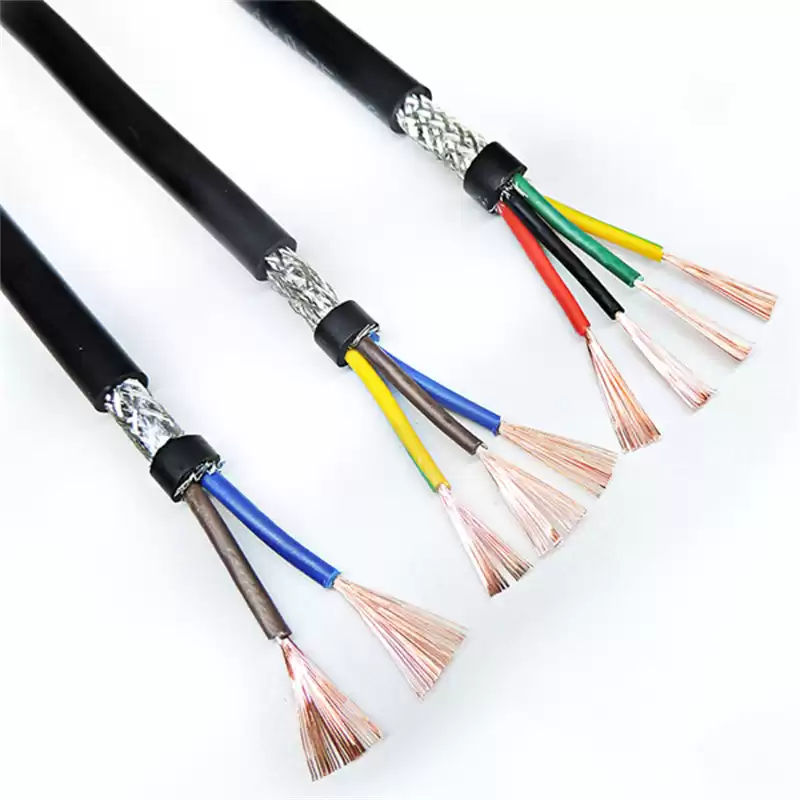

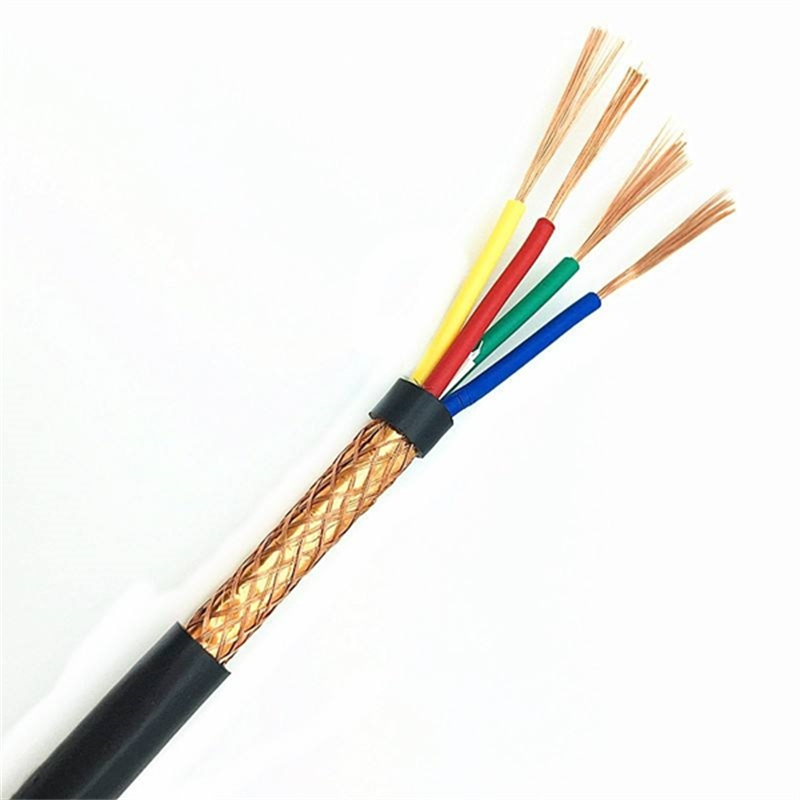

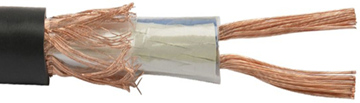

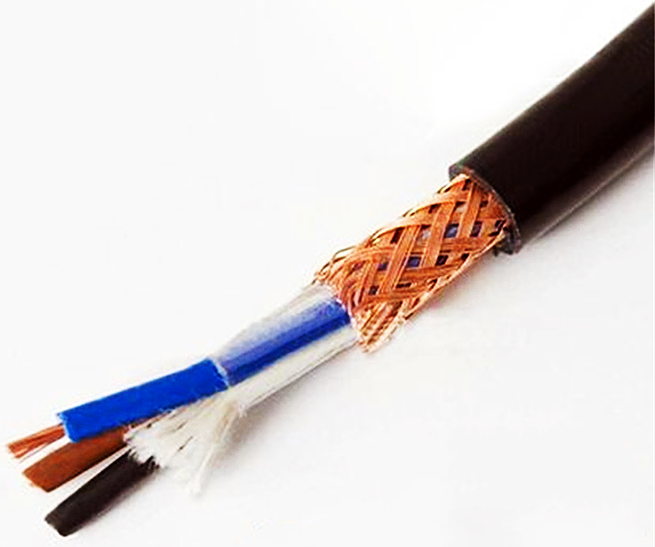

RVVP Flexible PVC Insulated with Screened and Shielded Electrical Wire and Cables, the structure as below:
---Conductor Material
Plain annealed copper wire, stranded Class 5.
---Insulation Material
40P Flexible PVC (polyvinyl chloride).
---Screened Material
Aluminum Foil Tape.
---Shielded Material
Plain annealed copper wires, stranded Class 6.
---Sheath Material
85P Flexible PVC (polyvinyl chloride).
---Core Number

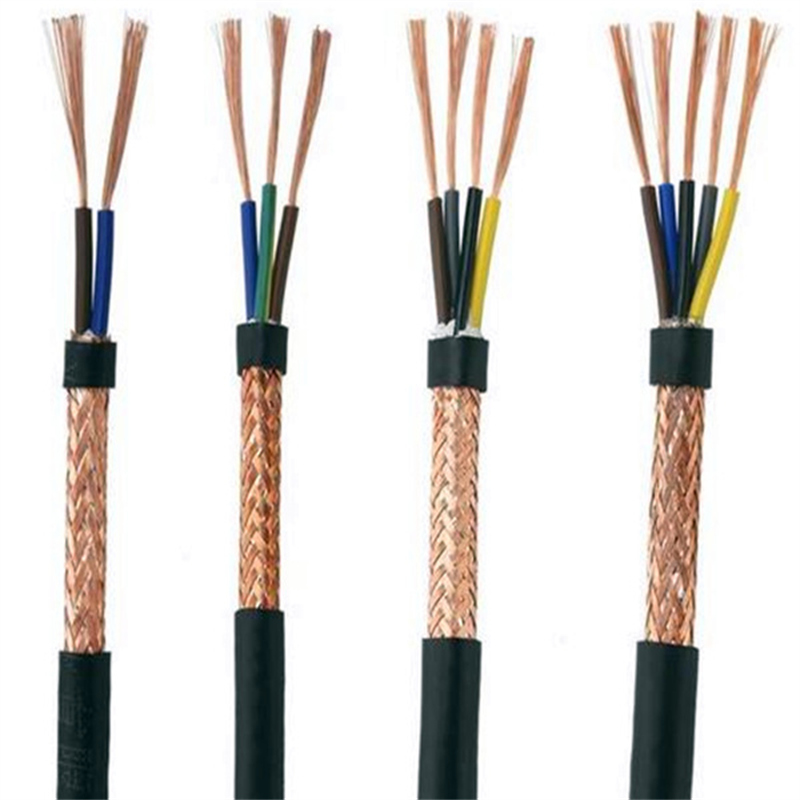

2-5 Cores, 2C-5C.
aPRODUCTS DIMENTIONS
|
Description of Cable
|
Products Main Technical Sheet
|
|
Products Name
|
RVVP Flexible PVC Insulated PVC Sheath with
Screened and Shielded Electrical Wire and Cables.
|
|
Conductor Material
|
Plain annealed copper wires, stranded Class 5.
|
|
Conductor Structure
|
3C x 84/0.20 mm.
|
|
Insulation Material
|
45P Flexible PVC (Polyvinyl Chloride).
|
|
Insulation Thickness
|
0.7 mm.
|
|
Insulation Colour
|
Brown, blue, yellow/green; or others.
|
|
Screened Material
|
Aluminum Foil Tape.
|
|
Screened Coverage
|
100%.
|
|
Shielded Material
|
Plain annealed copper wires, stranded Calss 6.
|
|
Shielded Coverage
|
More than 80%.
|
|
Sheath Material
|
85P Flexible PVC (Polyvinyl Chloride).
|
|
Sheath Thickness
|
1.0 mm.
|
|
Sheath Colour
|
Black, white, grey, or others.
|
|
Conductor Cross-section
|
3 x 2.5 mm2.
|
|
Core Number
|
Three cores, 3 cores, 3C.
|
|
Out Diameter
|
12.6 mm.
|
|
Voltage Rate
|
300/500V (U0/U).
|
|
About Net Weight
|
175 kg/km.
|
|
Products Packing
|
100 Meters per roll, or according to the customers requrement.
|
|
Production Standard
|
JB/T 8734-2016, GB/T 5023-2008, IEC 60227, BS 6500,
DIN VDE 0281, DIN VDE 0250, EN 50525-2-11.
|
|
Max. Conductor DC
Resistance at 20℃ in Air
|
7.98 Ω/km.
|
|
Min. Insulated
Resistance at 70℃
|
0.009 MΩ.km.
|
|
Max. Ampacity
at 40 ℃ in air
|
21A.
|
